Cisco 800 Series Hardware Installation Guide

1-80
Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 860, 880, 890 Series

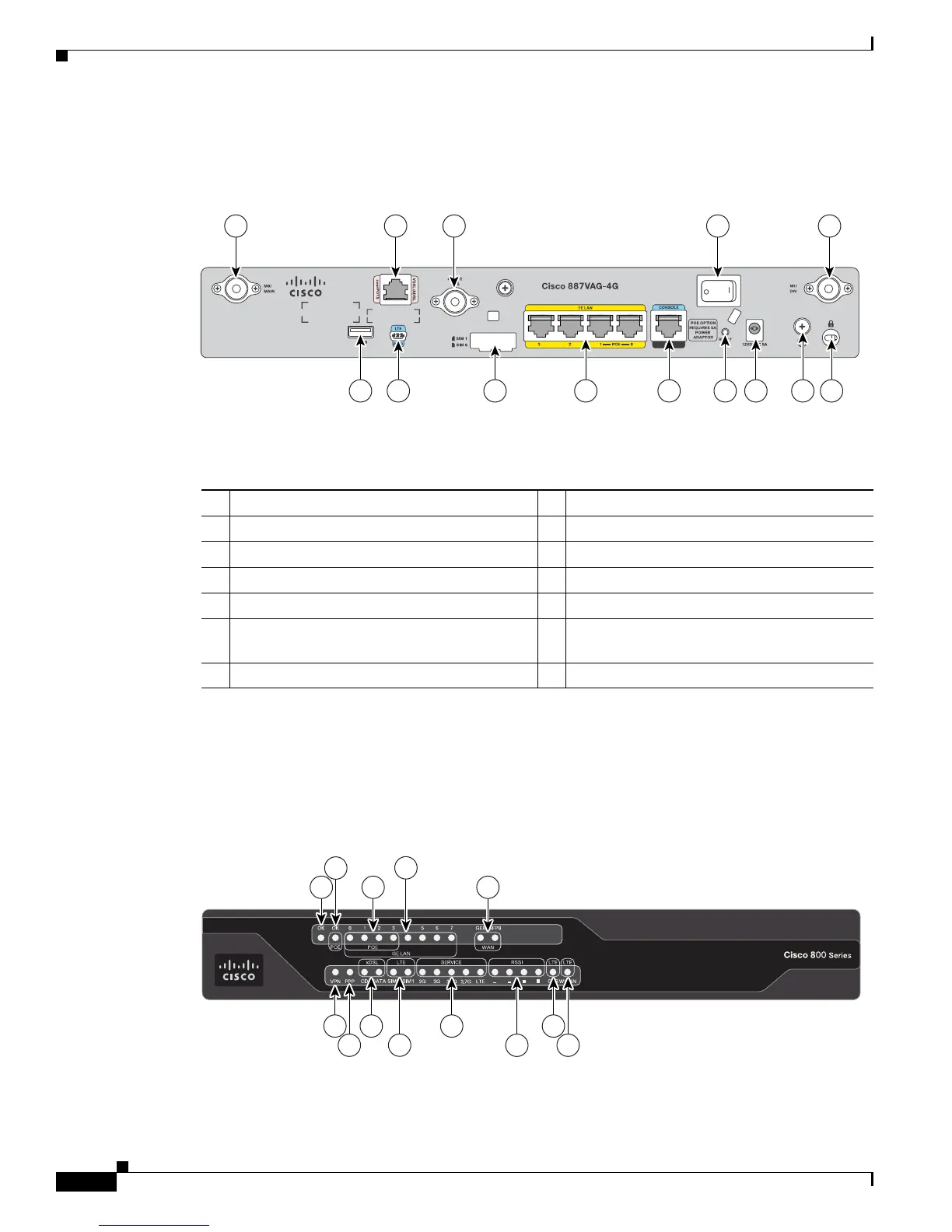

Figure 1-47 shows the back panel of the Cisco C887VAG-4G ISR.
Figure 1-47 Back Panel of the Cisco C887VAG-4G ISR
Cisco C896VAG-LTE Integrated Services Router
Figure 1-48 shows the front panel of the Cisco C896VAG-LTE ISR.
Figure 1-48 Front Panel of the Cisco C896VAG-LTE ISR
372523
1 2 3 4 5 7 986
10111214 13
1 USB port 8 Earth ground connection
2 4G port 9 Kensington security slot
3 SIM slots 10 4G antenna connector—M1/DIV
4 4-port 10/100 Ethernet switch 11 Power switch
5 Serial port—Console or auxiliary 12 Active GPS antenna connector
6 Reset button 13 Primary WAN port—VDSL or ADSL over
POTS
7 Power connector 14 4G antenna connector—M0/MAIN
372530
6
7
8
9
10
11
12
13
1 3
2
4
5
