Cisco 800 Series Hardware Installation Guide

1-84
Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 860, 880, 890 Series
For information on installing Cisco C890 Series Routers, see the following link:
http://www.cisco.com/c/en/us/td/docs/routers/access/800/hardware/installation/guide/800HIG.html
Cisco C897VAG-LTE Integrated Service Router

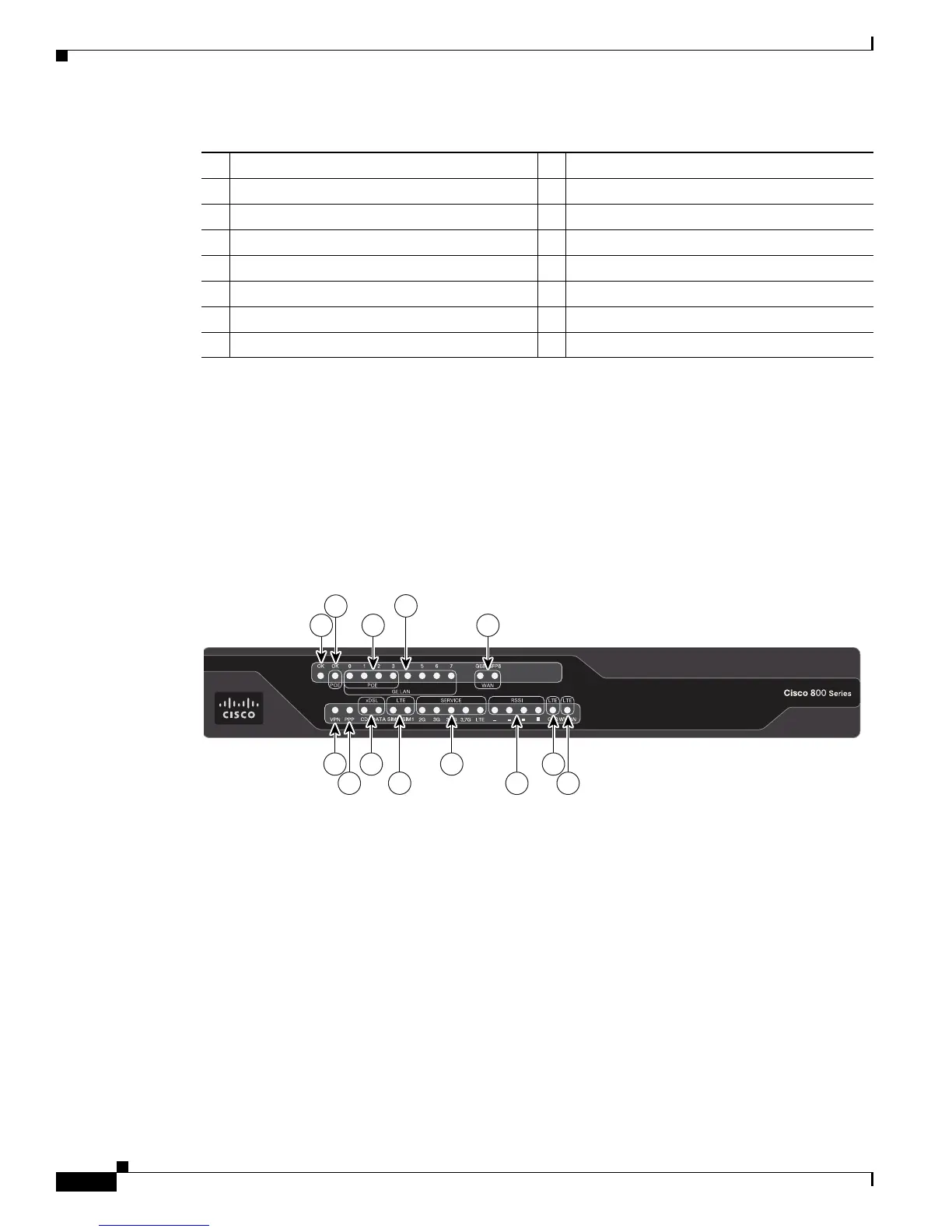

Figure 1-50 shows the front panel of the Cisco C897VAG-LTE ISR.
Figure 1-50 Front Panel of the Cisco C897VAG-LTE ISR
1 GE WAN interface 9 On/Off switch
2 SFP port 10 Reset button
3 4G port 11 Earth ground connection
4 USB port 12 Kensington security slot
5 SIM slots 13 4G antenna connector—M1/DIV
6 8-port Gigabit Ethernet switch 14 Active GPS antenna connector
7 Console / Auxiliary port 15 VDSL or ADSL over ISDN
8 Power connector 16 4G antenna connector—M0/MAIN
372531
1 3
2
4
5
6
7
8
9
10
11
12
13

Cisco 800 Series Specifications

General

Model	Cisco 800 Series
Category	Network Router
VPN Support	Yes
Firewall	Yes
Dimensions	Varies by model
Processor	Varies by model
Memory	Varies by model
Operating System	Cisco IOS
WAN Ports	Varies by model
LAN Ports	Varies by model
WAN Interfaces	Varies by model
LAN Interfaces	Fast Ethernet or Gigabit Ethernet
