Cisco 800 Series Hardware Installation Guide

2-30
Cisco Integrated Services Router Hardware Installation Guide
Chapter 2 Installing the Router
Installing the Cisco 810 ISR
Installing the Router Using the Configurable Low Profile DIN Mount
If space is limited between the DIN rail and the enclosure cover, the Configurable Low Profile DIN
Mount can be utilized to mount the router flat against the DIN rail. It can also be configured in three
different ways to allow router cabling to exit from the bottom, right or left.

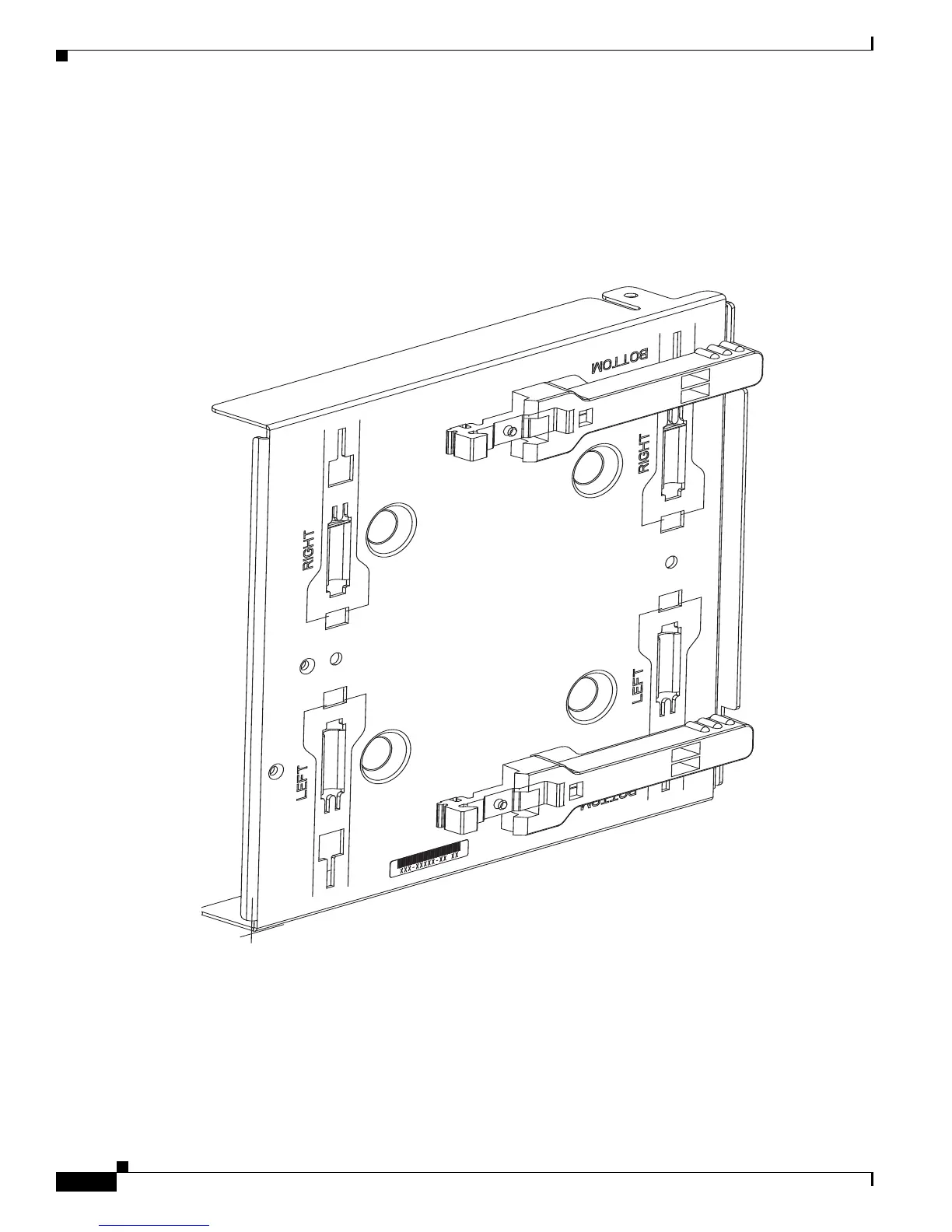

Figure 2-26 Configurable Low Profile DIN Mount standard configuration
391198

Cisco 800 Series Specifications

General

Model	Cisco 800 Series
Category	Network Router
VPN Support	Yes
Firewall	Yes
Dimensions	Varies by model
Processor	Varies by model
Memory	Varies by model
Operating System	Cisco IOS
WAN Ports	Varies by model
LAN Ports	Varies by model
WAN Interfaces	Varies by model
LAN Interfaces	Fast Ethernet or Gigabit Ethernet
