Cisco Integrated Services Router Hardware Installation Guide
Chapter 2 Installing the Router
Installing the Cisco 810 ISR

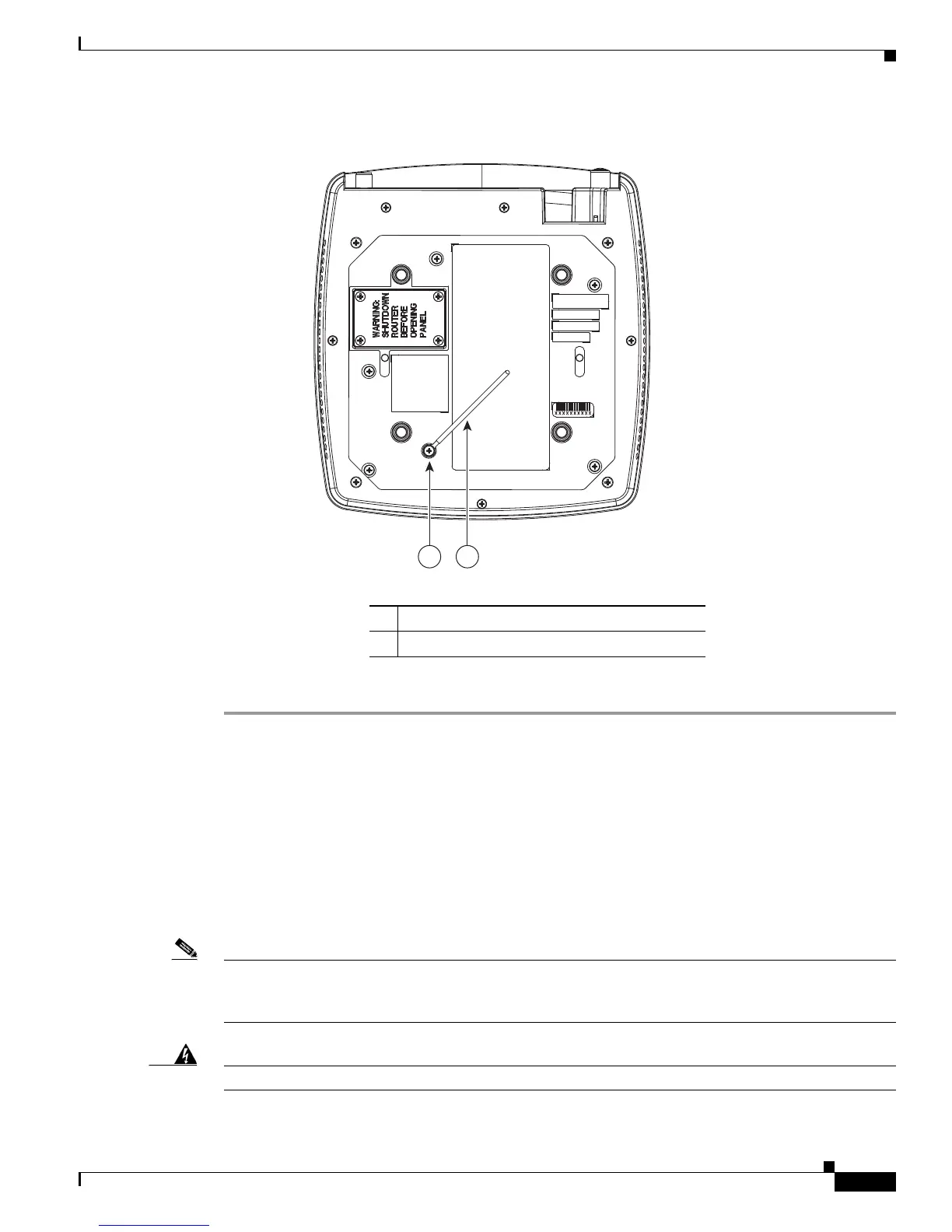

Figure 2-17 Connecting the Ring Lug onto the Grounding Point
Step 7 Connect the ring lug to the router grounding point and reinstall the same 6-32 screw.
Installing the Cisco 819 ISR
This section describes the equipment and the procedures for successfully installing the Cisco 819 ISR
and contains the following sections:
• Equipment, Tools, and Connections, page 2-20
• Installing the Router, page 2-22
• Mounting the DC Power Supply, page 2-37
Note For compliance and safety information, see the Regulatory Compliance and Safety Information
Roadmap that ships with the router and the Regulatory Compliance and Safety Information for Cisco 800
Series Routers.
Warning Read the installation instructions before connecting the system to the power source. Statement 1004
1 2
302791
1 6-32 ground screw
2 Ground wire
