Cisco 800 Series Hardware Installation Guide

1-102
Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 860, 880, 890 Series

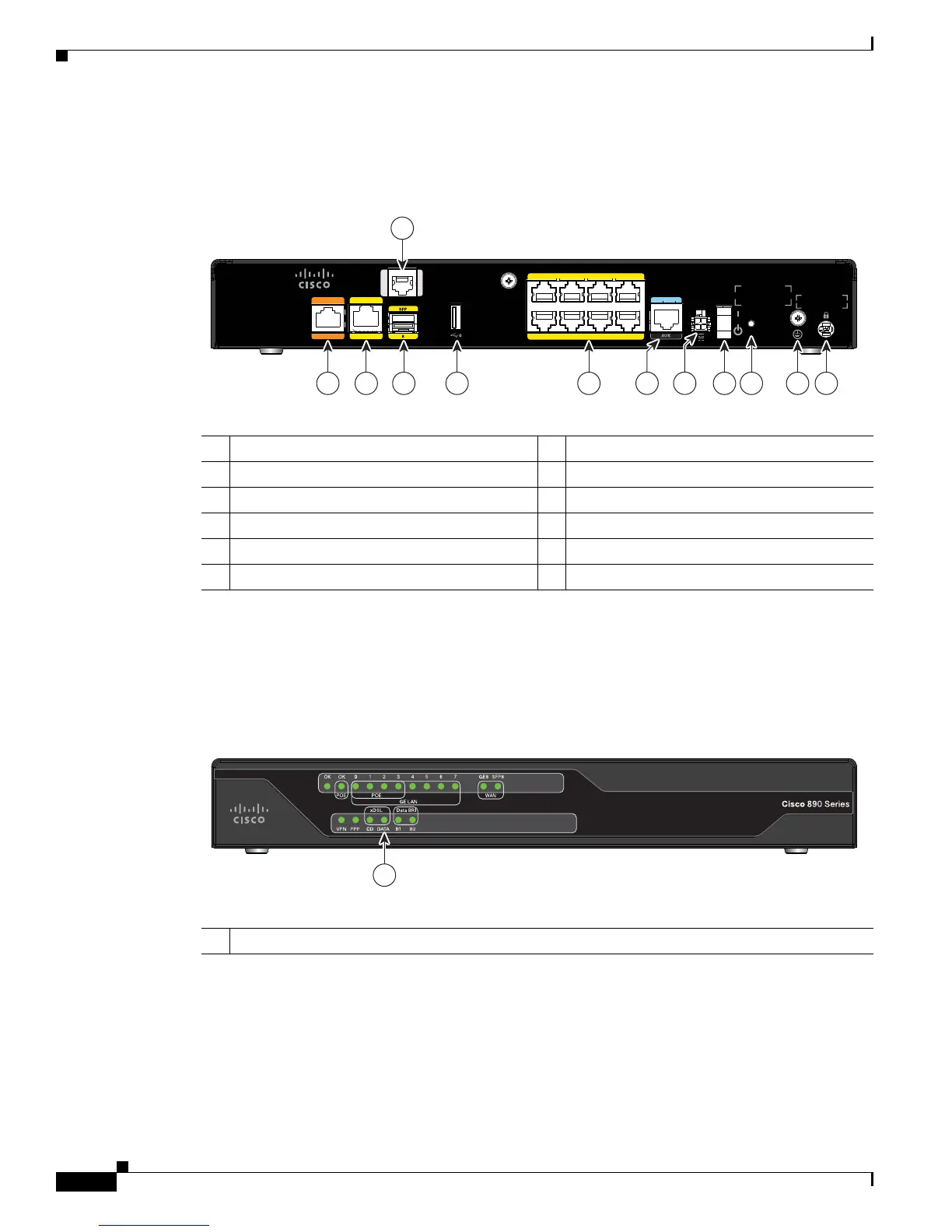

Figure 1-61 shows the back panel of the Cisco 896VA Router.
Figure 1-61 Back Panel of the Cisco 896VA Router
Figure 1-62 shows the front panel of the Cisco 896VA and the Cisco 897VA routers.
Figure 1-62 Front Panel of the Cisco 896VA and Cisco 897VA Routers
7 6 GELAN 5 4
3 2 POE 1 0
0
ISDN
8
GE WAN
54VDC 1.2A
12VDC 2.5A
VDSL/ADSL
overISDN
CONSOLE
RESET
Cisco 896VA
12
1 2 3 4 5 8 9 10 11
6 7
344766
1 ISDN 7 Power connector
2 GE WAN interface 8 On/Off switch
3 SFP port 9 Reset button
4 USB port 10 Earth ground connection
5 8-port Gigabit Ethernet switch
1
11 Kensington security slot
6 Console/Auxiliary port 12 VDSL / ADSL over ISDN
1. Ports 0 through 3 can be configured as POE, which is an optional feature for this model. If this feature is not configured with
the factory order, you must order and install it to enable the PoE function.
1
344765
1 LEDs

Cisco 800 Series Specifications

General

Model	Cisco 800 Series
Category	Network Router
VPN Support	Yes
Firewall	Yes
Dimensions	Varies by model
Processor	Varies by model
Memory	Varies by model
Operating System	Cisco IOS
WAN Ports	Varies by model
LAN Ports	Varies by model
WAN Interfaces	Varies by model
LAN Interfaces	Fast Ethernet or Gigabit Ethernet
