Chapter 2 Installing the Router
Installing the Cisco 810 ISR

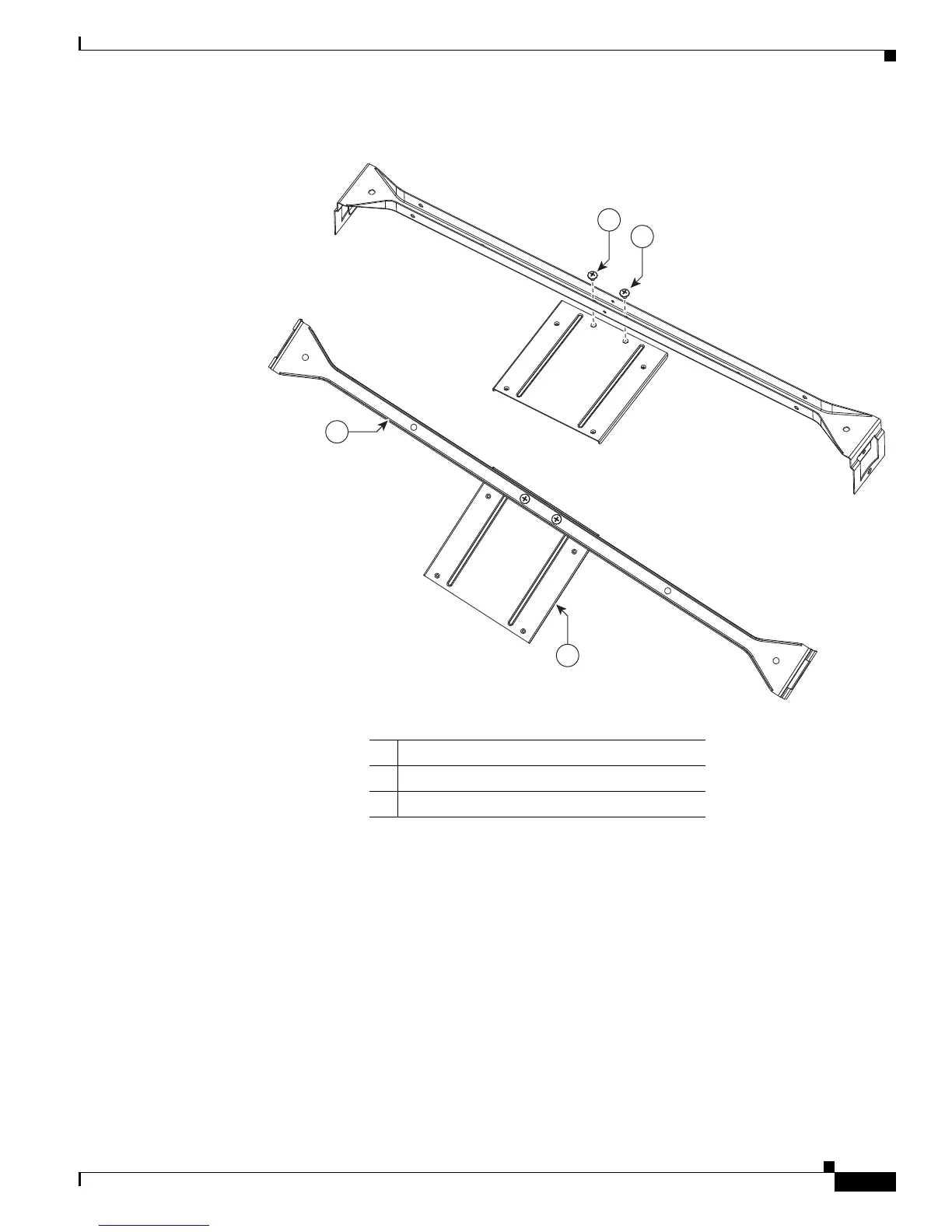

Figure 2-1 10-24 Screws
Step 2
Install the PoE+ splitter into the mounting plate with four 6-32 screws. (See Figure 2-2.)
285667
1
1
3
2
1 10-24 screws
2 Box hanger
3 Shelf bracket (PID 700-39491-01)
