Cisco 800 Series Hardware Installation Guide

1-37
Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 860, 880, 890 Series

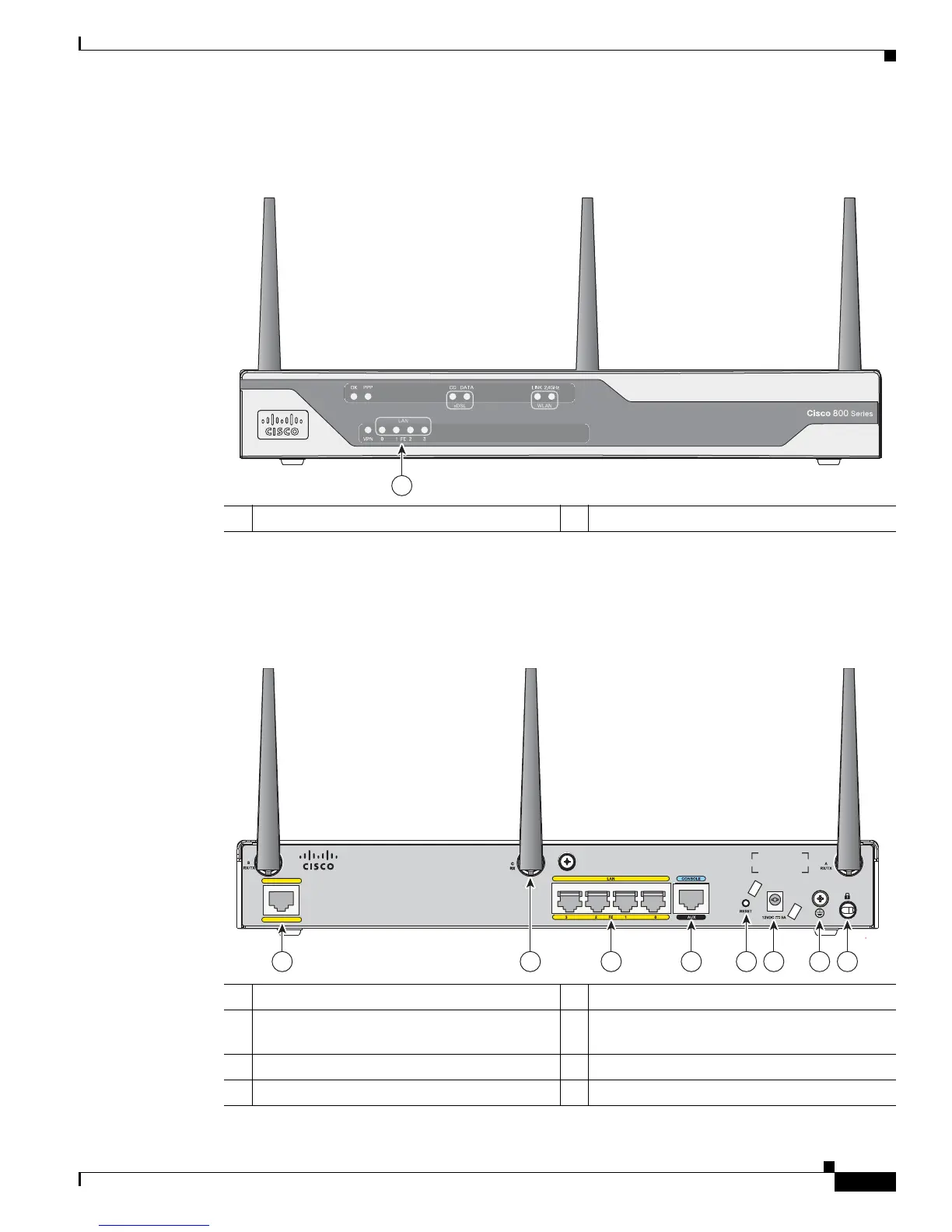

Figure 1-7 shows the front panel details of the Cisco 860 wireless router.
Figure 1-11 Front Panel of the Cisco 860 Series Wireless ISR
Figure 1-12 shows the back panel details of the Cisco 861 wireless (861W) ISR. Nonwireless routers do
not have antennas on the back panel. However, the feature locations are similar for all Cisco 860 series
routers.
Figure 1-12 Back Panel of the Cisco 861W ISR
1 LEDs
231969
1
1 Primary WAN port—10/100 5 Reset button
2 Antenna—captive omnidirectional dipole
WLAN antenna (wireless models only)
6 Power connector
3 4-port 10/100 Ethernet switch 7 Earth ground connection
4 Serial port—console or auxiliary 8 Kensington security slot
232181
31 4 6 7 852
WAN
FE 4
Cisco 861W

Cisco 800 Series Specifications

General

Model	Cisco 800 Series
Category	Network Router
VPN Support	Yes
Firewall	Yes
Dimensions	Varies by model
Processor	Varies by model
Memory	Varies by model
Operating System	Cisco IOS
WAN Ports	Varies by model
LAN Ports	Varies by model
WAN Interfaces	Varies by model
LAN Interfaces	Fast Ethernet or Gigabit Ethernet
