Chapter 1 Product Overview
Cisco 860, 880, 890 Series

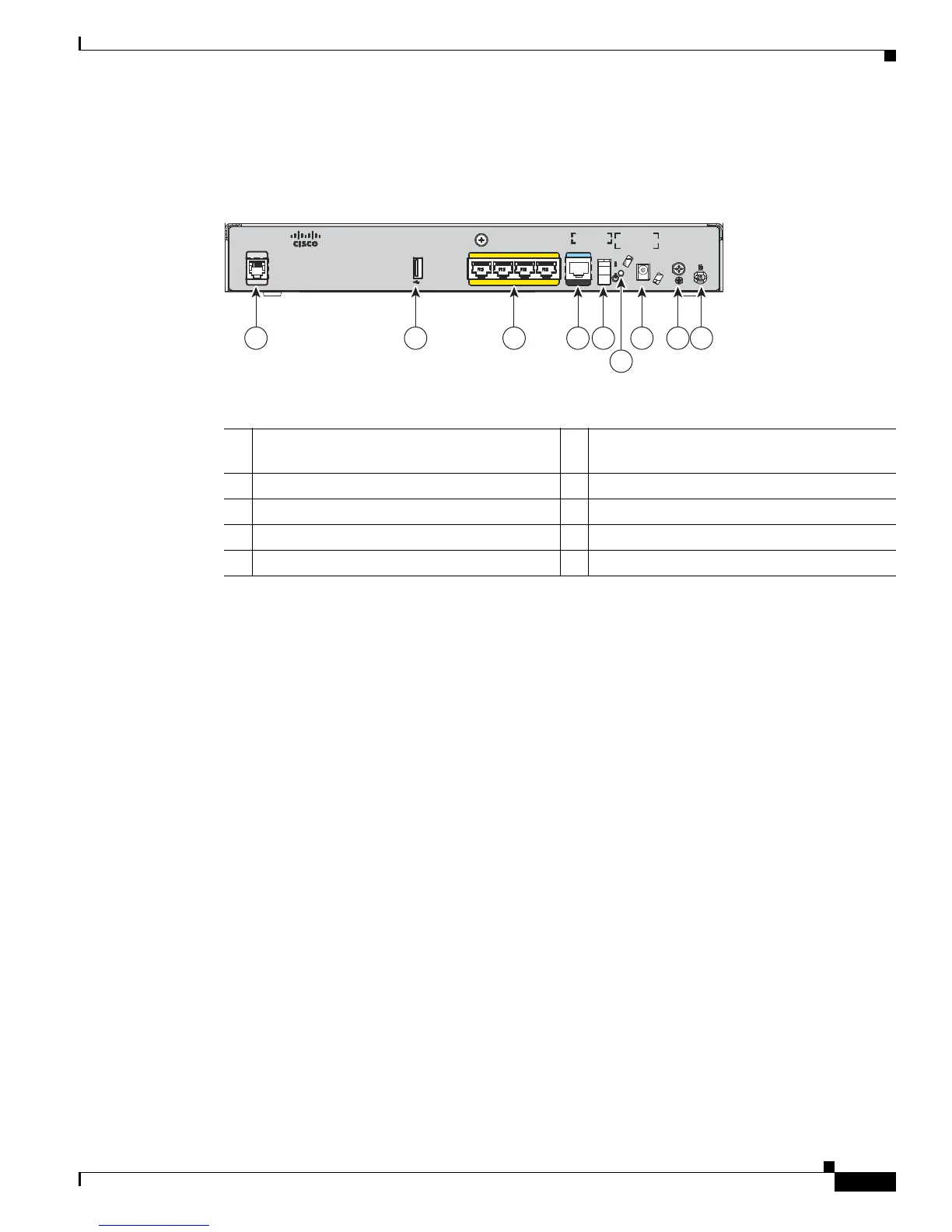

Figure 1-41 shows the back panel of the Cisco C887VAM router.
Figure 1-41 Back Panel of the Cisco C887VAM Router
For information on installing the Cisco C880 Series Routers, see:
http://www.cisco.com/en/US/docs/routers/access/800/860-880-890/hardware/installation/guide/2Instal
l880-860.html
361133
0
CiscoCisco 887887VAMAM
VDSL/ADSLVDSL/ADSL
over POTSover POTS
FE LANFE LAN
3 2 1 0
CONSOLE
CONSOLE
AUXAUX
12VDC 2.2.5-5A-5A
(POE)(POE)
RESETRESET
21 3 4 5 7 8 9
6
1 Primary WAN port—VDSL/ADSL over
POTS
6 Reset button
2 USB port 7 Power connector
3 4-port 10/100 Ethernet switch 8 Earth ground connection
4 Serial port—Console or auxiliary 9 Kensington security slot
5 On/Off switch
