Cisco 800 Series Hardware Installation Guide

1-66
Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 860, 880, 890 Series

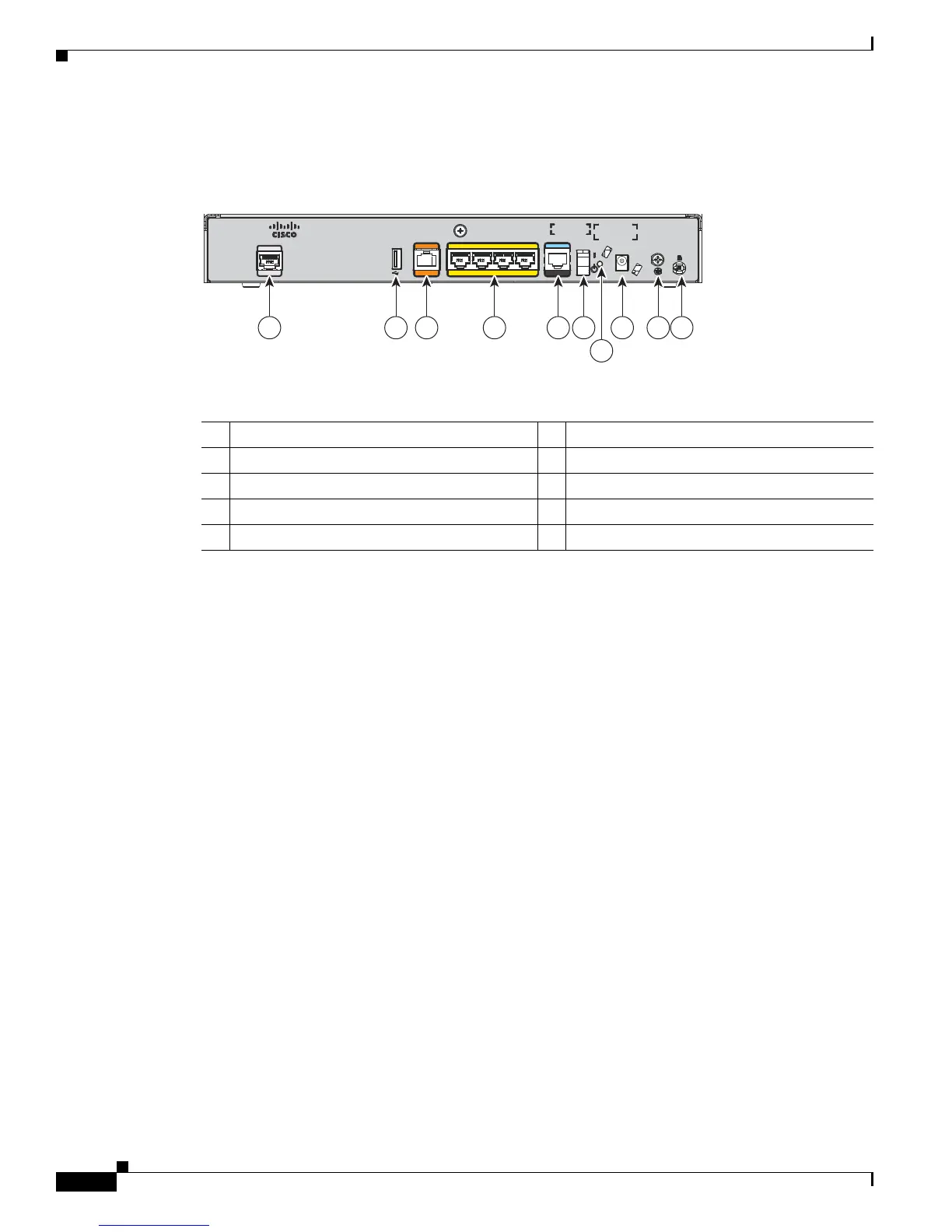

Figure 1-43 shows the back panel of the Cisco C888 Router.
Figure 1-43 Back Panel of the Cisco C888 Router
For information on installing Cisco 800 Series Routers, see the information available at:
http://www.cisco.com/c/en/us/td/docs/routers/access/800/hardware/installation/guide/800HIG/installin
g.html#pgfId-1098019
361135
0
FE LAN
FE LAN
3 2 1 0
CiscoCisco 888888
SHDSLSHDSL
RJ45 ONJ45 ONLY
ISDN
ISDN
0
CONSOLE
CONSOLE
AUXAUXAUXAUX
12VDC 2.2.5-5A-5A
(POE)(POE)
RESETRESET
2 31 4 5 6 8 9 10
7
1 Primary WAN port—G.SHDSL 6 On/Off switch
2 USB port 7 Reset button
3 ISDN 8 Power connector
4 4-port 10/100 Ethernet switch 9 Earth ground connection
5 Serial port—console or auxiliary 10 Kensington security slot
