1-5
Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series Integrated Services Routers Hardware Installation Guide
OL-16193-03
Chapter 1 Product Overview
Cisco 880 Series ISRs
Figure 1-4 shows the back panel details of the Cisco 888W data router. Nonwireless routers do not have
antennas on the back panel. However, the feature locations are similar across all Cisco 880 series data
routers.

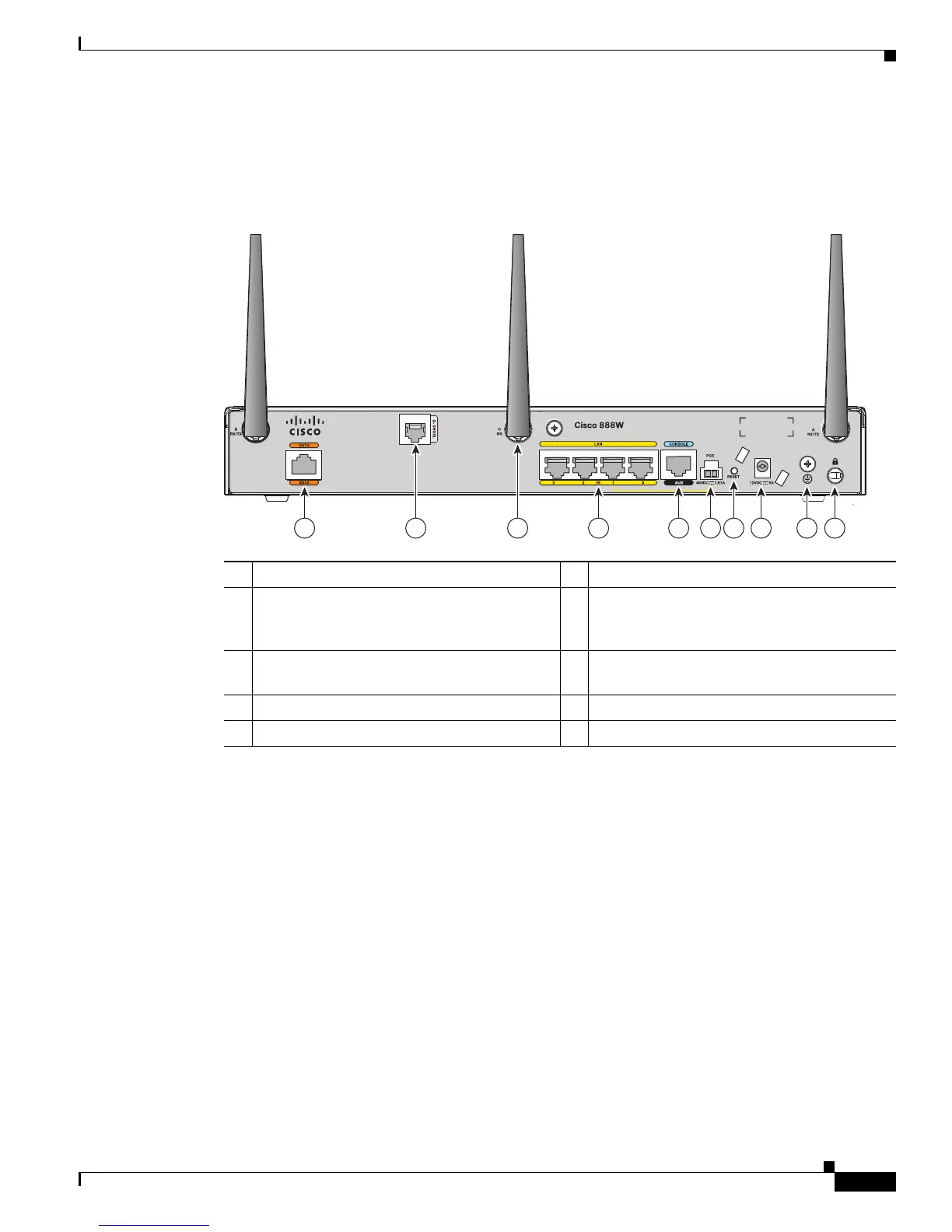

Figure 1-4 Back Panel of the Cisco 888W Data Router
1 ISDN port—not available on 3G models 6 PoE power connector—optional
2 Primary WAN port
1
—G.SHDSL,
VDSL2oPOTS, ADSL2+oPOTS,
ADSL2+oISDN, or 10/100 FE
1. Depending on the router model, the primary WAN port can be G.SHDSL, VDSL2oPOTS, or 10/100 FE. The VDSL2oPOTS
port is in the same location as the G.SHDSL port. The 10/100 FE WAN port is located at the bottom left corner. See
Figure 1-2
for location of the 10/100 FE WAN port.
7 Reset button
3 Antenna—captive omnidirectional dipole
WLAN antenna (wireless models only)
8 Power connector
4 4-port 10/100 Ethernet switch 9 Earth ground connection
5 Serial port—console or auxiliary 10 Kensington security slot
