Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series Integrated Services Routers Hardware Installation Guide
OL-16193-03
Chapter 1 Product Overview
Cisco 880 Series ISRs

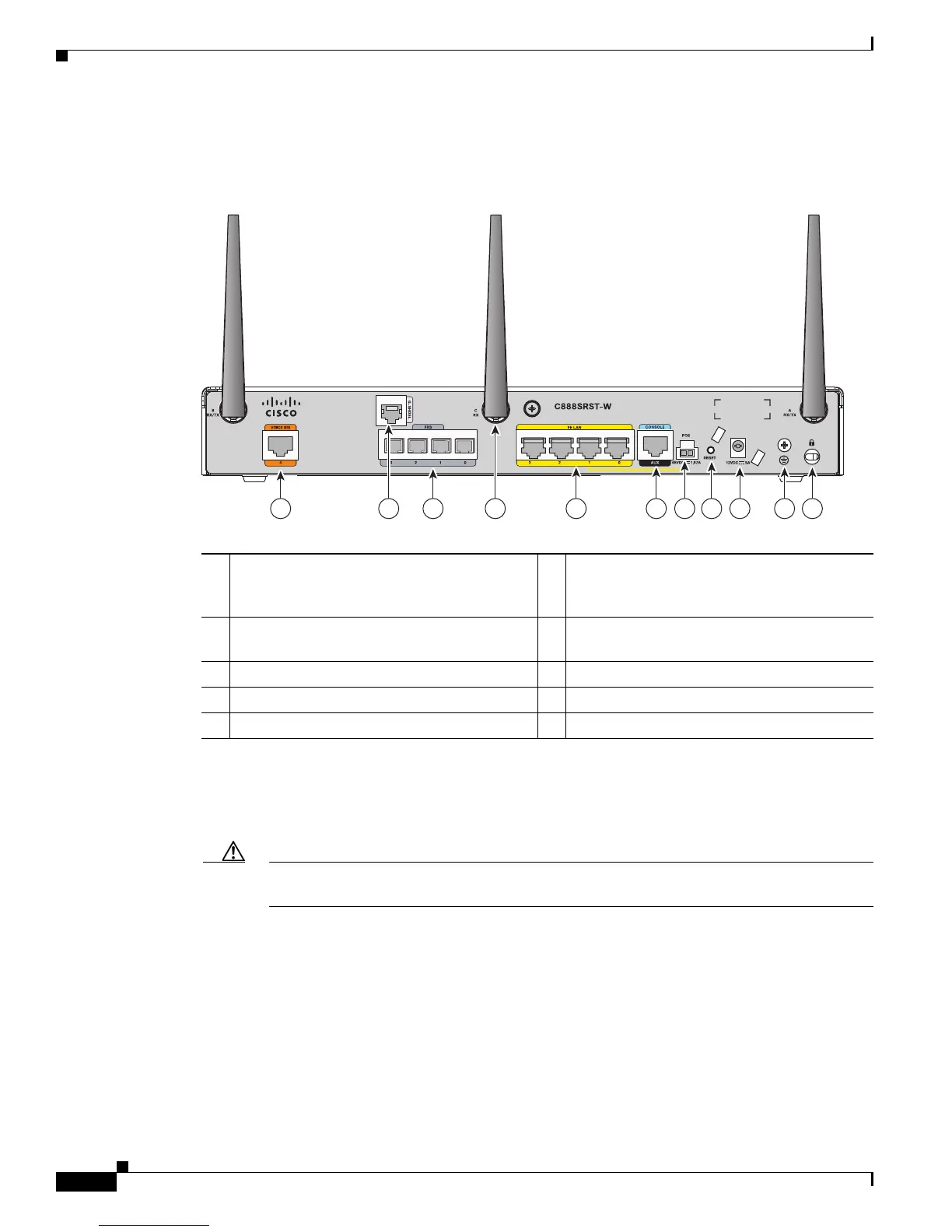

Figure 1-9 shows the back panel details of the Cisco 888SRST-W voice router.
Figure 1-9 Back Panel of the Cisco C888SRST-W, Cisco IAD888EF, Cisco C888ESRST, and Cisco
C888ESRST-W Voice RouterRouters
1 Primary WAN port
1
—G.SHDSL, RJ-45 only
on the C888ESRST-W. Voice BRI on the
IAD888EF
1. Depending on the router model, the primary WAN port can be either G.SHDL or 10/100 FE.
6 Antenna—captive wireless omnidirectional
dipole WLAN antenna (wireless models only)
2 Voice ports—four FXS
2
/DID
3
ports and one
voice BRI
4
port
2. FXS = Foreign Exchange Station.
3. DID = Direct Inward Dialing.
4. BRI = Basic Rate Interface.
Caution The primary WAN port on all 888E models is designed for an RJ-45 connector only. Damage
to the primary WAN port may occur if a non RJ-45 connector is inserted.
7 Reset button
3 4-port 10/100 Ethernet switch 8 Power connector
4 Serial port—console or auxiliary 9 Earth ground connection
5 PoE power connector—optional 10 Kensington security slot
241905
32 2 4 7 9 1086 51
