2-7
Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series Integrated Services Routers Hardware Installation Guide
OL-16193-03
Chapter 2 Installing the Router
Installing the Router
Note The mounting holes are bidirectional. You can hang the router with the front bezel facing upwards or
downwards.
Tip When choosing a location for wall-mounting the router, consider cable limitations and wall structure.
To mount the router on a wall, follow these steps:
Step 1 Anchor the screws into the wall, leaving 1/8 inch (0.32 centimeter) between the screw head and the wall.
Figure 2-4 shows the wall-mount holes located on the underside of the router.

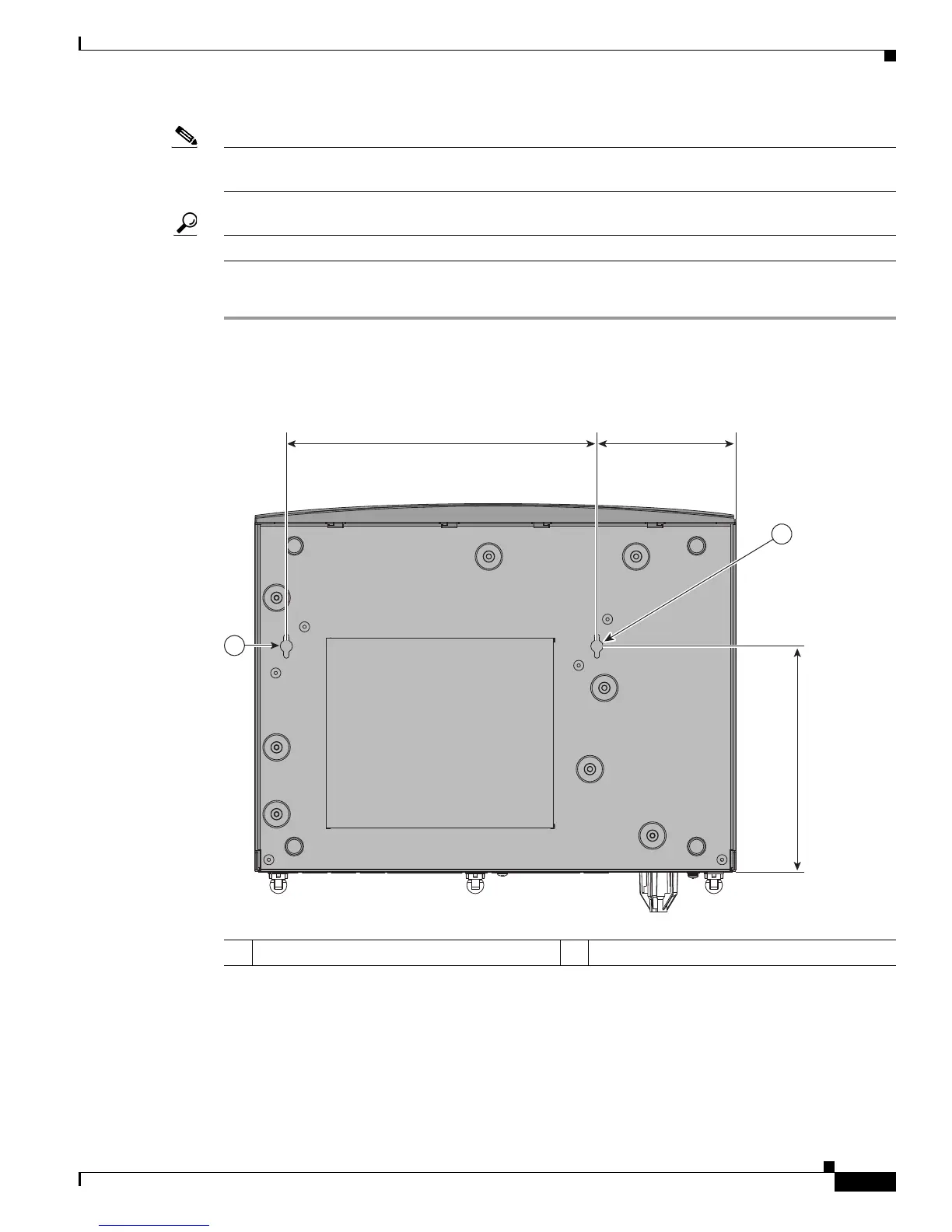

Figure 2-4 Wall-mount Holes on the Underside of the Router
Step 2 Hang the router on the screws, and place the power adapter on a nearby horizontal surface. See
Figure 2-5.
1 Wall-mount holes
231987
1
3.673 in.8.200 in.
5.961 in.
1
