Install the Cisco Unified IP Conference Phone 8831 for Third-Party Call Control
Install the Cisco Unified IP Conference Phone 8831 for
Third-Party Call Control

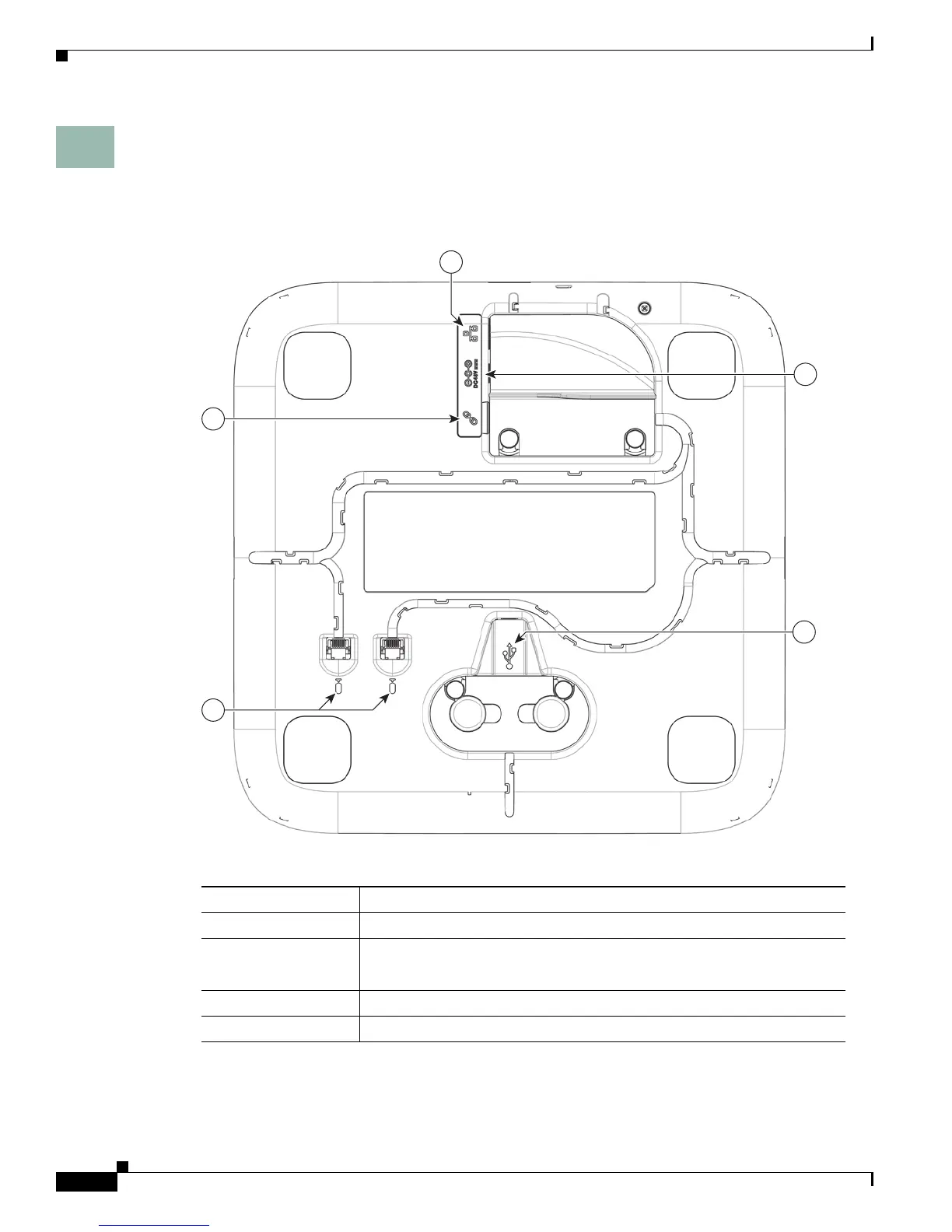

Figure 1 Bottom View of the Sound Base
1
1 Network cable port
2 External power connection
3 Display Control Unit USB port. Connects the DCU to the base.
Note Press firmly to seat ferrite bead between cord posts.
4 Wired extension microphone jack
5 Daisy chain cable port. Connects two Sound Base units in Linked Mode.
1
3
2
5
4
346668
