Cisco 8861 Administration Guide

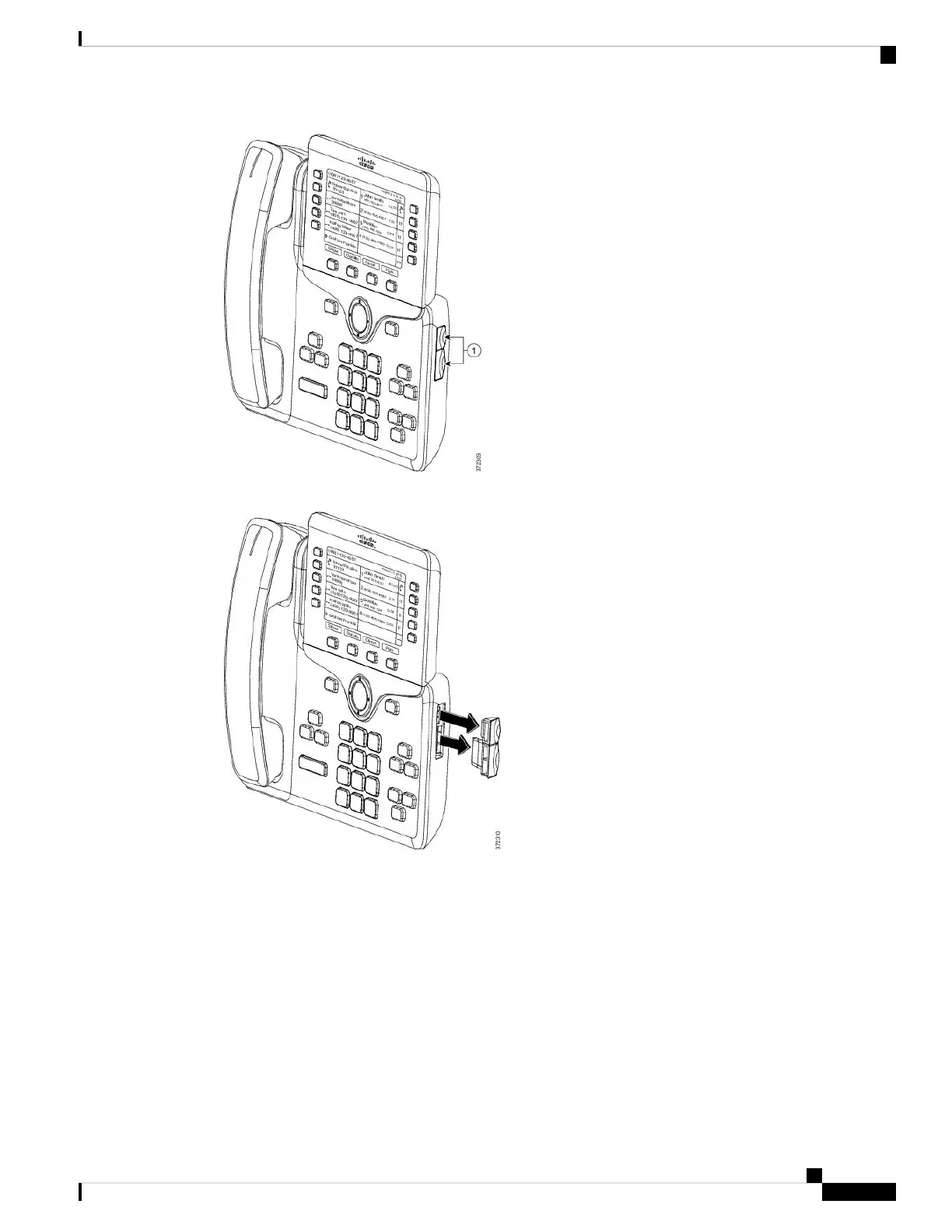

Step 4 Remove the two accessory connector covers, as shown in the diagram.
The slots are designed for the spine connector only. Insertion of other objects will cause permanent
damage to the phone.
Caution
Step 5 Position the phone so that the front of the phone faces up.
Step 6 Connect one end of the key expansion module spine connector to the accessory connector on the Cisco IP
Phone.
a) Align the spine connector with the accessory connector ports.
Install the connector in the orientation shown in the following diagrams.
Note
b) Firmly press the spine connector into the phone.
Cisco IP Phone 8800 Series Multiplatform Phones Administration Guide
115
Hardware and Accessory Installation
Connect Two or Three Key Expansion Modules to a Cisco IP Phone

Cisco 8861 Specifications

General

Resolution	800 x 480 pixels
Audio	Wideband audio
Ethernet Ports	2 x 10/100/1000
Speakerphone	Full-duplex
Display	5-inch color display
Lines	5
PoE	Yes (802.3af)
Protocols	SIP, SDP, SRTP
Wi-Fi	802.11a/b/g/n/ac
Headset Jack	Yes
Codecs	G.711, G.722, G.729, iLBC
USB Port	2 x USB 2.0
USB Ports	2 x USB 2.0
Supported Languages	Multiple (English, French, Spanish, etc.)
