Cisco 8861 Administration Guide

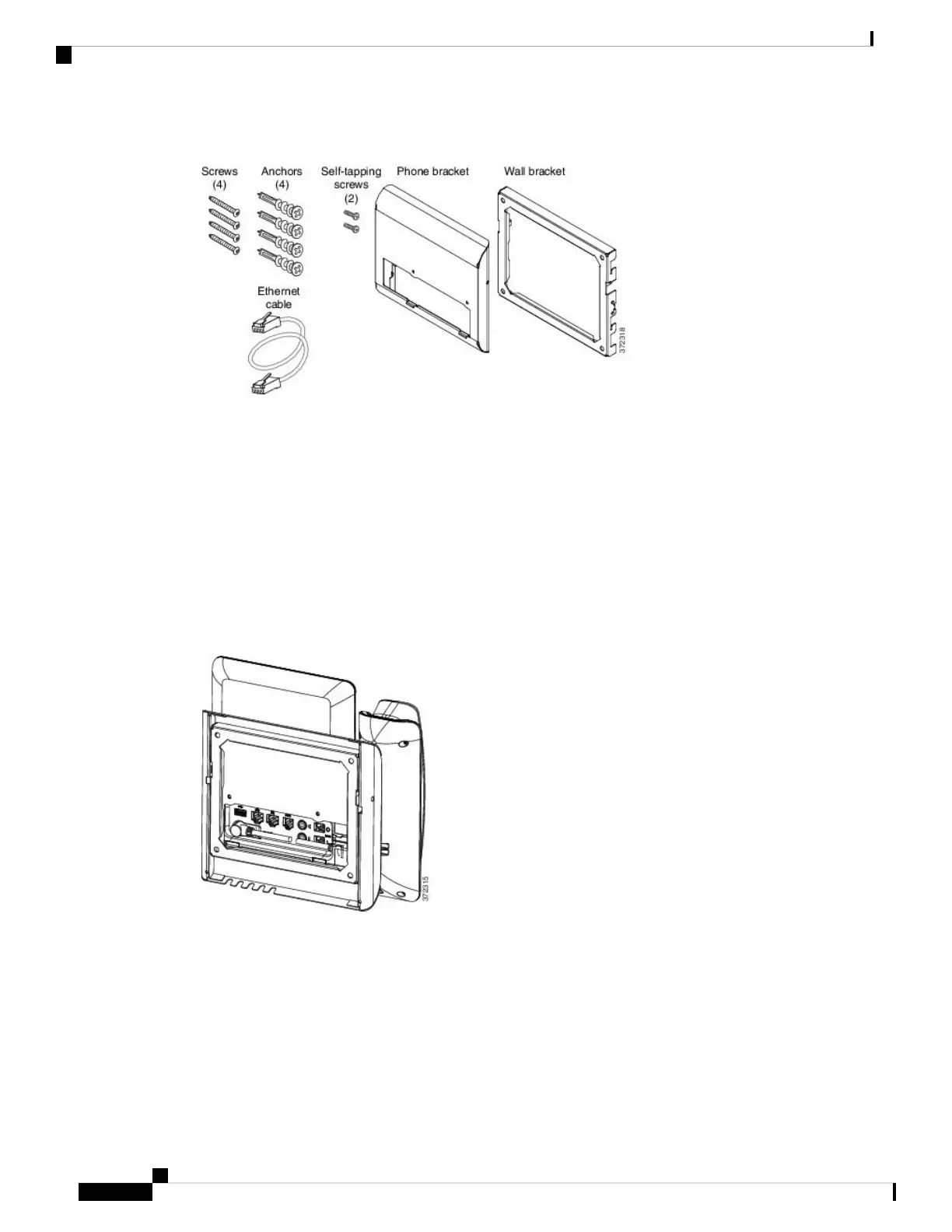

Figure 7: Components
The package contains the following items:
• One phone bracket
• One wall bracket
• Four #8-18 x 1.25-inch Phillips-head screws with four anchors
• Two K30x8mm self-tapping screws
• One 6-inch Ethernet cable
The following figure shows the wall mount kit installed on the phone.
Figure 8: Back view of Wall Mount Kit Installed on Phone
The following figure shows the phone with the wall mount kit from the side.
Cisco IP Phone 8800 Series Multiplatform Phones Administration Guide
124
Hardware and Accessory Installation
Non-Lockable Wall Mount Components

Cisco 8861 Specifications

General

Resolution	800 x 480 pixels
Audio	Wideband audio
Ethernet Ports	2 x 10/100/1000
Speakerphone	Full-duplex
Display	5-inch color display
Lines	5
PoE	Yes (802.3af)
Protocols	SIP, SDP, SRTP
Wi-Fi	802.11a/b/g/n/ac
Headset Jack	Yes
Codecs	G.711, G.722, G.729, iLBC
USB Port	2 x USB 2.0
USB Ports	2 x USB 2.0
Supported Languages	Multiple (English, French, Spanish, etc.)
