• To ensure the DIMMs are functioning properly, all four DIMMs must be replaced at the same time and
must be of the same manufacturer and part number (since vendors may have multiple versions of the
DIMM).
The following table shows the slots that are supported for inserting memory DIMMs in Cisco ASR1000-RP2
Table 3: Cisco ASR1000-RP2 Supported Slots for Inserting Memory DIMMs
Slot 3Slot 2Slot 1Slot 0Memory PID Option
2 GB module2 GB module2 GB module2 GB moduleM-ASR1K-RP2-8GB=
4 GB Module4 GB Module4 GB Module4 GB ModuleM-ASR1K-RP2-16GB=
This section describes how to remove and then replace the Cisco ASR1000-RP2 module DIMMs (see the
following figure).

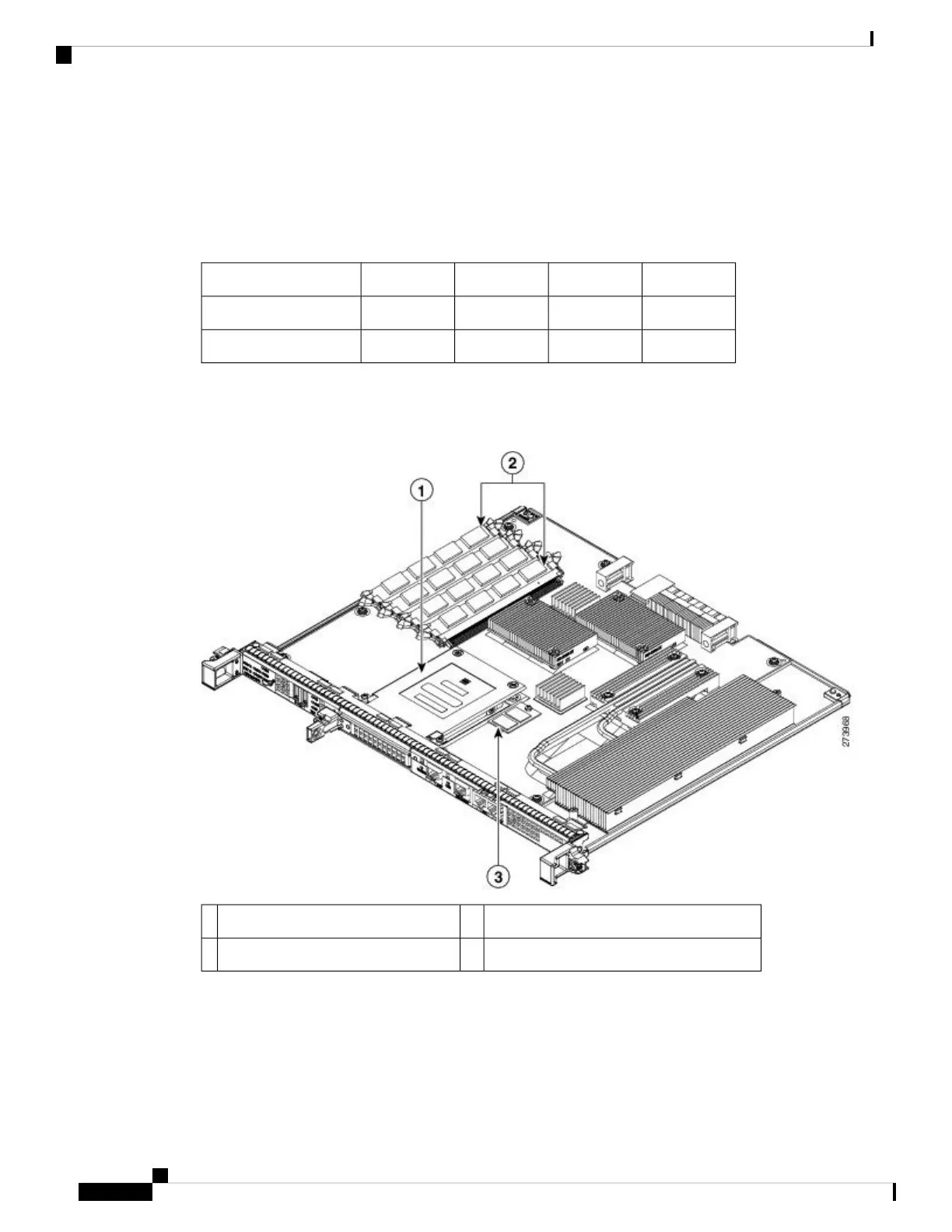

Figure 16: Cisco ASR1000-RP2 Module Internal Component Location
Cisco ASR1000-RP2 internal eUSB device3Internal hard drive location1
——Cisco ASR1000-RP2 DIMM location2
Removing the Cisco ASR1000-RP2 DIMMs
Follow these steps to remove the Cisco ASR1000-RP2 DIMMs:
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
26
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing the Cisco ASR1000-RP2 DIMMs
