Cisco ASR 1000 Series Replacing

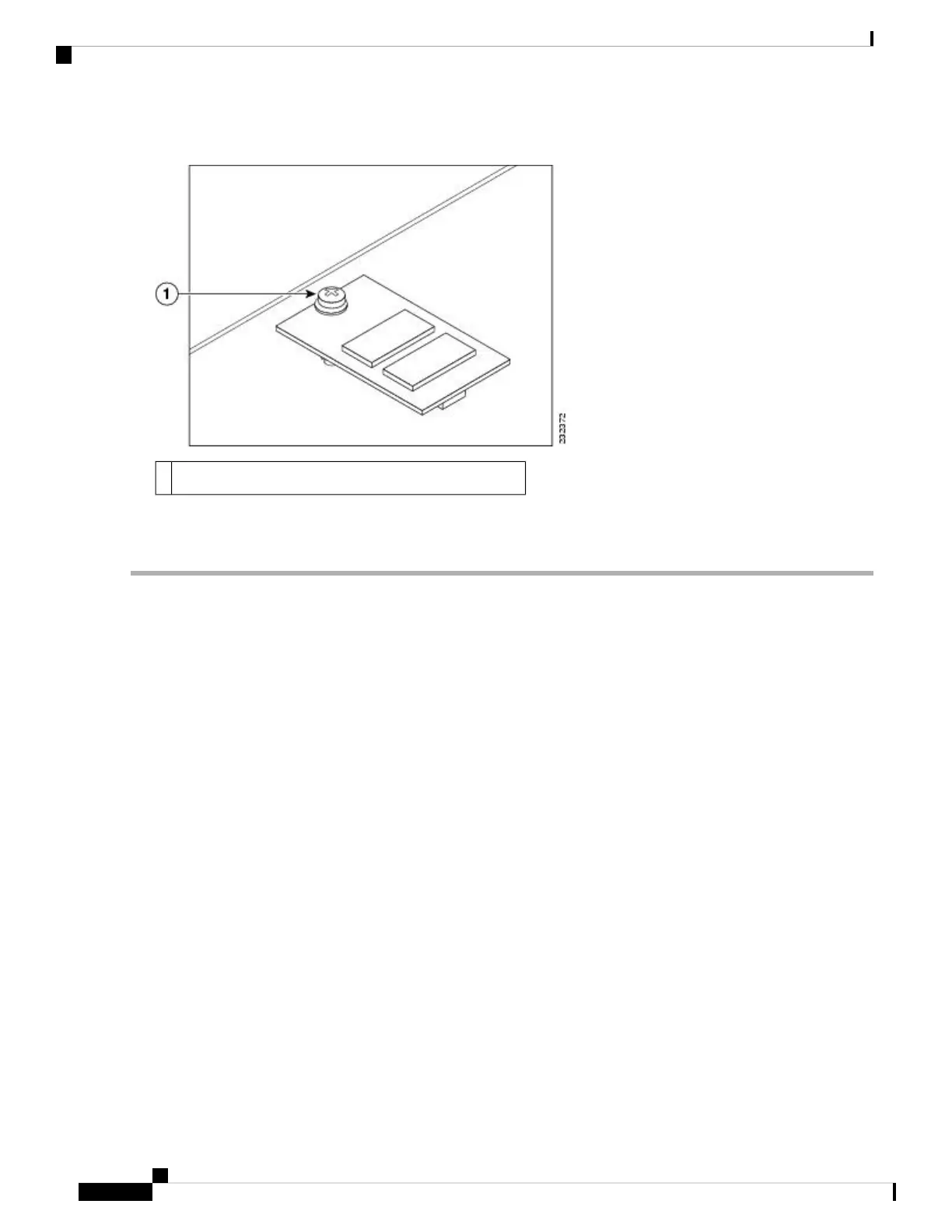

Figure 30: Cisco ASR1000-RP eUSB Device
Cisco ASR 1000 Series RP eUSB device Phillips screw1
h) Gently pull the eUSB device up from its connector and remove it.
i) Place the eUSB device in an antistatic bag for return.
What to do next
You have removed the Cisco ASR1000-RP and eUSB component.
Remove and Replace the eUSB Device on the Cisco ASR 1006 and Cisco ASR
1004 Routers
To replace the eUSB component, follow these steps:
SUMMARY STEPS
1. Align the replacement eUSB device over the connector and standoff. The device fits over the threaded
post that sticks up off the board and accepts a screw to hold the eUSB firmly to the Cisco ASR 1000 Series
RP board.
2. Gently insert the new eUSB device by pressing it into the connector keeping aligned with the standoff
and secure the eUSB device with the small Phillips screw as displayed in the following figure.
3. Replace the Cisco ADR1000-RP into chassis and remove any external USB sticks.
4. Restore the backup copy of the startup-config and boot image to the eUSB device.
5. Verify that the Cisco ASR1000-RP1 is operating properly. Check that the internal hard drive LED (labeled
as DISK HD) is flashing green. To check if the LED flashes green, from the ROMMON or IOS prompt,
perform a:
6. To restore data after the internal hard drive replacement, type:
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
42
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Remove and Replace the eUSB Device on the Cisco ASR 1006 and Cisco ASR 1004 Routers

Cisco ASR 1000 Series Specifications

General

Series	ASR 1000
Category	Network Router
Operating System	Cisco IOS XE
Memory	Up to 64 GB
Interfaces	10 Gigabit Ethernet
Power Supply	AC or DC options
Dimensions	Varies by model
Encryption	IPsec, SSL
Storage	Varies by model
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	5% to 95% non-condensing
MTBF	Varies by model
