Cisco ASR 1000 Series Replacing

Terminal block plastic cover4Positive terminal2
The following figure shows the DC power supply terminal block for the ASR1013/06-PWR-DC power supply of the
Cisco ASR 1006 Router.
Figure 42: Cisco ASR 1006 Router DC Power Supply (ASR1013/06-PWR-DC) Terminal Block and Plastic Cover
Protective sleeving around the stud and cable3Negative lead1
Ground stud and cable4Positive lead2
Step 5 Remove the slotted plastic cover from the terminal block (see xref figure).
a) Loosen and remove the single screw on the plastic cover. The plastic cover has slots that help to slide it out diagonally
from the terminal block.
b) Using a nut driver (7/16 size), unsrew the positive kepnut, positive cable, and the flat washer, in that order. The
terminal block houses two double-hole barrel lugs.
c) Follow Step 4b and remove the negative cable.

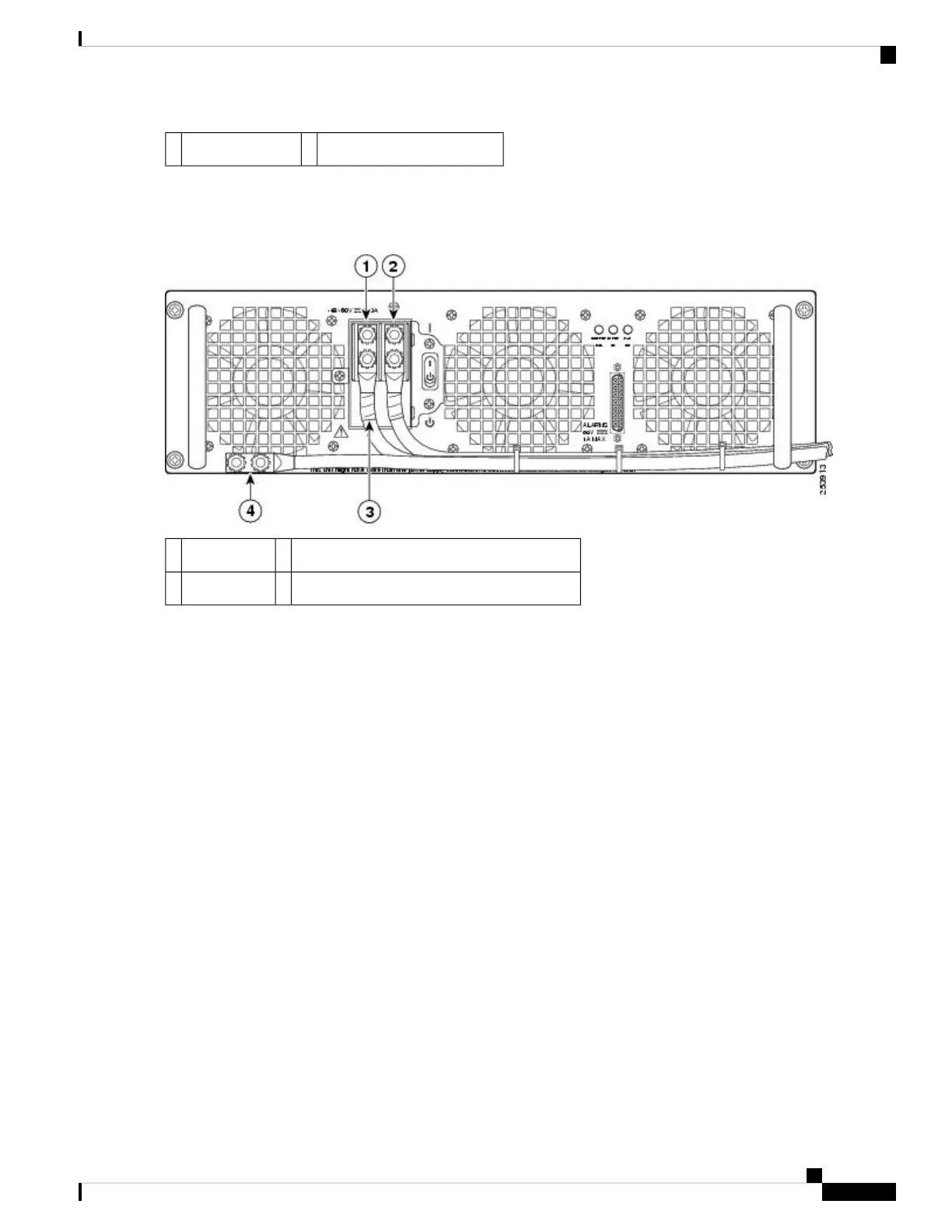

The following figure shows the DC power supply terminal block with cables connected for the ASR1006-PWR-DC
power supply of the Cisco ASR 1006 Router.
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
65
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing the DC Power Supply from Cisco ASR 1006 Router
