Cisco ASR 1000 Series Replacing

Before performing any of the following procedures, ensure that power is removed from the DC circuit.
Statement 1003
Warning
Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement
1030
Warning
Installation of the equipment must comply with local and national electrical codes. Statement 1074
Warning
The following figure shows the DC power supply and components for the Cisco ASR 1004 Router.

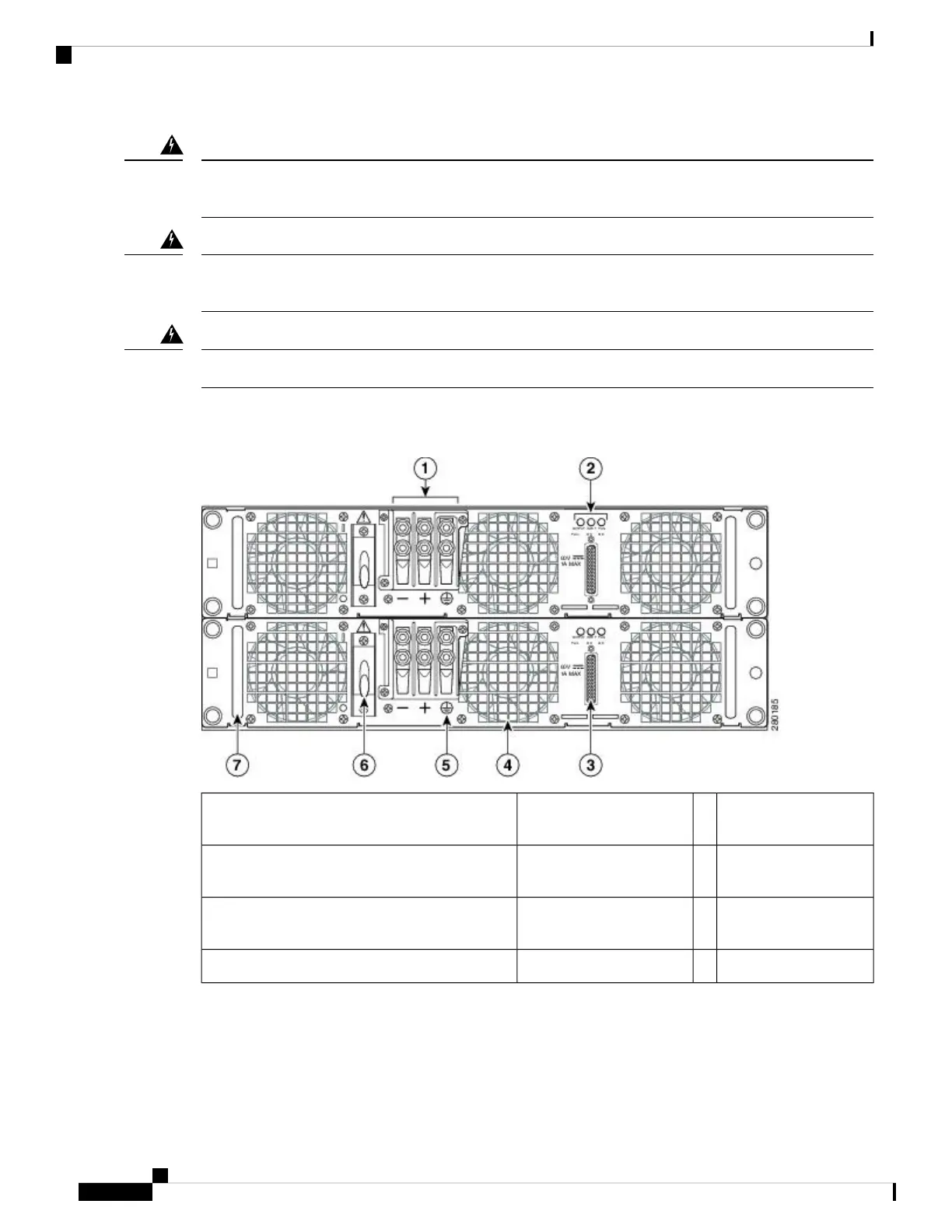

Figure 49: Cisco ASR 1004 Router DC Power Supply
DC power supply
ground symbol
5DC power supply terminal
block and plastic cover
1
DC power supply On (|)/
Off (O)
6DC power supply LEDs2
DC power supply
handle
7DB-25 alarm connector*3
——DC power supply fan4
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
