Chapter 2 Cisco ASR 1000 Series Routers Components
Cisco ASR 1000 Series Router Power Supplies
Figure 2-9 shows the AC power supplies at the rear of the Cisco ASR 1006 Router.The Cisco ASR 1006
Router supports up to two power supplies. The power supply LEDs and connectors on the rear of the
chassis are described in Table 2-10.

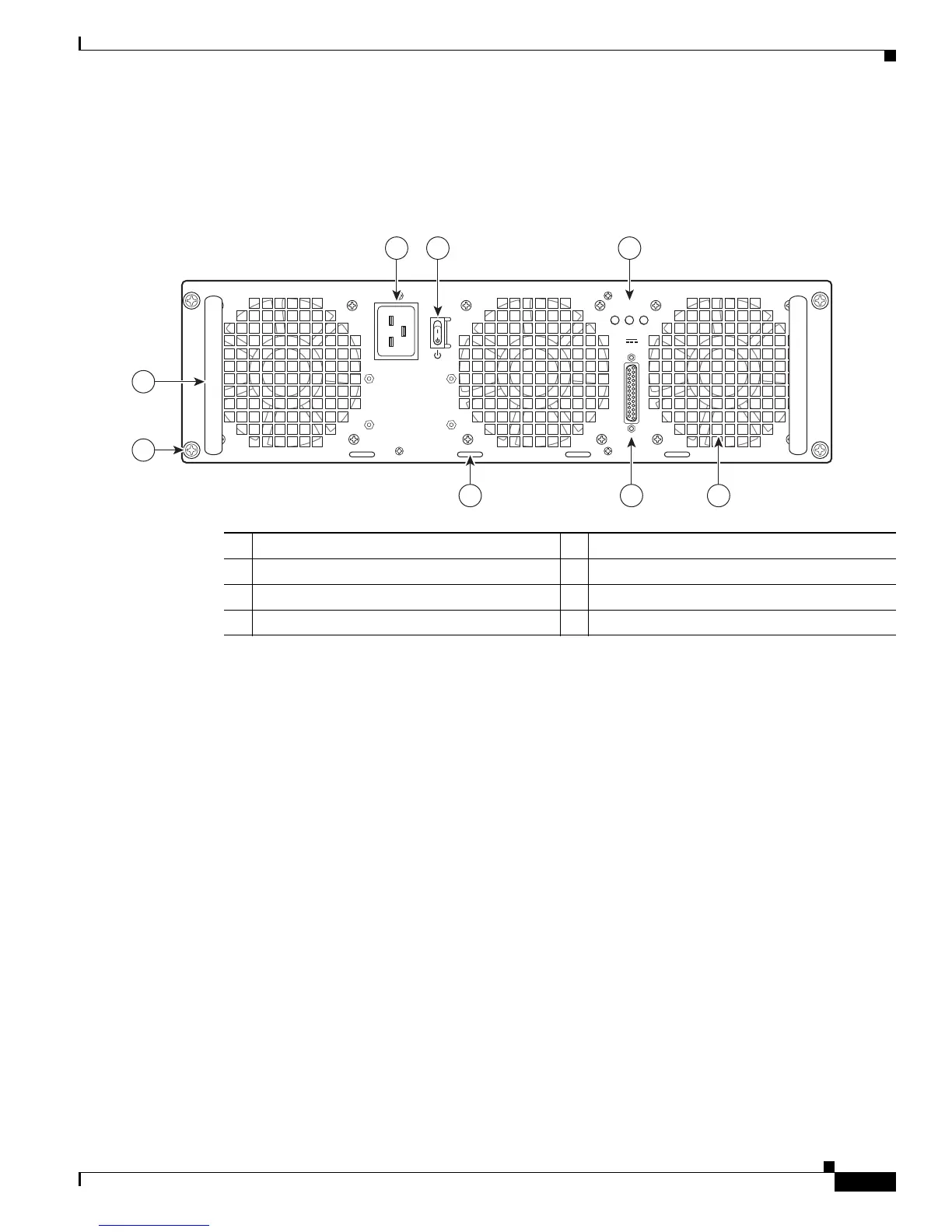

Figure 2-9 Cisco ASR 1006 Router AC Power Supply
Figure 2-10 shows the AC power supplies LEDs and DB-25 alarm connector.
1 AC power supply fan 5 AC power supply handle
2 DB-25 alarm connector 6 AC power inlet
3 Tie-wrap tab 7 AC power supply Standby switch
4 AC power supply captive screw 8 AC power supply LEDs
280029
OUTPUT INPUT INPUT
FAIL OK OK
ALARMS
60V
1A MAX
100-240V~ 16-7A
50-60HZ
This unit might have more than
one power supply connection.
All connections must be removed
to de-energize the unit.
2 13
4
5
6 7
8

Cisco ASR 1000 Series Specifications

General

Series	ASR 1000
Category	Network Router
Operating System	Cisco IOS XE
Memory	Up to 64 GB
Interfaces	10 Gigabit Ethernet
Power Supply	AC or DC options
Dimensions	Varies by model
Encryption	IPsec, SSL
Storage	Varies by model
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	5% to 95% non-condensing
MTBF	Varies by model
