Cisco ASR 1002 Replacing

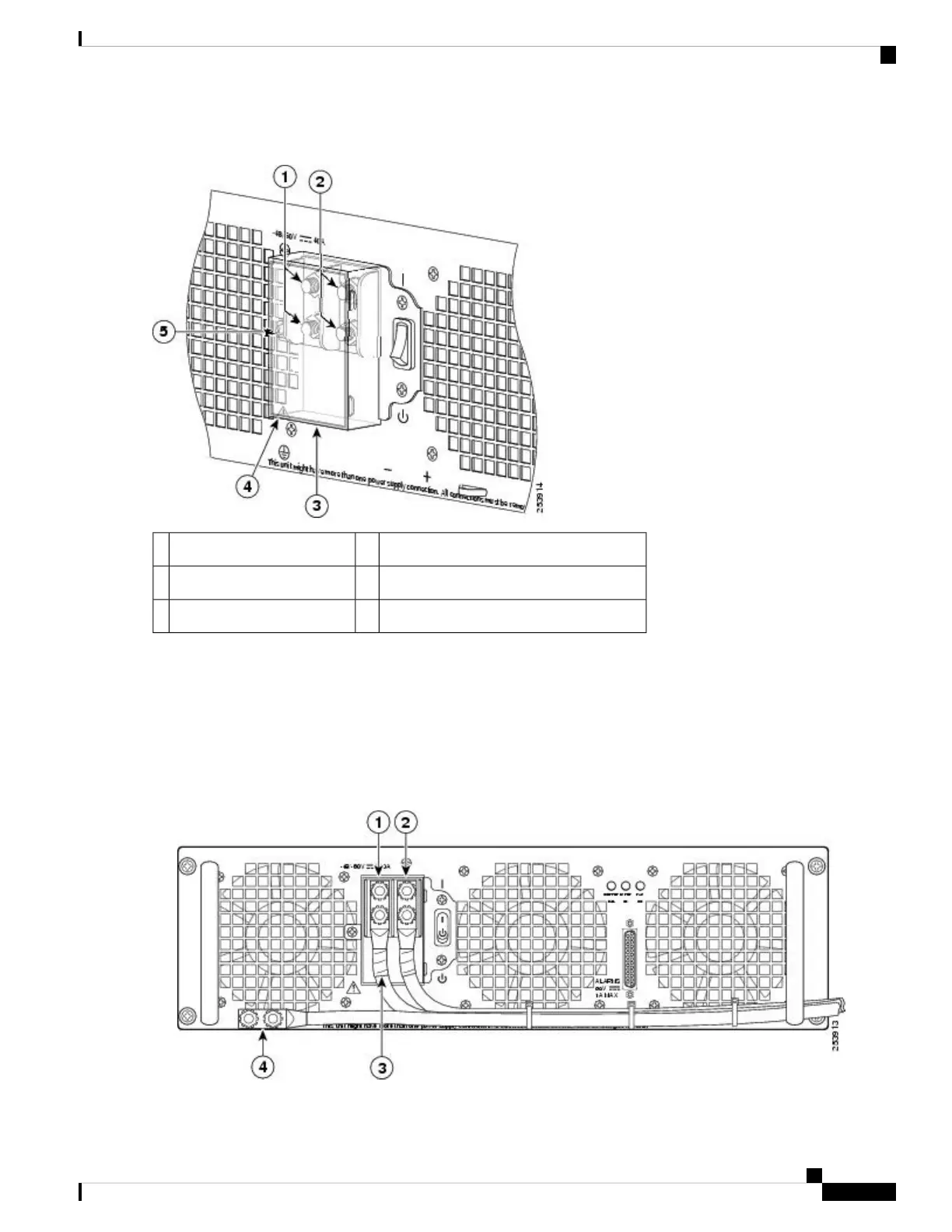

Figure 69: Cisco ASR 1013 Router DC Power Supply Terminal Block and Plastic Cover
Plastic cover slotted area4Negative terminal1
Terminal block plastic cover single screw5Positive terminal2
——Terminal block plastic cover3
Step 5 Remove the slotted plastic cover from the terminal block (see xref fig).
a) Loosen and remove the single screw on the plastic cover. The plastic cover has slots that help to slide it out diagonally
from the terminal block.
b) Using a nut driver (7/16 size), unsrew the positive kepnut, positive cable, and the flat washer, in that order. The
terminal block houses two double-hole barrel lugs.
c) Follow Step 4b and remove the negative cable. The following figure shows the DC power supply terminal block.
Figure 70: Cisco ASR 1013 Router DC Power Supply Terminal Block Cable Connections
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
103
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing the DC Power Supply from Cisco ASR 1013 Router

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
