Step 2 To remove the Cisco ASR1000-RP and then the eUSB device from the chassis, follow these steps:
a) Attach an ESD-preventive wrist strap between you and an unpainted router surface.
b) If connected, remove any I/O cables from the Cisco ASR1000-RP.
c) Using a number two Phillips or a 3/16-inch flat-blade screwdriver, loosen the two captive screws on the faceplate of
the Cisco ASR1000- RP.
d) Using the handles on both sides of the module, with two hands, gently slide the module out of the chassis slot.
Handle the Cisco ASR1000-RP by the carrier edges only; never touch the printed circuit board components
or connector pins.
Caution
e) Place the Cisco ASR1000-RP module on an antistatic surface with its printed circuit board components facing upward.
f) Locate the eUSB device on the ASR1000 Series RP board. The following figure shows the location of the eUSB
component on the Cisco ASR1000-RP1 and xref figure shows the location of the eUSB component on the Cisco
ASR1000-RP2 route processor.

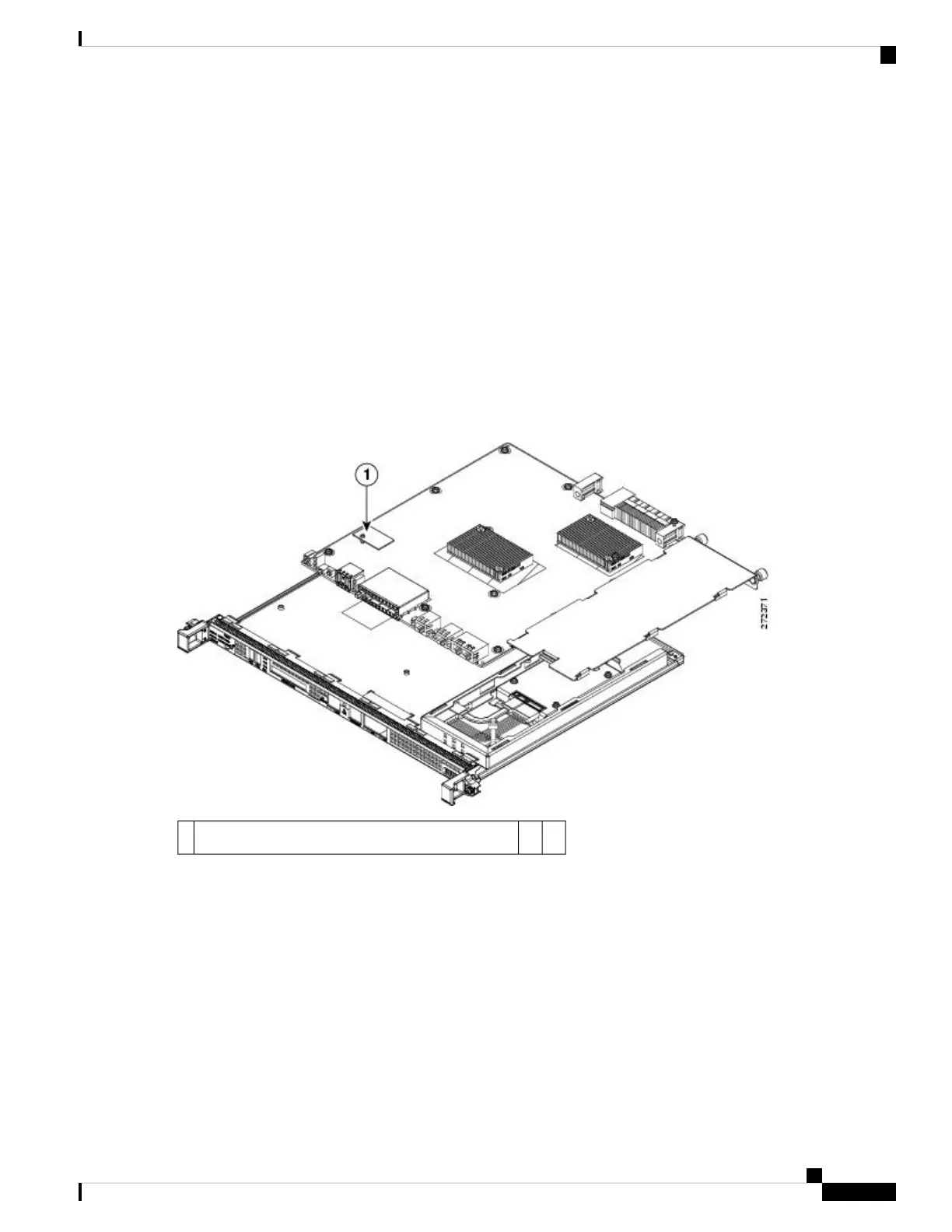

Figure 29: Cisco ASR1000-RP1 eUSB Location
——Cisco ASR 1000 Series RP1 eUSB device location1
g) Remove the small Phillips screw holding the eUSB board in-place (see the following figure).
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
41
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Remove and Replace the eUSB Device on the Cisco ASR 1006 and Cisco ASR 1004 Routers

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
