If you need additional equipment, contact a service representative for ordering information.
Electrostatic Discharge Prevention
Electrostatic discharge (ESD) damages equipment and impairs electrical circuitry. ESD occurs when printed
circuit boards are improperly handled and results in complete or intermittent failures.
Each SPA circuit board is mounted to a metal carrier and is sensitive to electrostatic discharge (ESD) damage.
The SIP and SPAs consist of a printed circuit board that is fixed in a metal carrier. Electromagnetic interference
(EMI) shielding, connectors, and a handle are integral components of the carrier.
When a subslot is not in use, a SPA blank filler plate must fill the empty subslot to allow the router to conform
to electromagnetic interference (EMI) emissions requirements and to allow proper airflow across the installed
modules. If you plan to install a SPA in a subslot that is not in use, you must first remove the SPA blank filler
plate.
Always handle the SIP by the carrier edges and its handle; never touch the SIP components or connector pins.
Caution

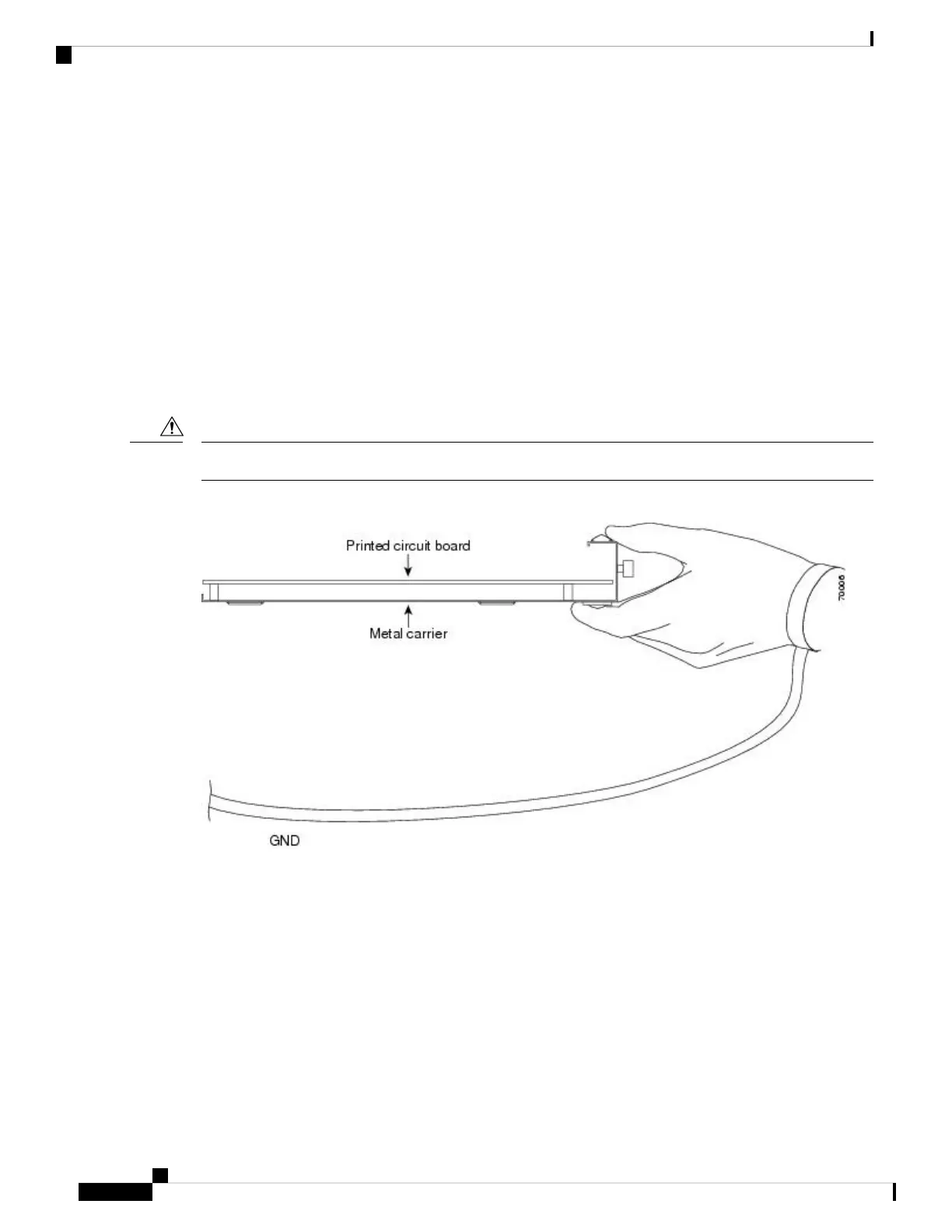

Figure 36: Handling the Cisco ASR 1000 Series SPA Interface Processor
Add a callout table.
1 - Printed circuit board
2 - Metal carrier
Although the metal carrier helps to protect the SIP and SPA from ESD, wear a preventive antistatic strap
whenever handling the SIP and SPA. Ensure that the strap makes good skin contact and connect the strap’s
clip to an unpainted chassis surface to safely channel unwanted ESD voltages to ground.
If no wrist strap is available, ground yourself by touching the metal part of the chassis.
Following are guidelines for preventing ESD damage:
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
54
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Electrostatic Discharge Prevention

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
