Cisco ASR 1002 Replacing

AC power supply Standby
switch. A Standby switch is
not considered a disconnect.
7Cable tie-wrap tabs3
AC power supply LEDs8AC power supply
captive screws
4
*For information about the DB-25 alarm
connector, how it works, and Cisco ASR 1000
series route processor LEDs, see xref “How Cisco
ASR1000-RP Alarm Monitoring Works” section
on page 2-20.
Note: Shielded cables must be used to connect to
the DB-25 alarm connector on both the AC and
DC power supplies, in order to comply with
FCC/EN55022/CISPR22 Class A emissions
requirements.

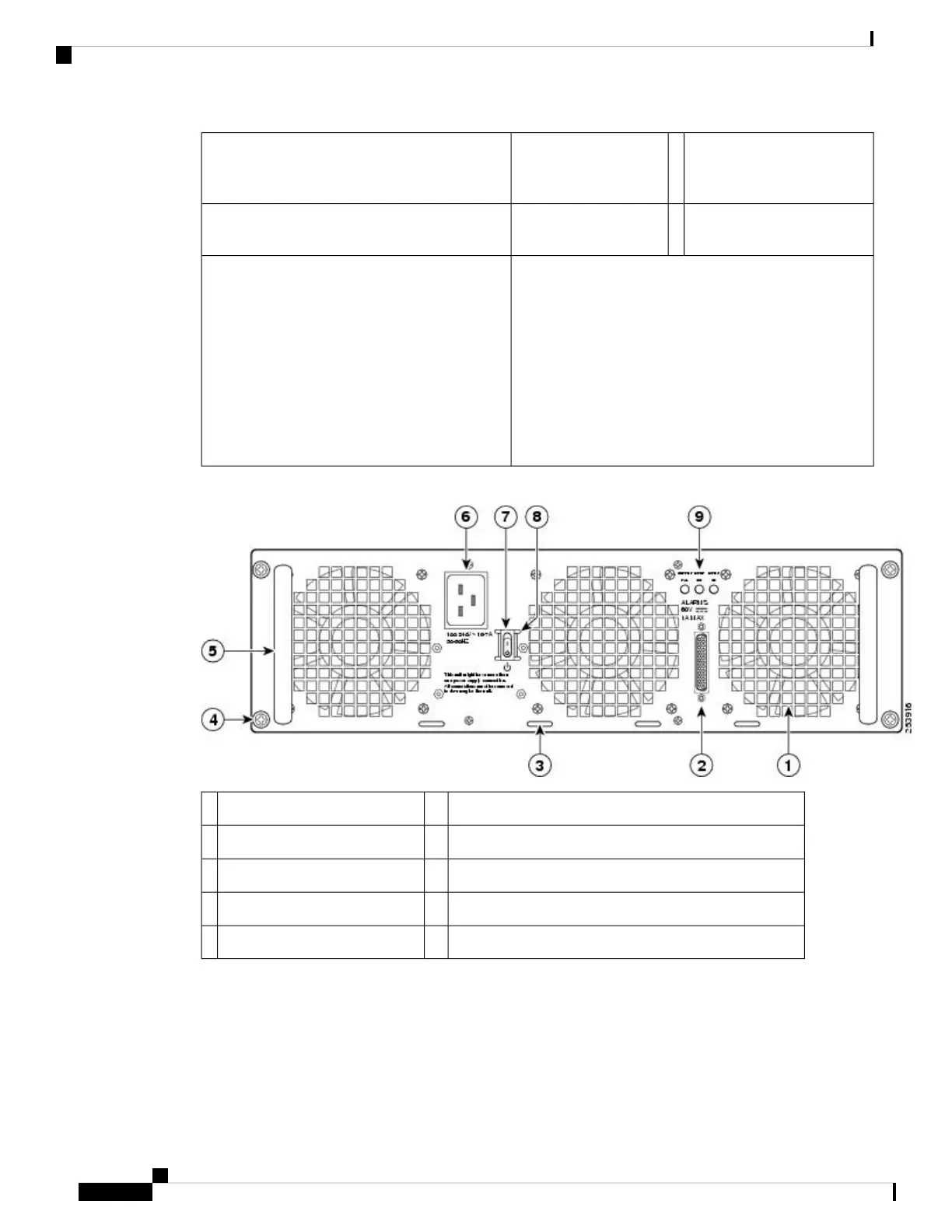

The following figure shows the ASR1013/06-PWR-AC power supply of the Cisco ASR 1006 Router.
AC power inlet6AC power supply fan1
AC power supply Standby switch7DB-25 alarm connector2
Protective shielding on both sides of the Standby switch8Tie-wrap tab3
AC power supply LEDs9AC power supply captive screw4
——AC power supply handle5
SUMMARY STEPS
1. Insert an AC power supply in power supply slot 0 or power supply slot 1 until it is fully seated.
2. Tighten the captive screws.
3. Insert the AC power cable.
4. Plug the power supply cable into the power source.
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
60
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Replacing the AC Power Supply in Cisco ASR 1006 Router

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
