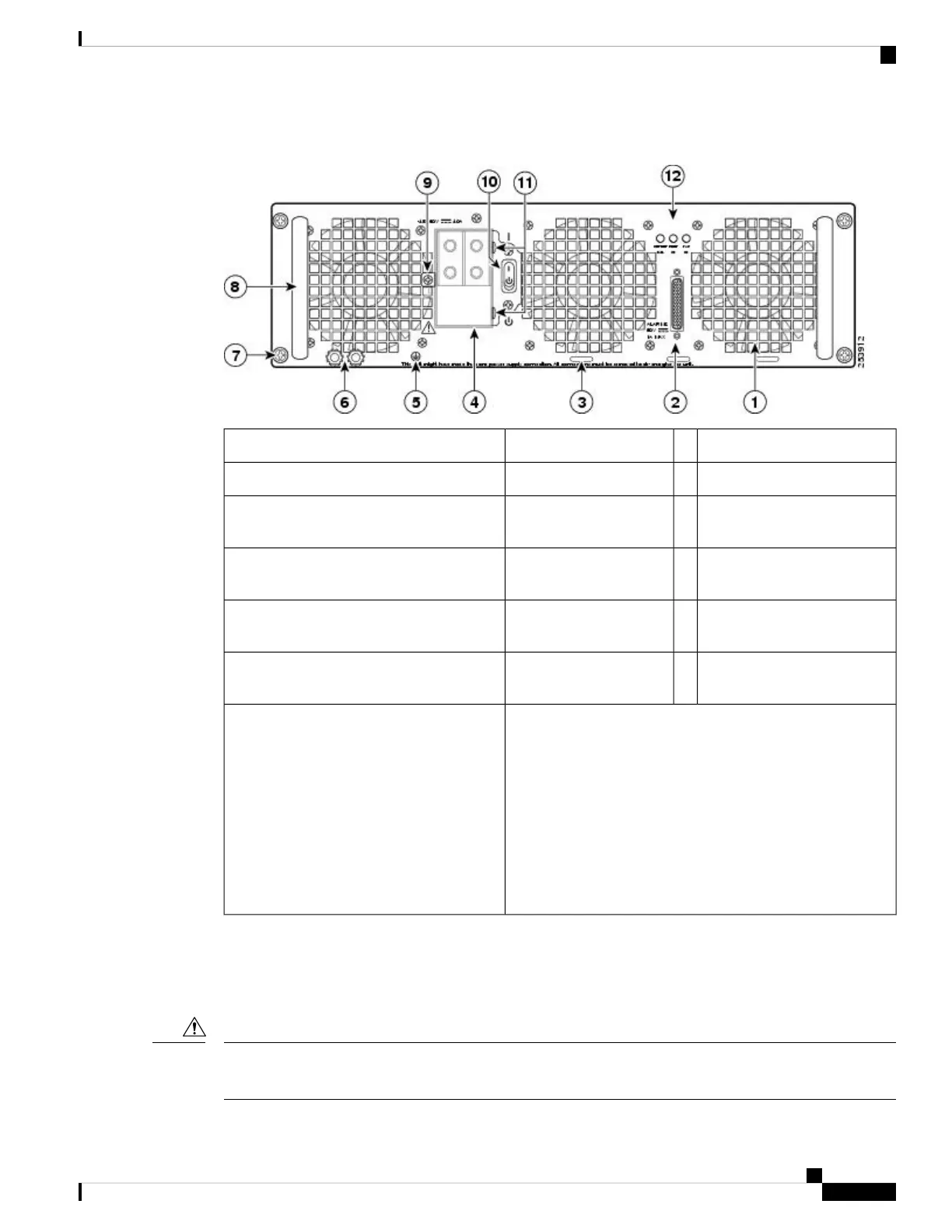

Figure 40: Cisco ASR 1006 Router DC Power Supply (ASR1013/06-PWR-DC)
DC power supply captive screw7Fan1
DC power supply handle8DB-25 alarm connector*2
Terminal block and plastic
cover single screw
9Tie-wrap tab3
On/Off (|/O) circuit breaker
switch
10DC power supply terminal
block and plastic cover
4
Terminal block and plastic
cover slot tab
11Ground symbol5
Power supply LEDs12DC power supply ground
studs
6
*For information about the DB-25 alarm
connector, how it works, and Cisco ASR
1000 route processor LEDs, see the xref
“How Cisco ASR1000-RP Alarm Monitoring
Works” section on page 2-20.
Note: Shielded cables must be used to
connect to the DB-25 alarm connector on
both the AC and DC power supplies, in order
to comply with FCC/EN55022/CISPR22
Class A emissions requirements.
Removing the DC Power Supply from Cisco ASR 1006 Router
Before you can remove a DC power supply from the Cisco ASR 1006 Router, you must remove power from
the power supply. Follow these steps to remove power and the DC power supply from the chassis.
Make certain that the chassis ground is connected before you begin removing and installing the power supply.
For the chassis ground stud location.
Caution
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
63
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing the DC Power Supply from Cisco ASR 1006 Router

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
