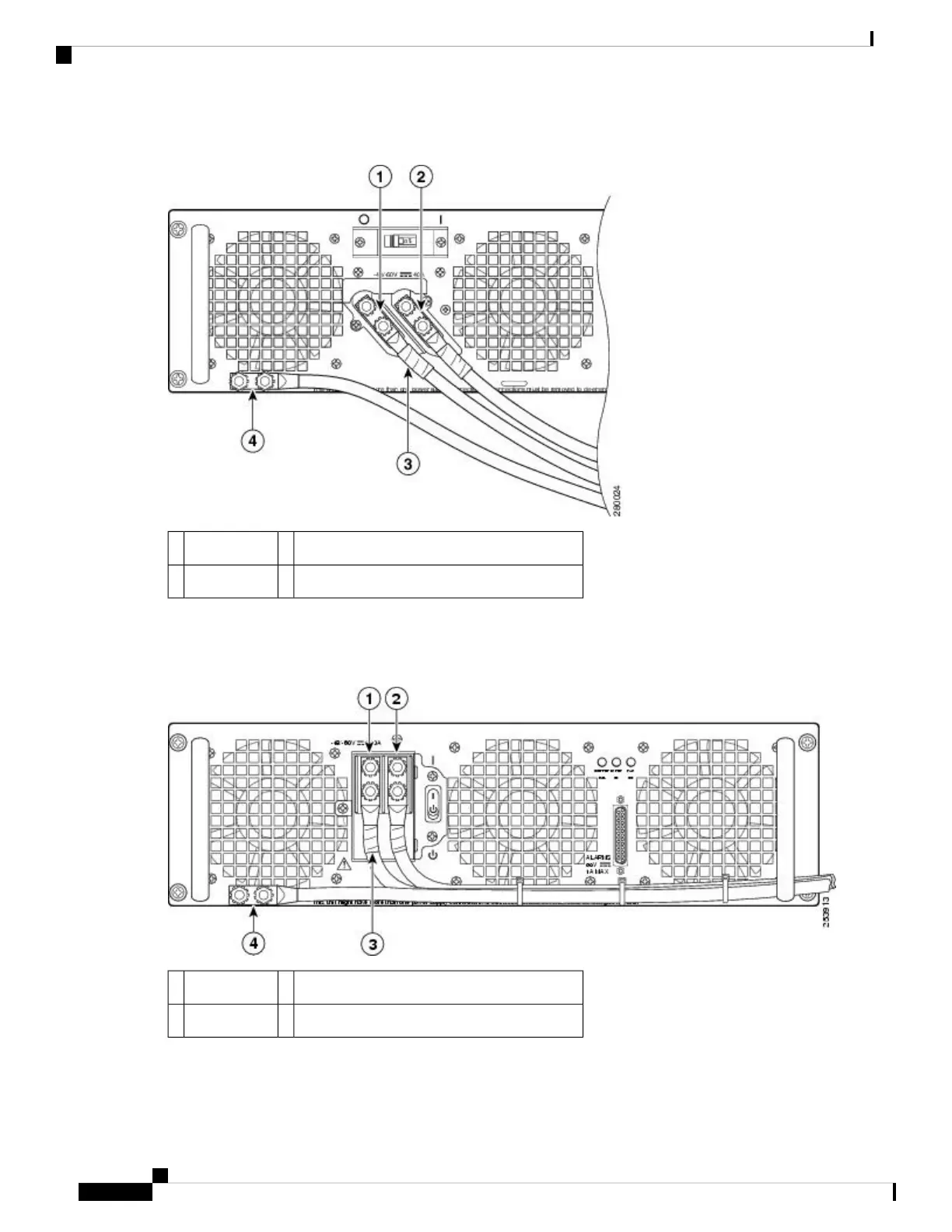

Figure 43: Cisco ASR 1006 Router DC Power Supply Terminal Block Cable Connections
Protective sleeving around the stud and cable3Negative lead1
Ground stud and cable4Positive lead2
The following figure shows the DC power supply terminal block with cables connected for the ASR1013/06-PWR-DC
power supply of the Cisco ASR 1006 Router.
Figure 44: Cisco ASR 1006 Router DC Power Supply (ASR1013/06-PWR-DC) Terminal Block Cable Connections
Protective sleeving around the stud and cable3Negative lead1
Ground stud and cable4Positive lead2
Step 6 Locate the power supply ground stud (see xref fig). Remove the ground (GND) cable from the DC power supply.
Step 7 Loosen and remove the Kepnut screw, washer, and ground lug in that order.
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
66
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing the DC Power Supply from Cisco ASR 1006 Router

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
