Flat washer4DC power supply grounding stud with wire1
Kepnut screw5Grounding screws2
——DC power supply ground symbol3
Step 8 For easier cable-management, insert the positive cable first. Replace the ground lug with cable in the following order:
a) Flat Washer
b) Ground lug with positive wire
c) Kepnut screw
Step 9 Tighten the Kepnut screw (use the screwdriver to tighten the ground screw in the terminal block to a torque of 20+/–2
in-lbs / 2 per.) and repeat the same steps for the negative wires.
Secure the wires coming in from the terminal block so that they cannot be disturbed by casual contact.
Note
Step 10 Use tie wraps to secure the wires, so that the wires are not pulled from the terminal block by casual contact. Ti-wrap
studs are located below the power supply terminal block.
The ground wire must contain a loop when securing it to the tie-wrap tab to prevent it from being pulled out.
Note
Step 11 Replace the terminal block plastic cover, which is slotted and keyed to fit correctly over the terminal block; then tighten
the black screw (use the screwdriver to tighten the screw to a torque of 5 in-lbs / 1 per). See the following figure.

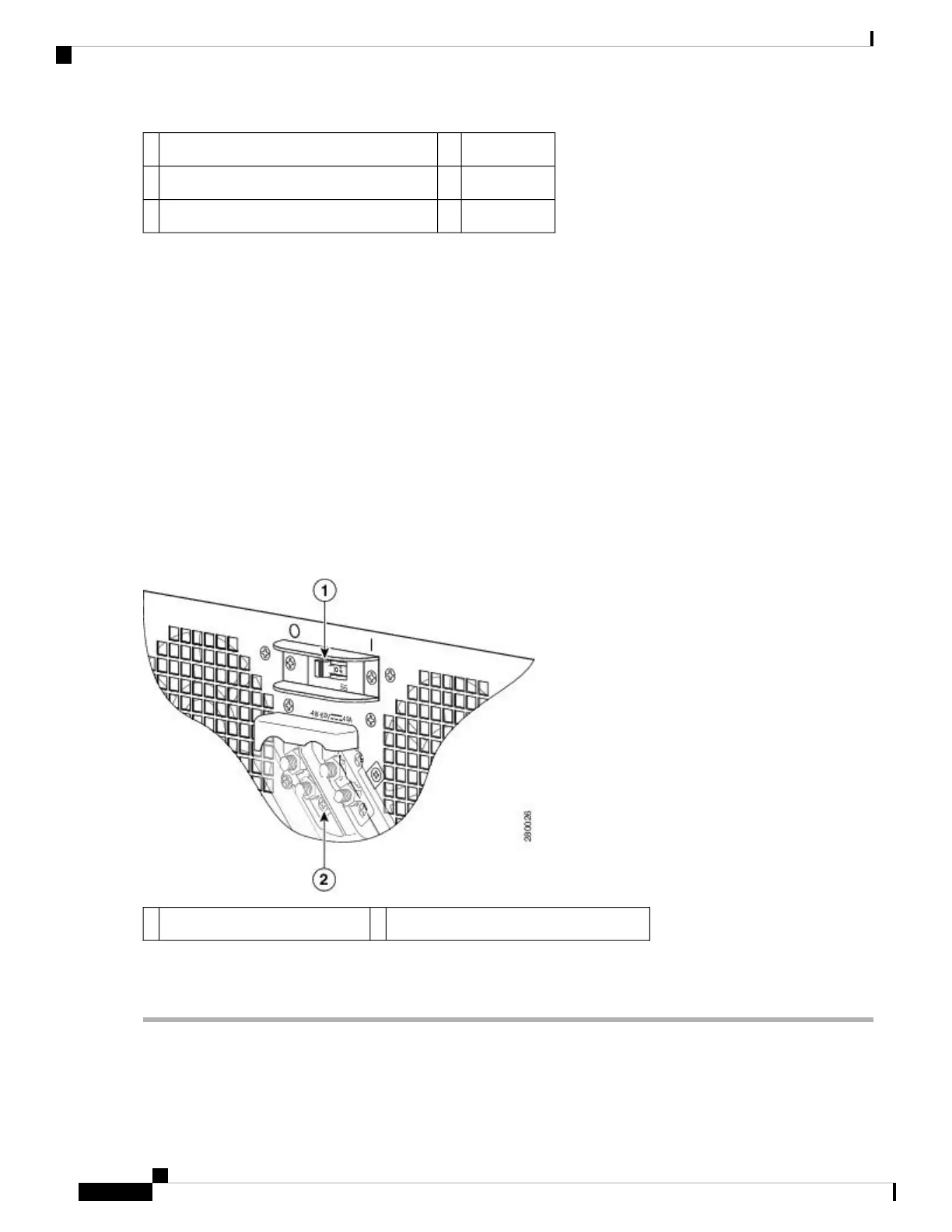

Figure 47: Cisco ASR 1006 Router DC Power Supply Terminal Block Plastic Cover and Switch
Terminal block plastic cover black screw2DC power supply On/Off switch1
Step 12 Remove the tape from the circuit-breaker On/Off switch.
Step 13 Switch the circuit breaker On/Off switch to the On (|) position.
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
70
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Replacing the DC Power Supply in Cisco ASR 1006 Router

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
