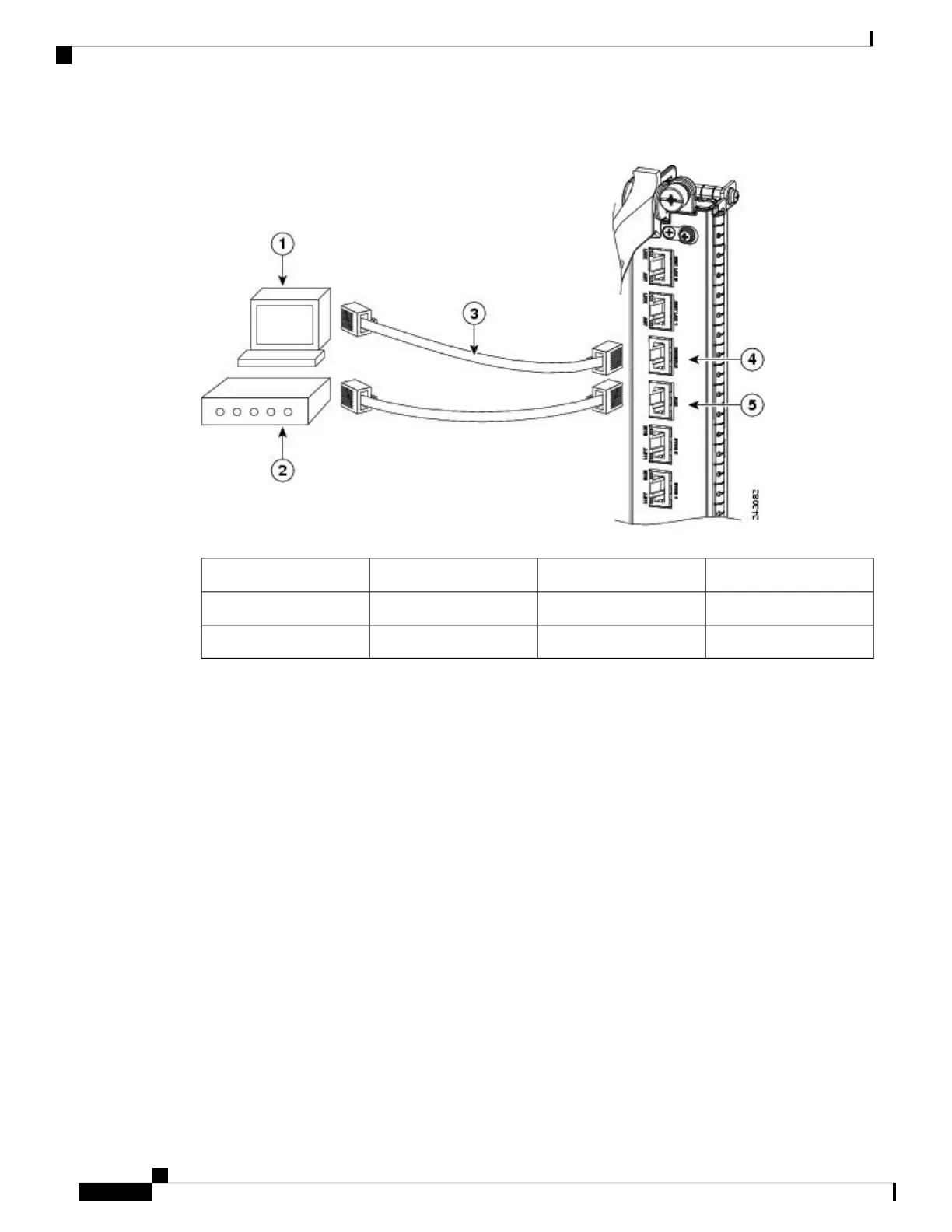

Figure 189: RSP Console and Auxiliary Port Connections
Console port4Console terminal1
Auxiliary (AUX) port5Modem2
RJ-45 Ethernet cables3
The figure below shows an example of an RP with data terminal and modem connections called out.
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
186
Installing Cards and Modules in the Chassis
Connecting Cables to the RSP or RP

Cisco ASR 9000v Specifications

General

Chassis Type	Virtual
Operating System	Cisco IOS XR
Form Factor	Virtual Appliance
Type	Virtual Router
License Required	Yes
Supported Platforms	VMware ESXi, KVM, Microsoft Hyper-V
Interfaces	Virtual Ethernet
High Availability	Yes
Management	CLI, NETCONF
Protocols	BGP, OSPF, IS-IS, MPLS, IPv4, IPv6
Product Family	Cisco ASR 9000 Series
Encryption Support	Yes
