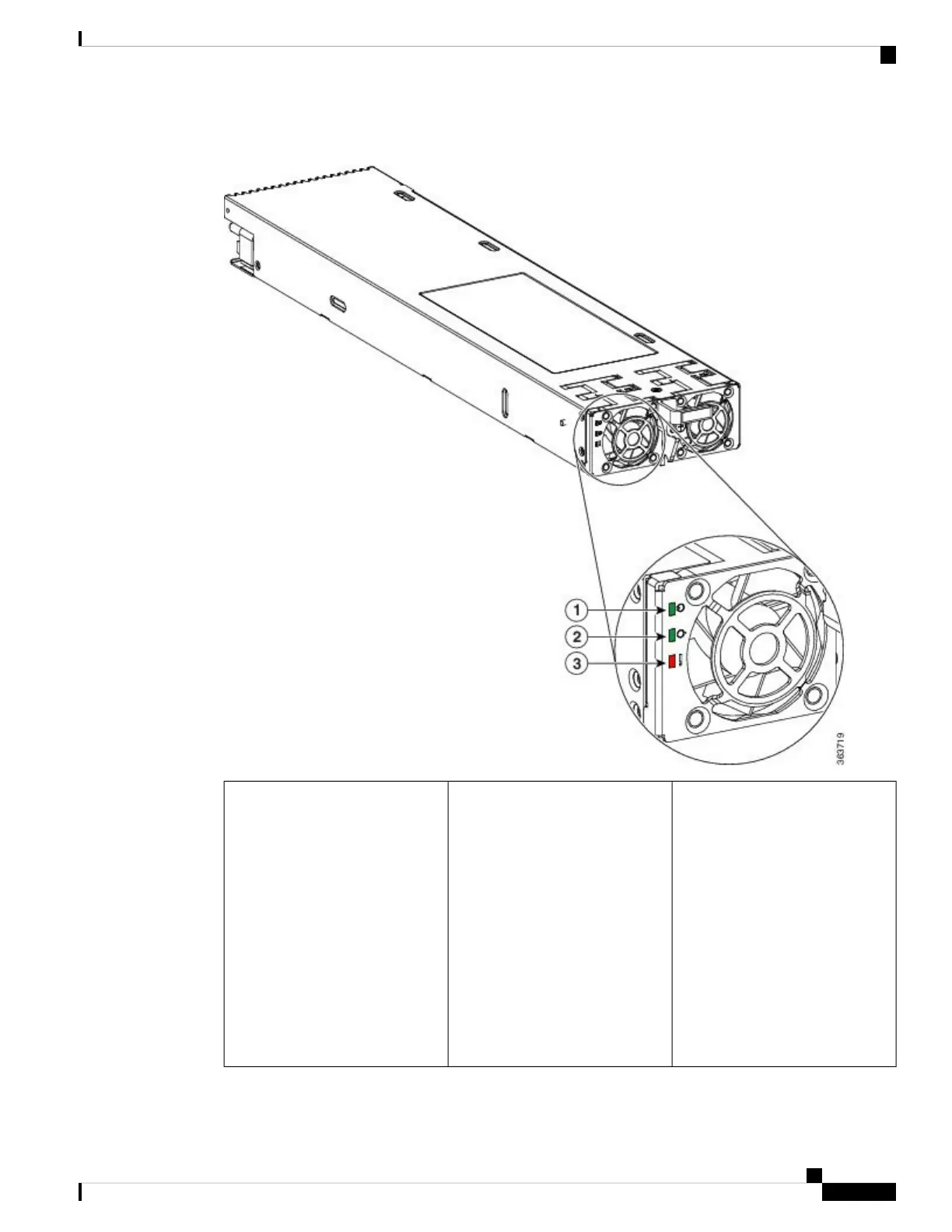

Figure 201: Version 3 DC Power Module Status Indicators
ON continuously when the input
voltage is present and within the
correct range
BLINKING when the input voltage
is out of acceptable range
On the DC power tray,
the Power Input LED is
lit solid green if both
DC feeds are valid and
blinks green if only a
single DC feed is valid.
Note
OFF when no input voltage is
present
Input power LED1
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
209
Troubleshooting the Installation
Troubleshooting the DC Input Power Subsystem
