Cisco ASR 9000v User Manual

• Amber (FAST)—UTI is operating in fast mode.

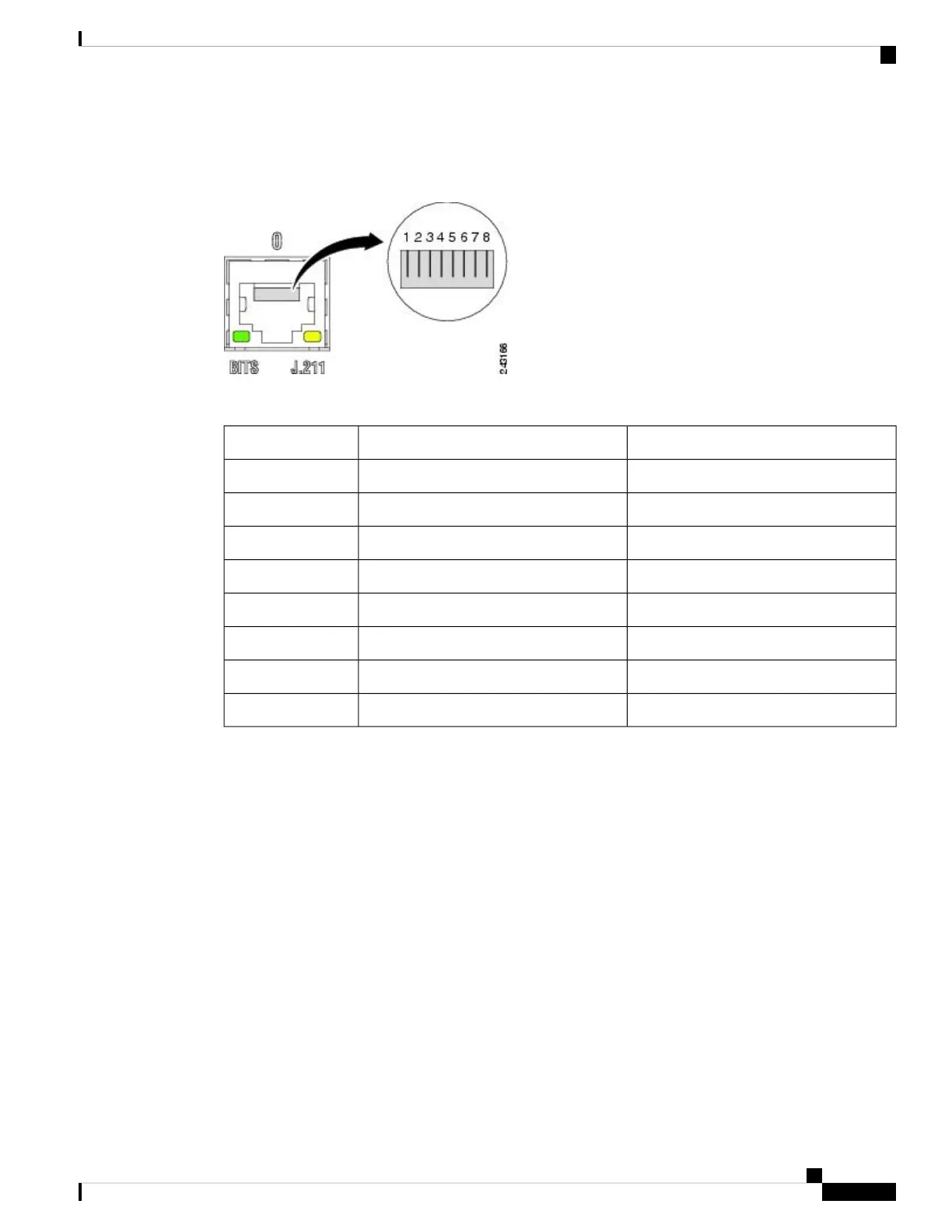

Figure 65: SYNC Port Connector
Table 9: BITS/J.211 Connector Pinout
NoteSignalPin
Bi-direction for DTI, T1/E1/64K InputDTI_P/BITS_RX_P1
Bi-direction for DTI, T1/E1/64K InputDTI_P/BITS_RX_N2
——3
T1/E1/6.321M OutputBITS_TX_P*4
T1/E1/6.321M OutputBITS_TX_N*5
——6
——7
——8
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
53
Preparing for Installation
Sync Port Connection Guidelines

Cisco ASR 9000v Specifications

General

Chassis Type	Virtual
Operating System	Cisco IOS XR
Form Factor	Virtual Appliance
Type	Virtual Router
License Required	Yes
Supported Platforms	VMware ESXi, KVM, Microsoft Hyper-V
Interfaces	Virtual Ethernet
High Availability	Yes
Management	CLI, NETCONF
Protocols	BGP, OSPF, IS-IS, MPLS, IPv4, IPv6
Product Family	Cisco ASR 9000 Series
Encryption Support	Yes
