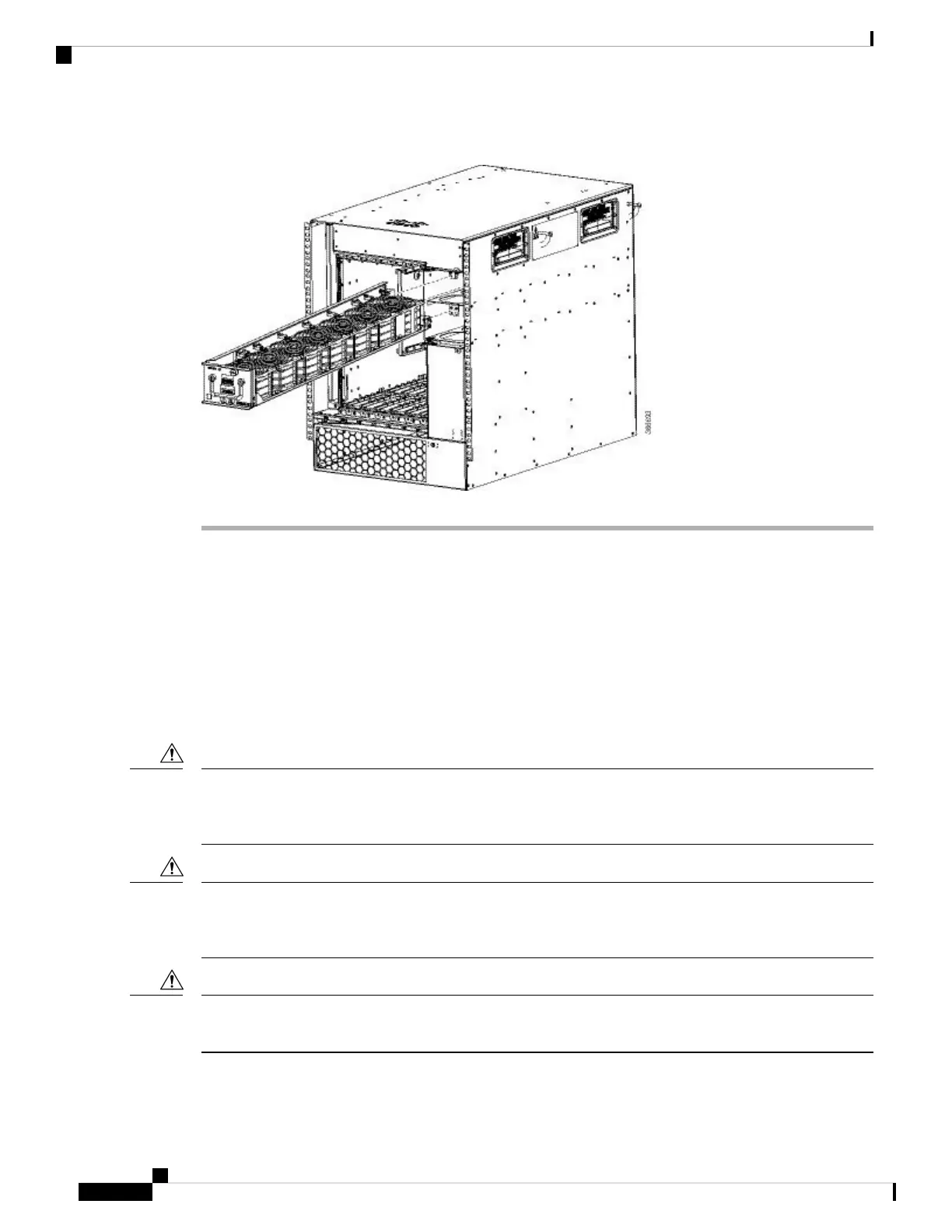

Figure 19: Removing or Installing the Fan Tray on the Cisco ASR 9906 Router Chassis
Removing Cards from the Chassis
To reduce additional weight from the chassis, you can remove all Route Switch Processor (RSP), Route
Processor (RP), Switch Fabric Card (FC), shared port adapter (SPA), SPA interface processor (SIP), and line
cards (LCs).
This section describes how to remove the RSP cards, RP cards, FCs, and LCs. For information about removing
SPA and SIP cards, see:
Cisco ASR 9000 Series Aggregation Services Router SIP and SPA Hardware Installation Guide
Handle all cards by the metal card carrier edges only; avoid touching the board or any connector pins. After
removing a card, carefully place it in an antistatic bag or similar environment to protect it from ESD and dust
in the optic ports (fiber-optic line cards).
Caution
Be careful to avoid damaging the electromagnetic interference (EMI) gasket that runs along the full height of
the card front panel edge. Damage to the EMI gasket can affect the ability of your system to meet EMI
requirements.
Caution
To avoid damaging card mechanical components, never carry a card by the captive installation screws or
ejector levers. Doing so can damage these components and cause card insertion problems.
Caution
Unpacking and Installing the Chassis
26
Unpacking and Installing the Chassis
Removing Cards from the Chassis

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
