Cisco ASR 9010 Unpacking And Installing

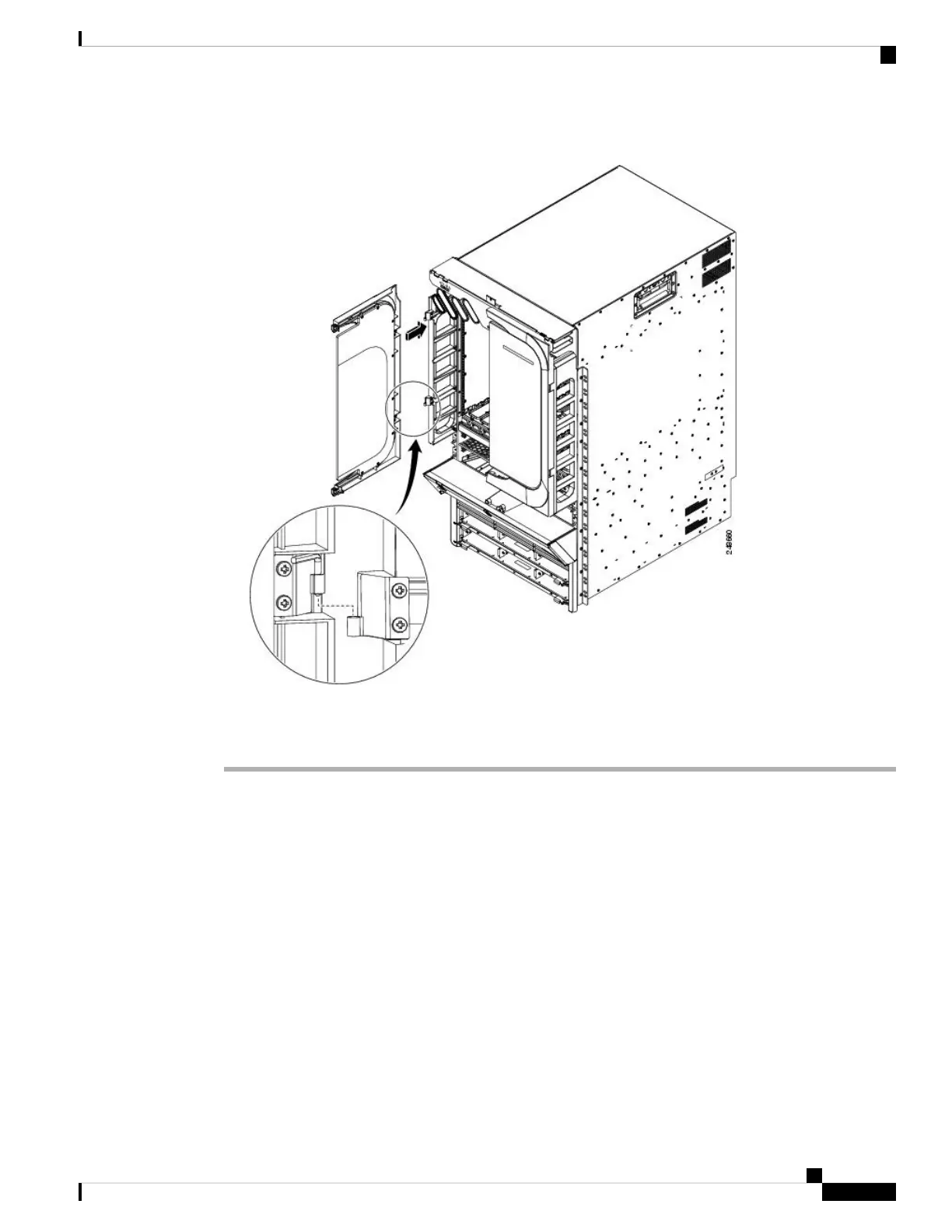

Figure 73: Installing Optional Chassis Accessory Doors on the Cisco ASR 9010 Router
Step 9 Install the front grill (item 8 in the Step 4, on page 71 by aligning and engaging it to the bottom two ball studs
and pressing it in.
Installing Base Chassis Accessories on the Cisco ASR 9006 Router
The base chassis accessories for the Cisco ASR 9006 Router include:
• One plastic fan tray door accessory piece
• Two metal mounting brackets (left and right)
• Two chassis side brackets (left and right)
• Two plastic chassis corner pieces (left and right)
• Two screws for attaching the plastic fan tray door accessory piece
• Six screws for attaching the metal mounting brackets
• Six screws for attaching the side brackets
Unpacking and Installing the Chassis
75
Unpacking and Installing the Chassis
Installing Base Chassis Accessories on the Cisco ASR 9006 Router

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
