Cisco ASR 9010 Unpacking And Installing

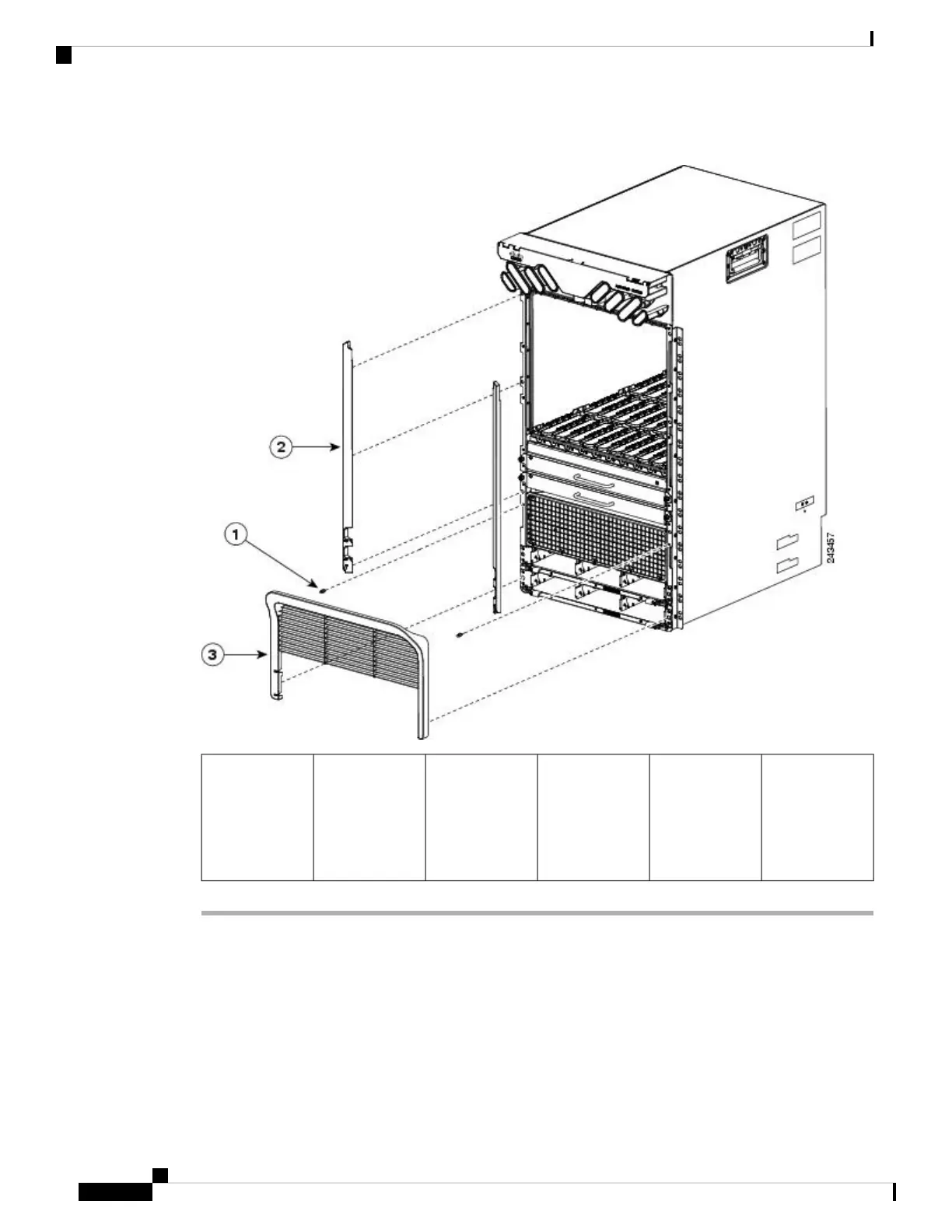

Figure 69: Installing Base Chassis Accessories on the Cisco ASR 9010 Router
Accessory grill
attaches to front
chassis edge by
attaching to ball
studs.
3Two side strips
attach to front
chassis edge
(one per side).
2Two are ball
studs inserted in
front chassis
edge threaded
holes next to
chassis grill
1
Installing Optional Chassis Accessories on the Cisco ASR 9010 Router
The optional chassis accessories for the Cisco ASR 9010 Router include:
• Six ball studs
• Two L-shaped brackets
• Two hinge brackets (left and right side)
Unpacking and Installing the Chassis
70
Unpacking and Installing the Chassis
Installing Optional Chassis Accessories on the Cisco ASR 9010 Router

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
