Cisco ASR 9010 Unpacking And Installing

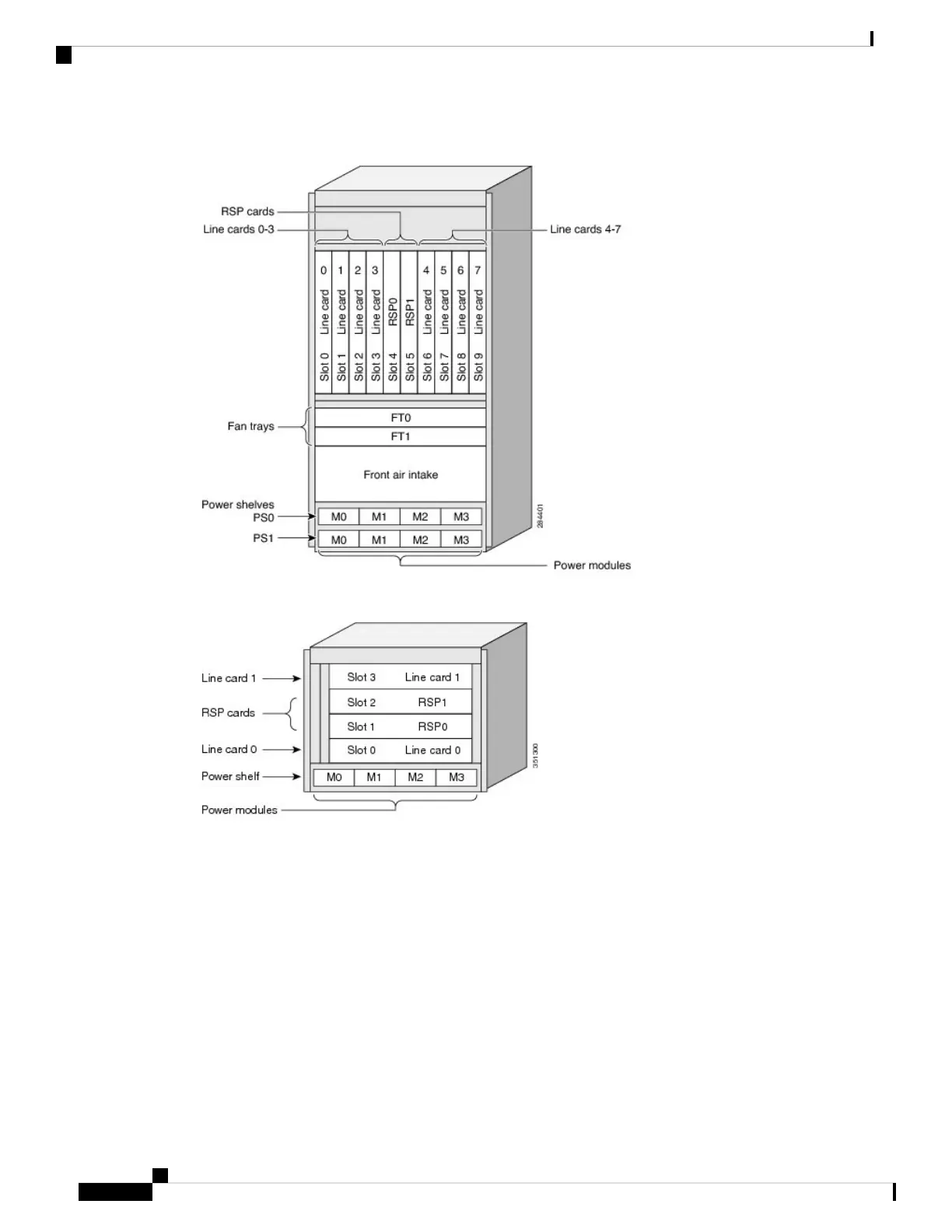

Figure 23: Cisco ASR 9010 Router Components and Slot Numbering with Version 2 Power System or Version 3 DC Power System
Figure 24: Cisco ASR 9904 Router Components and Slot Numbering with Version 2 DC Power System
Unpacking and Installing the Chassis
30
Unpacking and Installing the Chassis
Removing RSP Cards and Line Cards from the Cisco ASR 9006, 9010, 9904, 9906, and 9910 Routers

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
