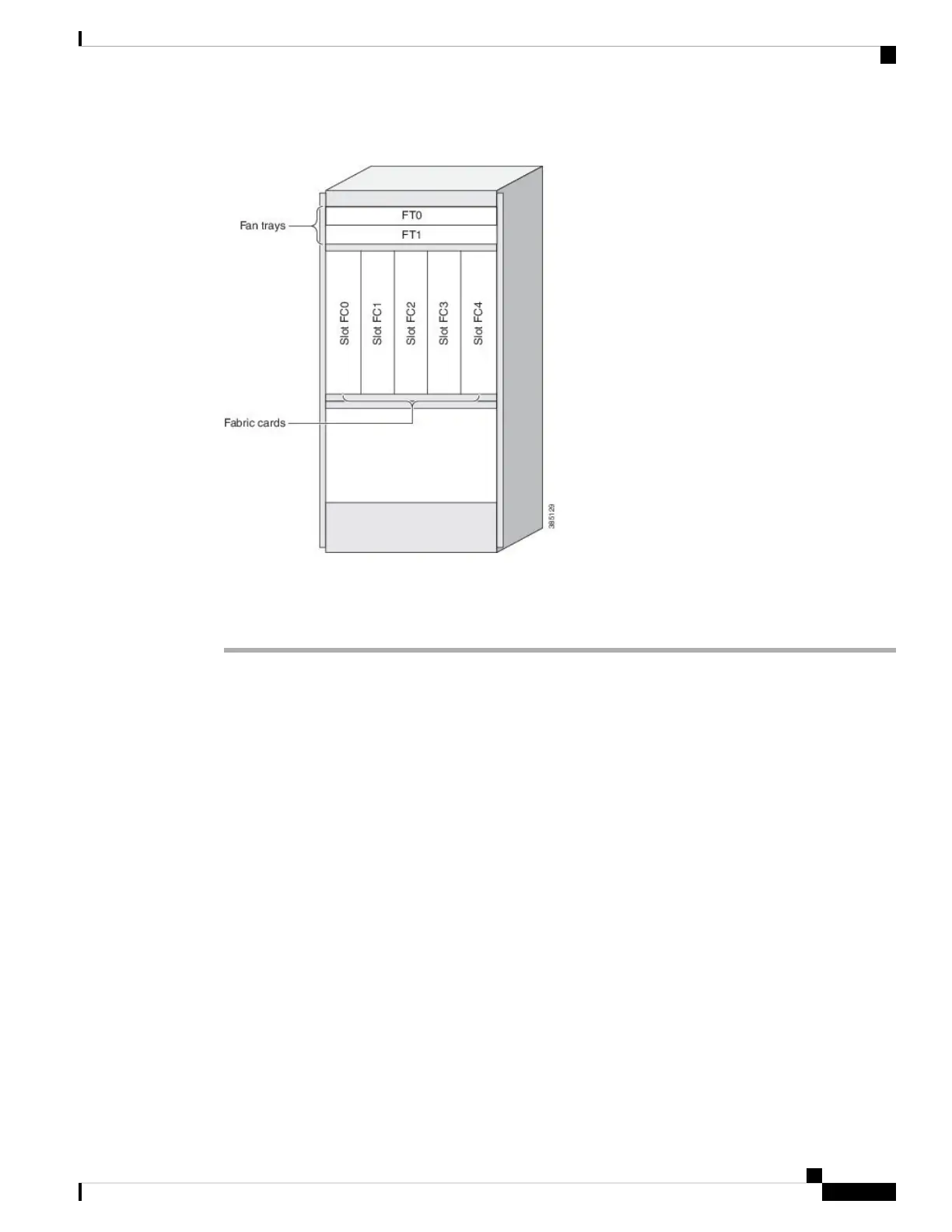

Figure 29: Cisco ASR 9910 Router Components and Slot Numbering for Fabric Cards
Follow these steps to remove RSP and line cards from the chassis.
Procedure
Step 1 Refer to the above figures to identify each card and write down the card type and slot number on a piece of
paper. You will need this information when you reinstall the cards in the chassis to be sure you reinstall each
card in its original slot.
Step 2 To remove a card starting at the lowest numbered slot:
a) Use a screwdriver to loosen the captive screws at the ends of the line card front panel.
b) Pivot the ejector levers to unseat the card from the backplane connector.
c) Slide the card out of the slot and place it directly into an antistatic bag or other ESD-preventive container.
Unpacking and Installing the Chassis
33
Unpacking and Installing the Chassis
Removing RSP Cards and Line Cards from the Cisco ASR 9006, 9010, 9904, 9906, and 9910 Routers

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
