Cisco ASR 9010 Unpacking And Installing

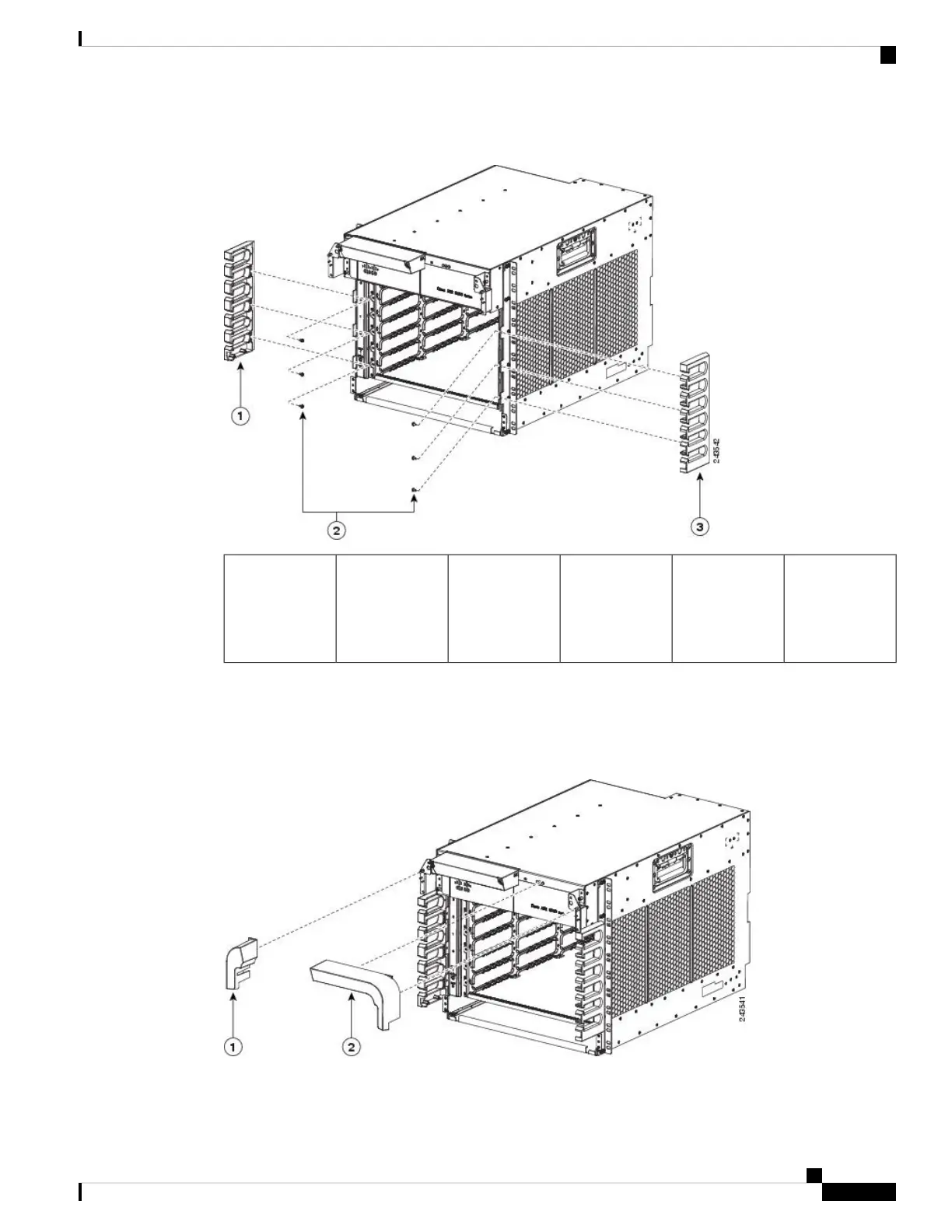

Figure 75: Installing Chassis Side Brackets on the Cisco ASR 9010 Router
Right chassis
side bracket
3Six screws for
attaching the
chassis side
brackets (three
per side)
2Left chassis side
bracket
1
Step 5 Attach the left plastic corner piece to the mounting bracket at the front upper left corner of the chassis (see
the figure below).
Step 6 Attach the right plastic corner piece to the mounting bracket at the front upper right corner of the chassis.
Figure 76: Installing Plastic Chassis Corners on the Cisco ASR 9006 Router (Base Accessories Installation)
Unpacking and Installing the Chassis
77
Unpacking and Installing the Chassis
Installing Base Chassis Accessories on the Cisco ASR 9006 Router

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
