Virtual Private LAN Service - VPLS
▀ H-VPLS with Ethernet Q-in-Q Access
▄ Cisco ASR 903 Router Design and Deployment Guide
72
OL-30526-01
interface GigabitEthernet0/0/7
service instance 2 ethernet evc30
encapsulation dot1q 30
bridge-domain 30
H-VPLS with Ethernet Q-in-Q Access
In a flat or non-hierarchical VPLS configuration, a full mesh of pseudowires (PWs) is needed between all PE
nodes. Hierarchical Virtual Private LAN Service (H-VPLS) reduces both signaling and replication overhead by
using a combination of full-mesh and hub-and-spoke configurations.

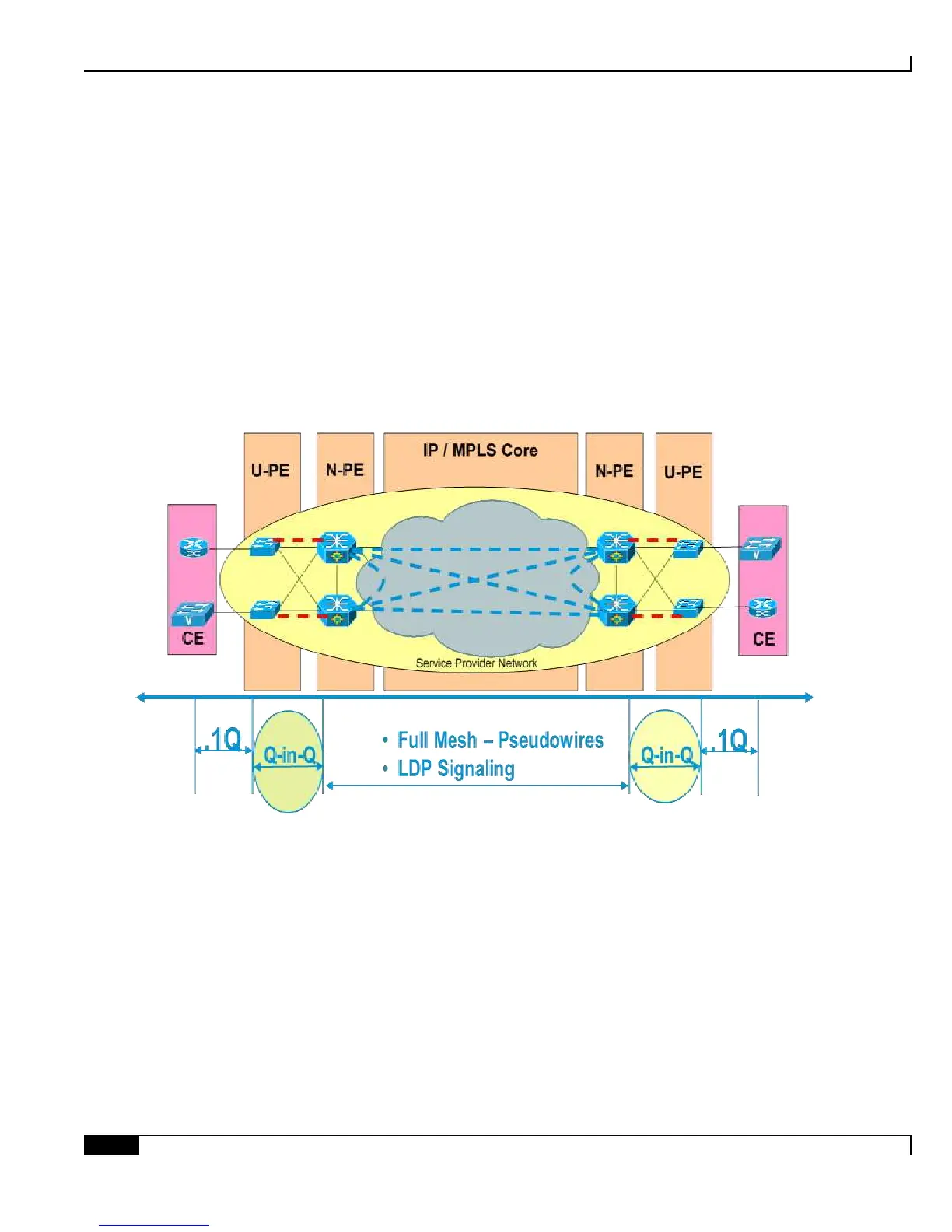

Figure 12. H-VPLS with Ethernet Q-in-Q Access
In the example below, U-PE device will add S-Tag 30 on top of customer vlan 10. N-PE device is only aware of S-
TAG 30.
U-PE(ASR903)
! To CE interface, C- tag 10
interface GigabitEthernet0/0/2
service instance 1 ethernet
encapsulation dot1q 10
bridge-domain 10
! Interface to N-PE
! S-TAG 30 is added on top of C-tag 10
interface GigabitEthernet0/0/1
service instance 3 ethernet
encapsulation dot1q 30 second-dot1q 10

Cisco ASR 903 Specifications

General

Form Factor	Modular
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5% to 95% non-condensing
Redundancy	Yes, redundant power supplies and route processors
Operating System	Cisco IOS XE
Power Supply	AC or DC
Switching Capacity	240 Gbps
Operating Temperature	-40°C to 65°C (-40°F to 149°F)
MTBF	200, 000 hours
Supported Protocols	IPv4, IPv6, MPLS, L2VPN, L3VPN
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, T1/E1
