Cisco ASR-920-10SZ-PD - Assembling and Connecting the DC Power Cable to the Router

Assembling and Connecting the DC Power Cable to the Router
Materials Required
•
Three-meter long over-molded power cable marked with positive, negative, and grounding.

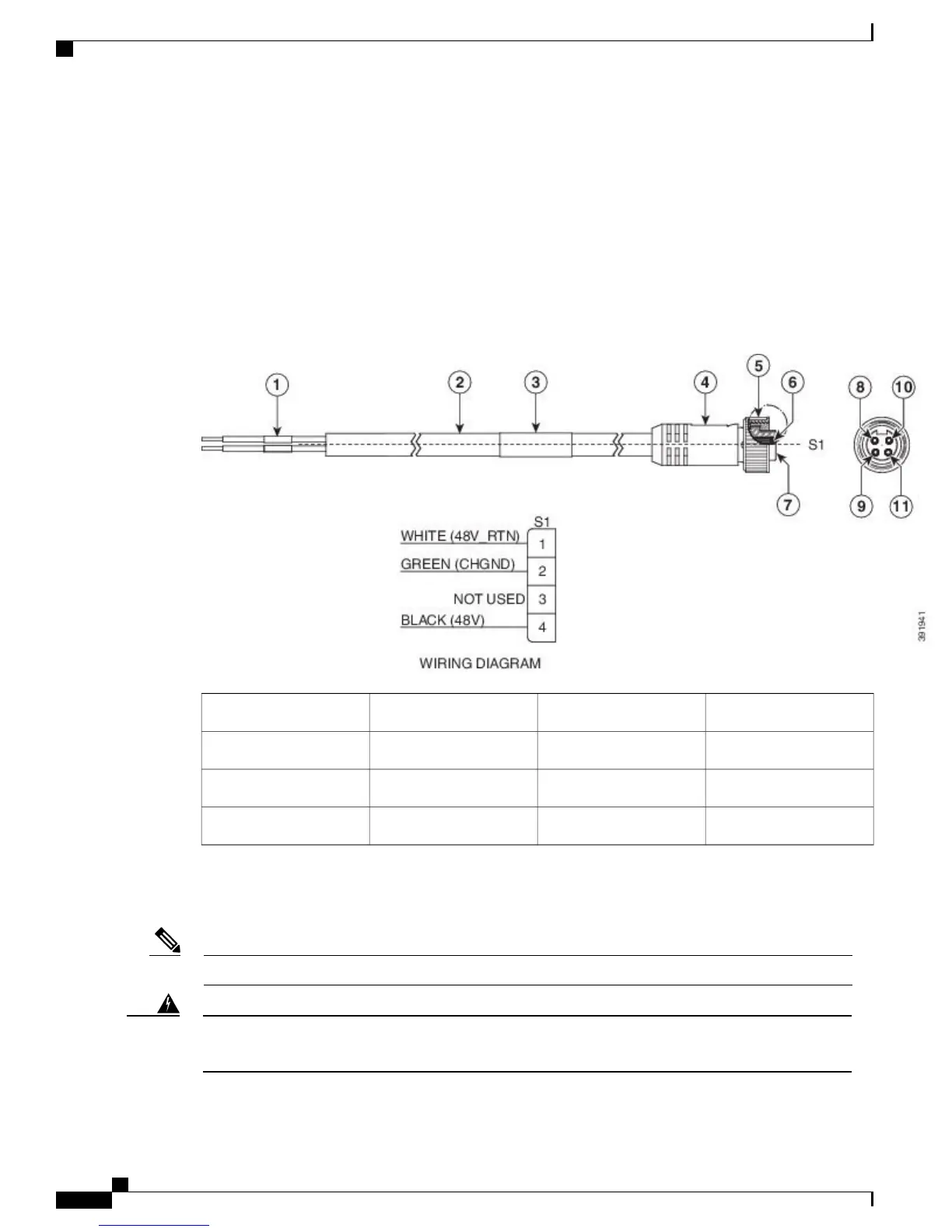

Figure 7: Four-pin Power Connector
Coupling nut5DC plug1
Contact socket6Cable2
Insulator7Wrap label3
Contacts8, 9, 10, 11Overmold4
When installing DC power supply, use 14 AWG, 90°C wires. Always ensure that the building’s installation
for short-circuit (overcurrent) protection does not exceed 15A.
A circuit breaker of maximum 15 A should be used.Note
A readily accessible two-poled disconnect device must be incorporated in the fixed wiring. Statement
1022
Warning
Cisco ASR 920-10SZ-PD Aggregation Services Router Hardware Installation Guide
10
Installing the Cisco ASR-920-10SZ-PD Router
Assembling and Connecting the DC Power Cable to the Router
