SUMMARY STEPS
1.
Remove the two-hole lug from the router.
2.
Set the parts aside.
3.
If your ground wire is insulated, use a wire-stripping tool to strip the ground wire to 0.5 inch ± 0.02 inch
(12.7 mm ±0.5 mm) for the ring terminal (see the following figure)
4.
Slide the open end of your 2-hole ground lug over the exposed area of the ground wire.
5.
Using a crimping tool (as specified by the ground lug manufacturer), crimp the ground lug to the ground
wire as shown in figure below.
6.
Use a Phillips head screwdriver to attach the 2-hole ground lug and wire assembly to the router with the
2 pan-head Phillips head screws.
7.
Connect the other end of the ground wire to a suitable grounding point at your site.
DETAILED STEPS
Step 1
Remove the two-hole lug from the router.
Step 2
Set the parts aside.
Step 3
If your ground wire is insulated, use a wire-stripping tool to strip the ground wire to 0.5 inch ± 0.02 inch (12.7 mm ±0.5
mm) for the ring terminal (see the following figure)

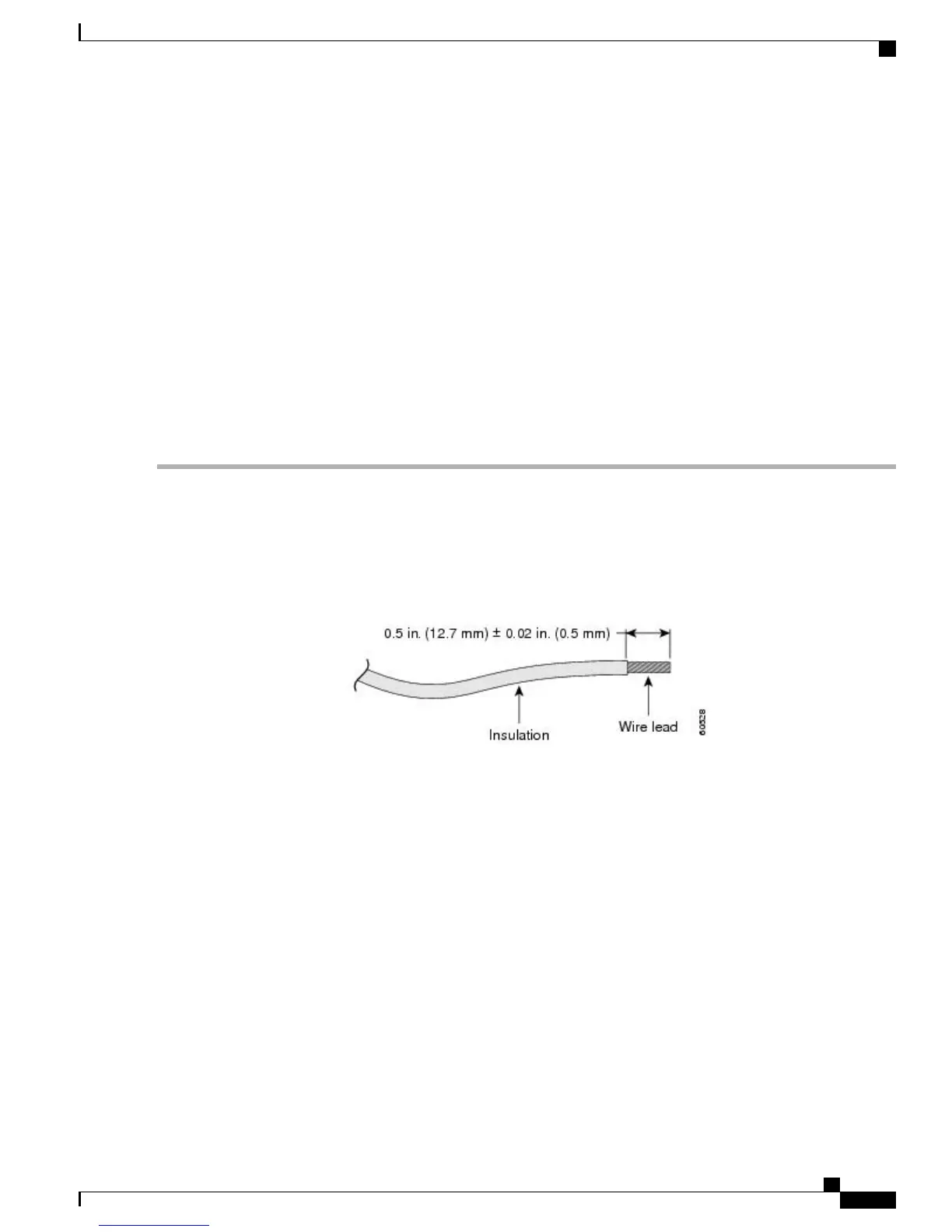

Figure 5: Stripping a Ground Wire
Cisco ASR 920-10SZ-PD Aggregation Services Router Hardware Installation Guide
7
Installing the Cisco ASR-920-10SZ-PD Router
Grounding the Router
