Cisco ASR-920-24SZ-IM, ASR-920-24SZ-M, ASR-920-24TZ-M Aggregation Services Router Hardware Installation Guide
Chapter 1 Overview
Cisco ASR 920 Series Routers Features

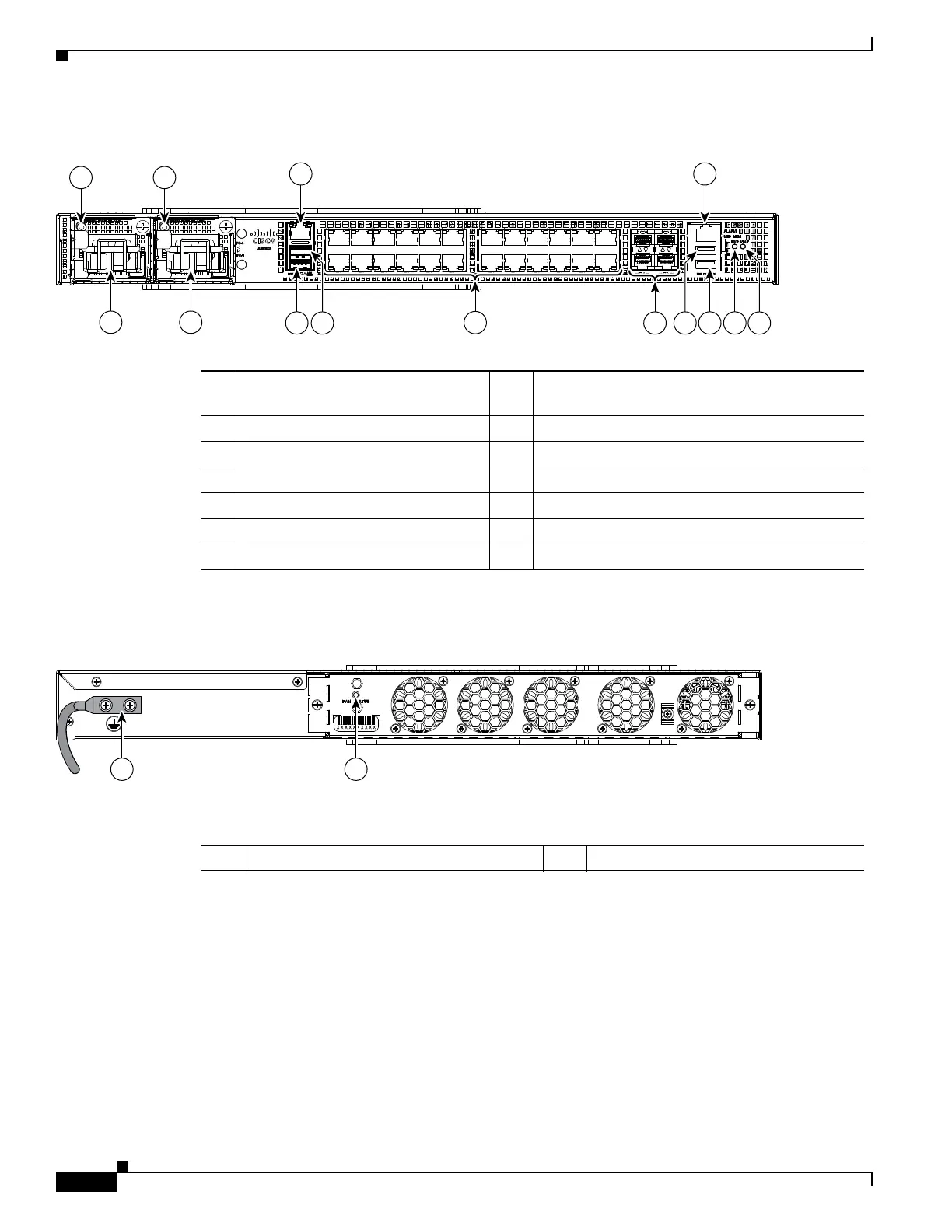

Figure 1-7 Front Panel of Cisco ASR-920-24SZ-M, ASR-920-24TZ-M Router
Figure 1-8 Back Panel of Cisco ASR-920-24SZ-M, ASR-920-24TZ-M Router
1 3
5
6
12
11
2 4
8
7 1091314
391972
1 Power Supply 0 (AC or DC)
8 24x1GE SFP Fiber (Cisco ASR-920-24SZ-M)
24x1GE SFP Copper (Cisco ASR-920-24TZ-M)
2 Power Supply 0 LED (AC or DC) 9 4x10GE SFP+
3 Power Supply 1 (AC or DC) 10 USB Memory port
4 Power Supply 1 LED (AC or DC) 11 Alarm port
5 Console port (TIA/EIA-232F) 12 USB Console port
6 Management port 13 Board power LED
7 Auxiliary Console port 14 System Status LED
21
391973
1 Grounding lugs 2 Fan status LED
