Cisco ASR-920-24SZ-IM, ASR-920-24SZ-M, ASR-920-24TZ-M Aggregation Services Router Hardware Installation Guide
Chapter 3 Installing
Installing the Router in a Rack
Attaching the Cable Guides
The Cisco ASR-920-24SZ-IM Router supports the following cable guides:
• A920-CBL-GUIDE (left and right)—help in routing the cables from all components on the front
panel thereby enabling a proper cable-bending radius.
Note If the chassis is mounted using 19-inch brackets, you must assemble the cable guides before installing
the chassis on the rack.
To install the cable guides, perform these steps:
Step 1 Position the cable guide-left and cable guide-right against the front of the chassis and align the four
screw holes, as shown in Figure 3-9 for 19-inch rack and Figure 3-10 for other racks using standard kit.
Step 2 Secure the cable guides with the four M6x12mm screws supplied with the cable kit. The recommended
maximum torque is 3N-m.

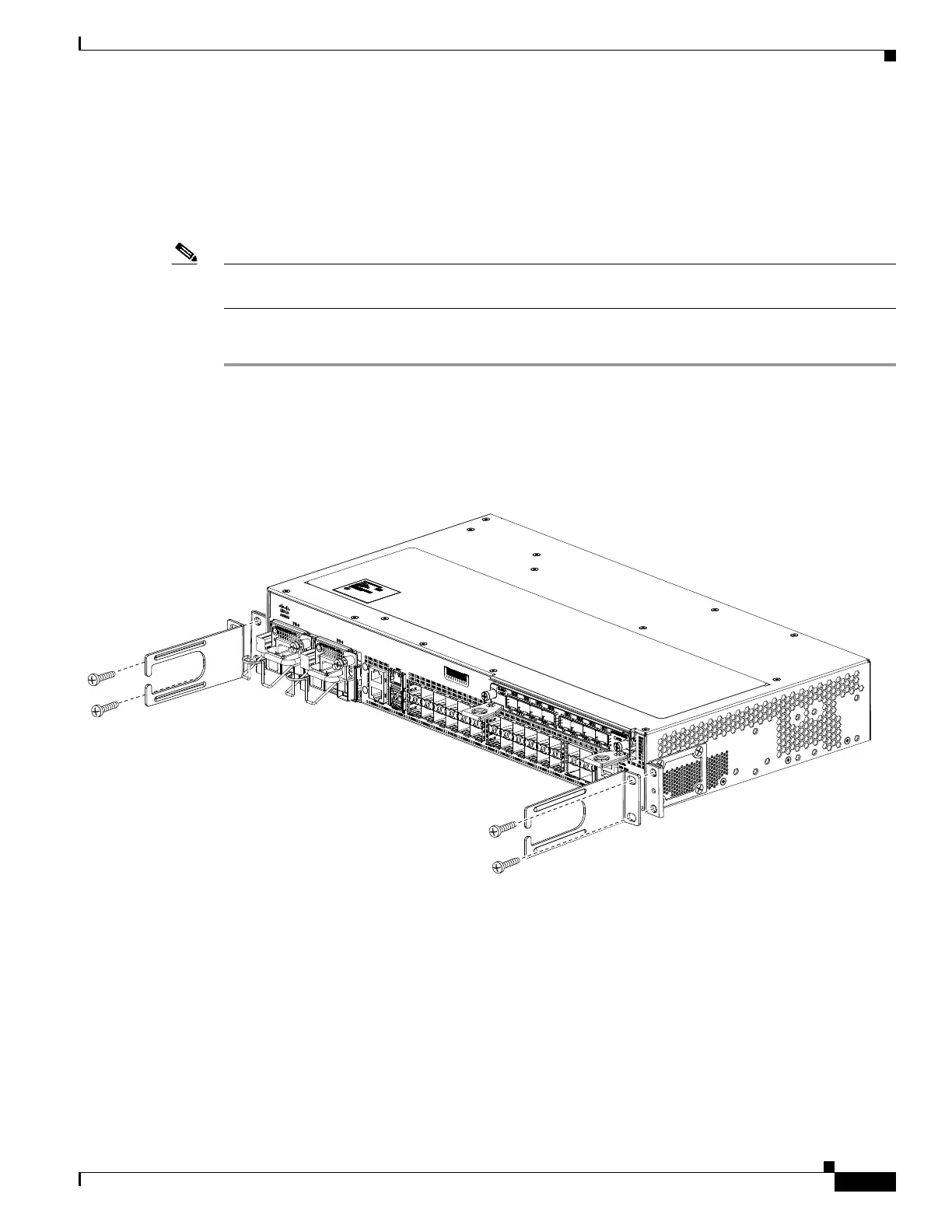

Figure 3-9 Cable Guide Installation On Cisco ASR-920-24SZ-IM Router For 19-inch Rack Brackets
391984
