Cisco C1121 8PLTEPW Series User Manual

For more information on the features and specifications of Cisco 1100 Series Integrated Services Routers
(ISRs), refer to the Cisco 1000 Series Integrated Services Routers Solution Overview document and Cisco
1000 Series Integrated Services Routers datasheet.
Chassis Views
This section contains front and back panel views of the C1100 Series ISR-showing locations of the power
and signal interfaces, interface slots, status indicators, and chassis identification labels.

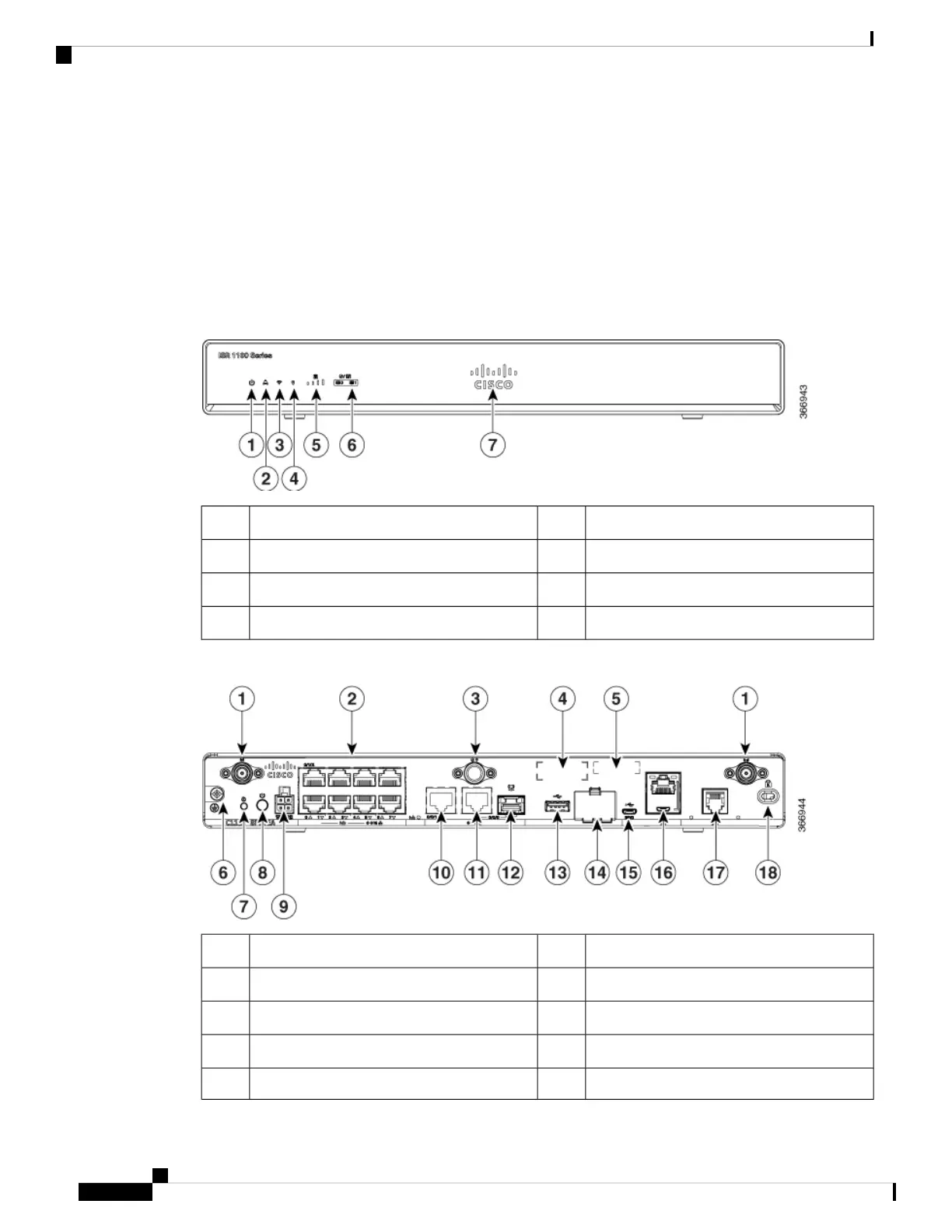

Figure 1: C111x Series - Bezel View
VPN2Status1
GPS4WiFi3
LTE Data/SIM6LTE Signal Intensity5
Illuminated Cisco Logo7
Figure 2: C111x-8P - I/O View
Ethernet Switch2LTE Antennas – Main and Diversity1
CLEI Label4GPS Connection3
Grounding6Serial Number5
Power Switch8Reset Button7
GE 0/0/1104-pin Power Connector9
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
4
Overview of Cisco 1000 Series Integrated Services Routers
Chassis Views

Cisco C1121 8PLTEPW Series Specifications

General

LAN Ports	8
LTE Support	Yes
Integrated Power over Ethernet (PoE)	Yes
Form Factor	Desktop
Product Type	Router
Connectivity Technology	Wired, Wireless
Frequency Band	2.4 GHz, 5 GHz
Wireless Protocol	802.11a/b/g/n/ac
Product Series	C1121
Model	C1121-8PLTEPW
Device Type	Wireless router
Wireless LAN	Yes
Flash Memory	4 GB
DRAM Memory	4 GB
Operating System	Cisco IOS XE
WAN Ports	1
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Interfaces	1 x WAN - RJ-45, 8 x LAN - RJ-45
Features	Firewall protection, VPN support, VLAN support, Quality of Service (QoS), IPv6 support
