Cisco C1121 8PLTEPW Series - Page 14

Non-illuminated Cisco logo1

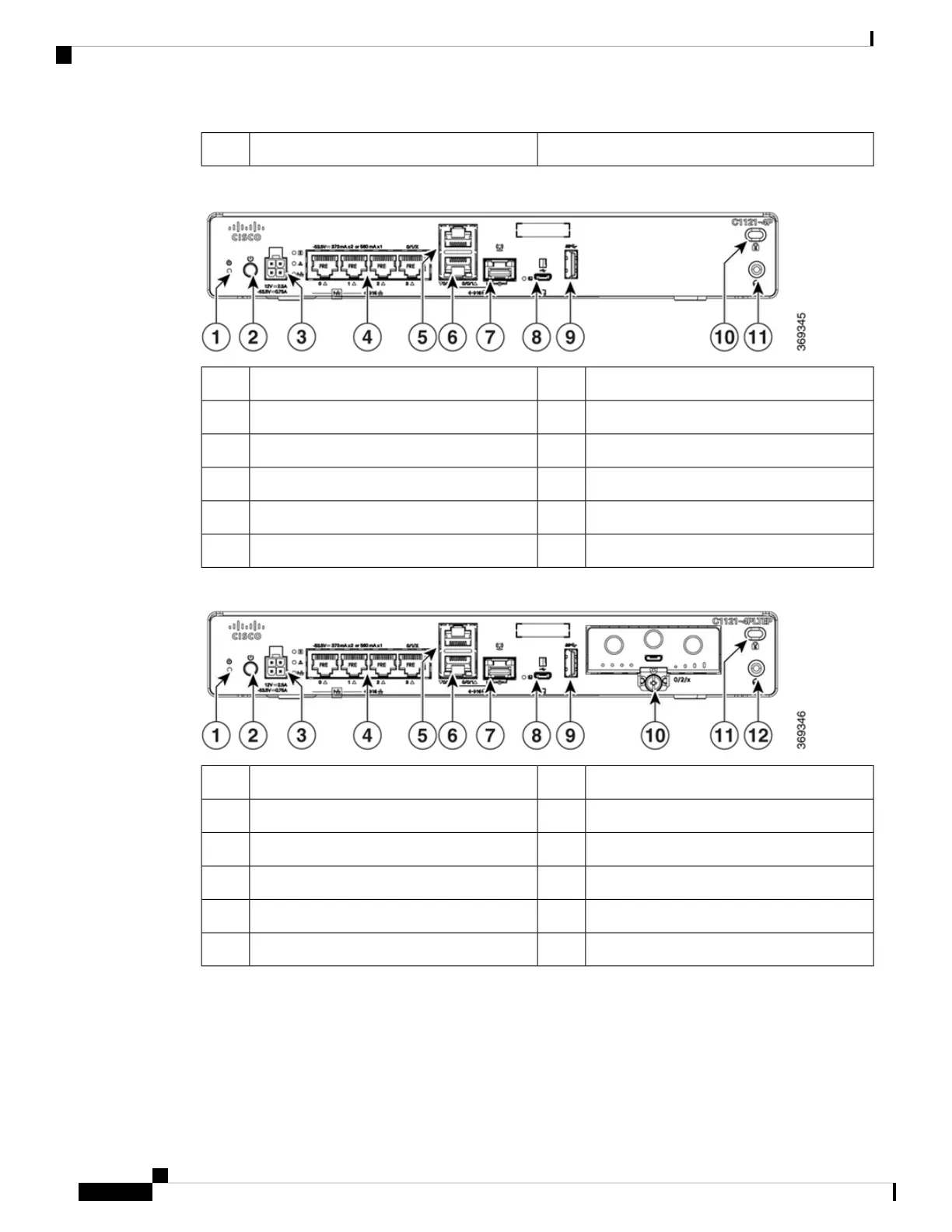

Figure 11: C1121-4P I/O View
Power Switch2Reset Button1
Ethernet Switch44-pin Power Connector3
GE WAN 0/0/0 -RJ456RJ-45 Stacked Connector5
Micro-USB console8GE WAN 0/0/0 -SFP7
Kensington Lock Slot10USB 3.09
Grounding11
Figure 12: C1121-4PLTEP I/O View
Power Switch2Reset Button1
Ethernet Switch44-pin Power Connector3
GE WAN 0/0/0 -RJ456GE 0/0/15
Micro-USB console8GE WAN 0/0/0 -SFP7
Pluggable10USB 3.09
Grounding12Kensington Lock Slot11
