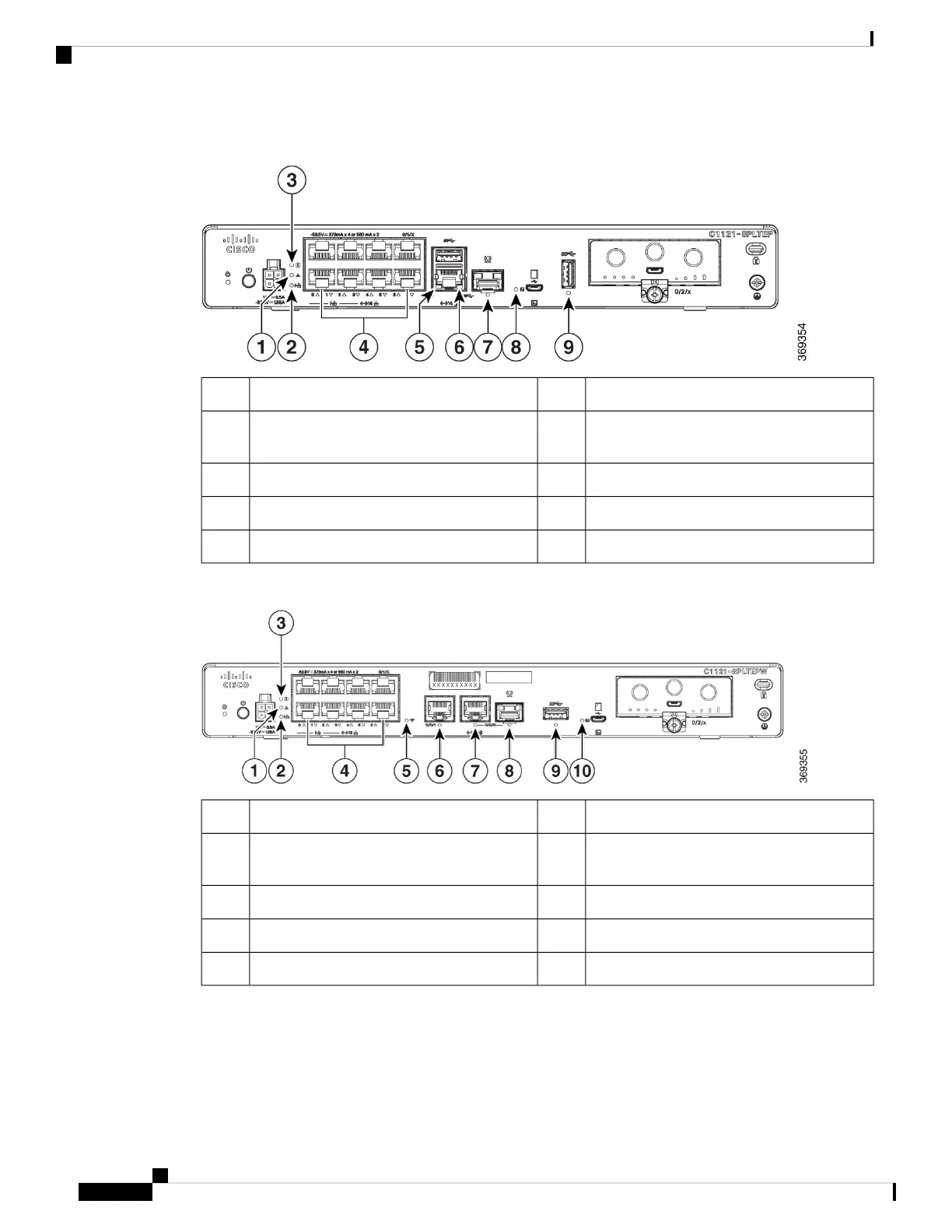

Figure 26: Cisco 11x1(X)-8P/ C11x1(X)-8PLTEP LED Indicators
PoE LED2VPN1
Ethernet Switch Ports 0-7 (0,2,4,6 at the top
and 1,3,5,7 at the bottom)
4Status3
GE 0/0/1 LED6GE 0/0/0 RJ45 LED5
Micro USB Console LED8GE 0/0/0 RJ45 LED7
USB LED9
Figure 27: Cisco 11x1(X)-8PLTEPWx LED Indicators
PoE LED2VPN1
Ethernet Switch Ports 0-7 (0,2,4,6 at the top
and 1,3,5,7 at the bottom)
4Status3
GE 0/0/0 RJ45 LED6Wi-Fi5
GE 0/0/0 SFP LED8GE 0/0/1 LED7
Micro USB Console LED10USB LED9
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
14
Overview of Cisco 1000 Series Integrated Services Routers
LED Indicators

Cisco C1121 8PLTEPW Series Specifications

General

LAN Ports	8
LTE Support	Yes
Integrated Power over Ethernet (PoE)	Yes
Form Factor	Desktop
Product Type	Router
Connectivity Technology	Wired, Wireless
Frequency Band	2.4 GHz, 5 GHz
Wireless Protocol	802.11a/b/g/n/ac
Product Series	C1121
Model	C1121-8PLTEPW
Device Type	Wireless router
Wireless LAN	Yes
Flash Memory	4 GB
DRAM Memory	4 GB
Operating System	Cisco IOS XE
WAN Ports	1
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Interfaces	1 x WAN - RJ-45, 8 x LAN - RJ-45
Features	Firewall protection, VPN support, VLAN support, Quality of Service (QoS), IPv6 support
