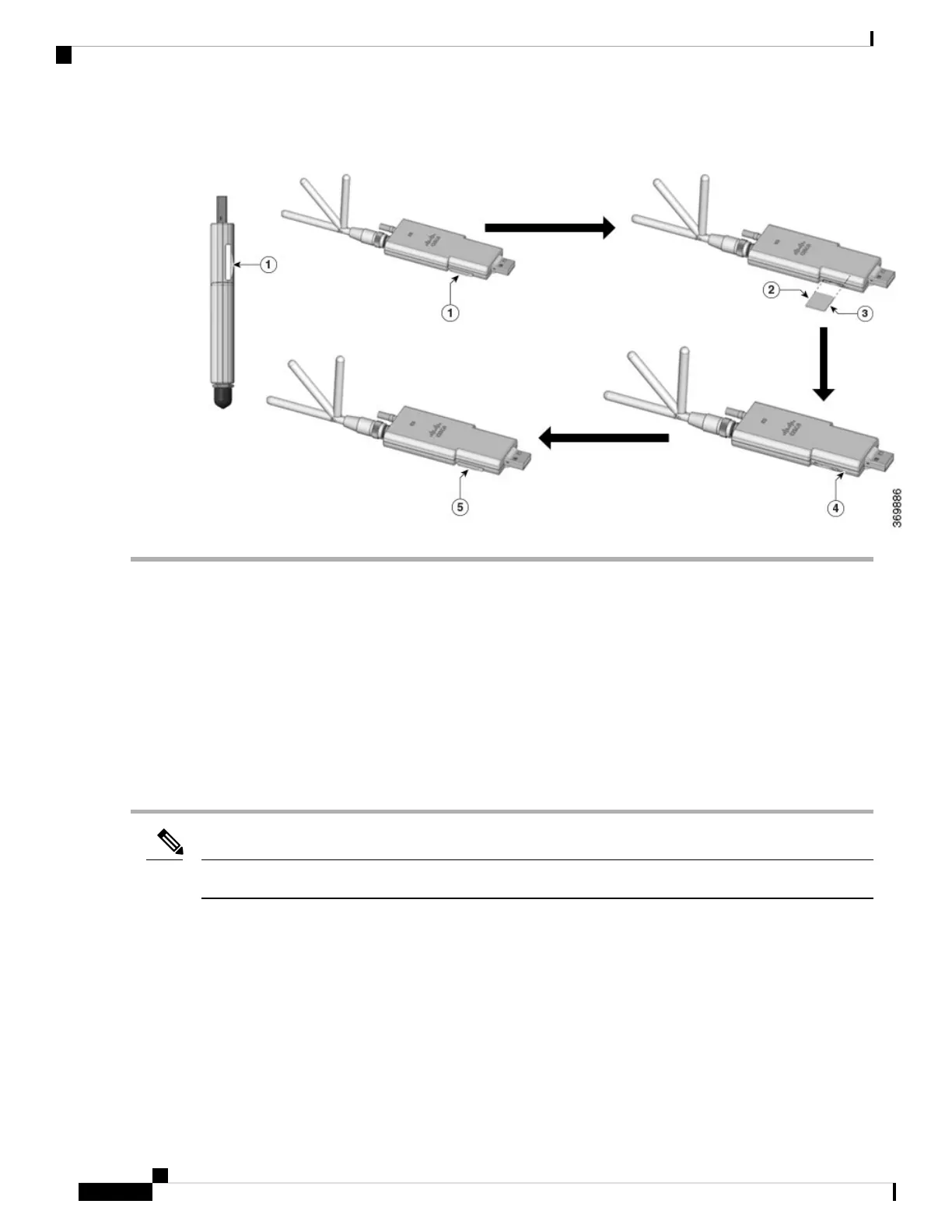

Figure 54: Micro-SIM Card Slot with Dust Cover
Step 1 To insert a micro-SIM card into a USB LTE dongle, do these steps:
a. Tap open the micro-SIM protective cap on the USB dongle, gently insert the micro-SIM card with its edge oriented
as shown in the figure until the SIM is seated in the socket.
b. Tap close the micro-SIM protective cap on the USB to close the slot.
Step 2 To remove a micro-SIM card into a USB LTE dongle, do these steps:
a. Tap open the dust cover, and then gently push the micro-SIM card to eject the card from the SIM slot.
b. Tap close the micro-SIM protective cap on the USB to close the slot.
The antenna orientation may need to be adjusted for optimal performance.
Note
Perform the following steps to insert the USB LTE dongle with the SIM card into a horizontal slot on the rear
panel of a C110x series router:
1. Ensure the micro-SIM is installed in the LTE USB dongle.
2. Plug the LTE USB dongle into the magnet holder.
3. Attach the magnet holder into the USB port on the metal front panel of C1101-4P.
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
58
Install and Upgrade Internal Modules and Field Replaceable Units
Install a Micro-SIM Card onto a USB LTE Dongle

Cisco C1121 8PLTEPW Series Specifications

General

LAN Ports	8
LTE Support	Yes
Integrated Power over Ethernet (PoE)	Yes
Form Factor	Desktop
Product Type	Router
Connectivity Technology	Wired, Wireless
Frequency Band	2.4 GHz, 5 GHz
Wireless Protocol	802.11a/b/g/n/ac
Product Series	C1121
Model	C1121-8PLTEPW
Device Type	Wireless router
Wireless LAN	Yes
Flash Memory	4 GB
DRAM Memory	4 GB
Operating System	Cisco IOS XE
WAN Ports	1
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Interfaces	1 x WAN - RJ-45, 8 x LAN - RJ-45
Features	Firewall protection, VPN support, VLAN support, Quality of Service (QoS), IPv6 support
