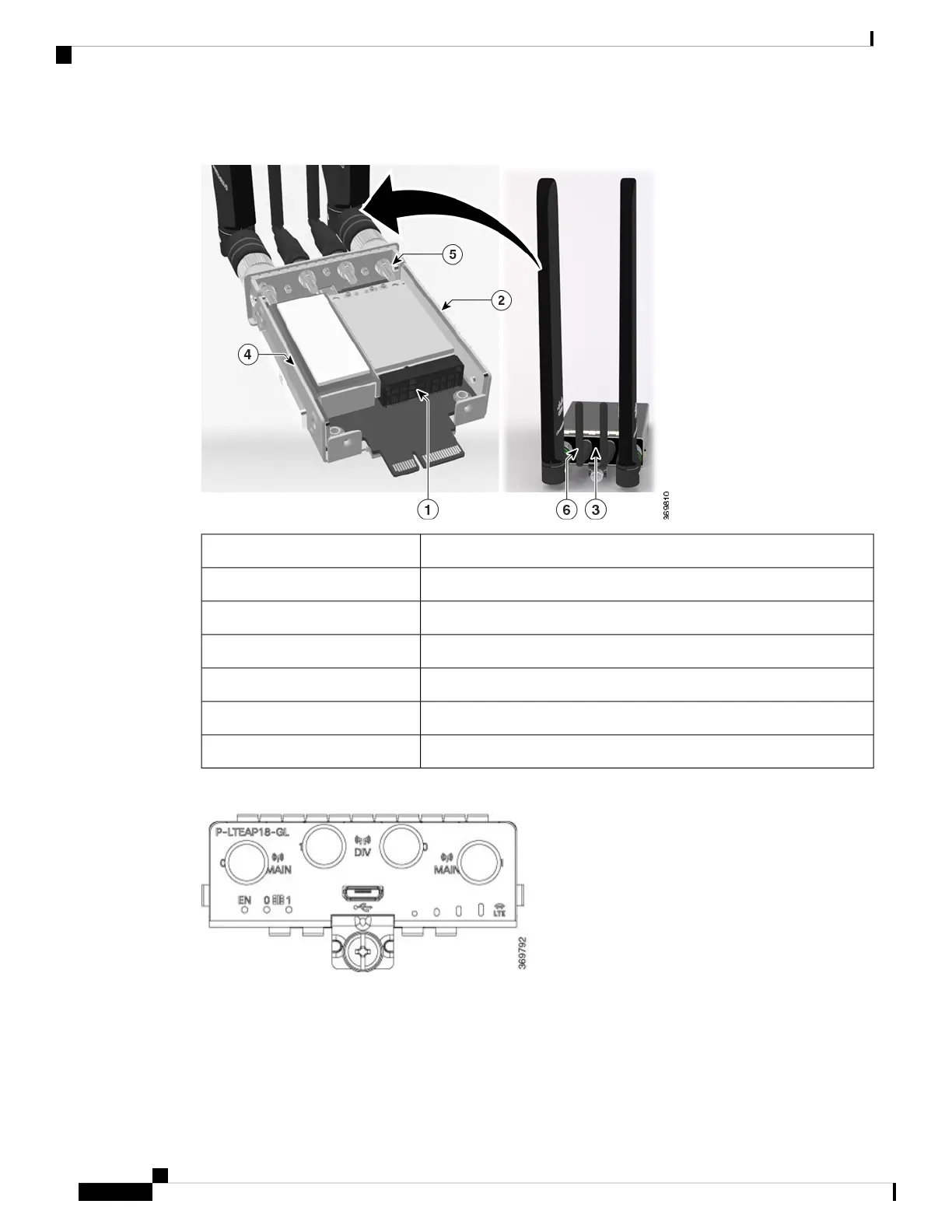

Figure 58: LTE Pluggable - C1118-8PLTEP
DescriptionItem
Mini-PCIE1
Common heat spreader + thermal interface2
I/O3
Enclosure base to support 4-antenna4
4-1 SMA-MHF4 cable assembly5
SMA Diversity Antenna for usability and Micro-USB port access6
Figure 59: LTE Pluggable - C1118-8PLTEP Back Panel
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
62
Install and Upgrade Internal Modules and Field Replaceable Units
Install an LTE Pluggable Module on a C1101-4P
