3-33
Cisco UCS C240 M4 Server Installation and Service Guide
OL-32474-01
Chapter 3 Maintaining the Server
Installing or Replacing Server Components
The two slots on the bracket must slide down over the pegs at the same time that you push the card
into the motherboard socket.
c. Gently press down on both top corners of the metal bracket to seat the card into the socket on the
motherboard.

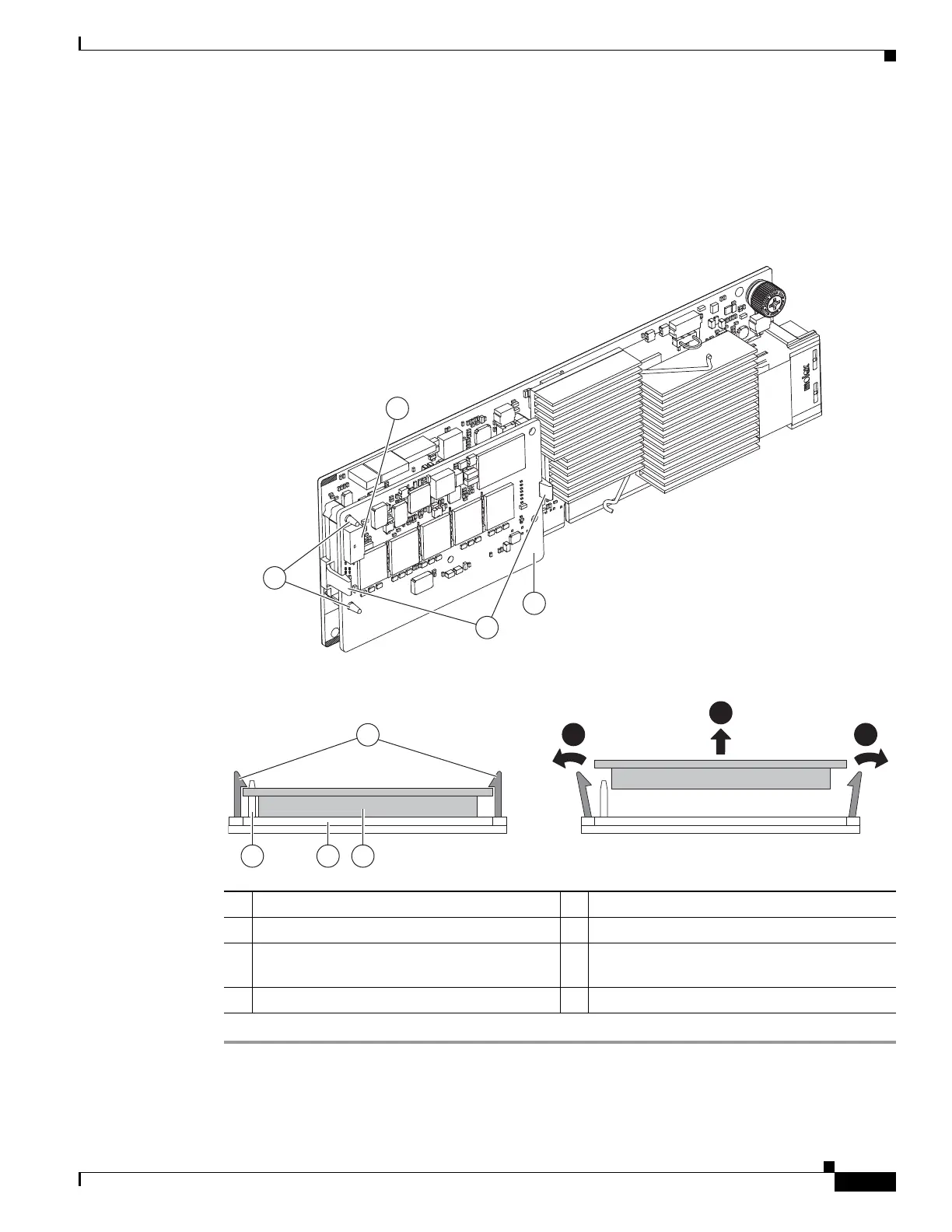

Figure 3-18 TMM on Modular RAID Controller Card
1 TMM on modular RAID card 5 Side view, guide peg
2 Securing bracket clips 6 Side view, socket on modular RAID card
3 Guide pegs on bracket protruding through
guide holes on TMM
7 Side view, connector on underside of TMM
4 SCPM cable connector on TMM 8 Side view, securing clips
304945
4
1
65 7
3
2
8
1 1
2
