Mounting the Switch Using Rack Mount Brackets
Before you begin
Ensure you have the following:
• 19-Inch Rack Mounting Brackets (RACKMNT-19-CMPCT)
• 10-32 Phillips flat-head screws
• Number-12 or number-10 Phillips machine screws
• Phillips screwdriver
Procedure
Step 1 Secure the brackets to the switch by attaching one Phillips flat-head screws on each side of the switch.

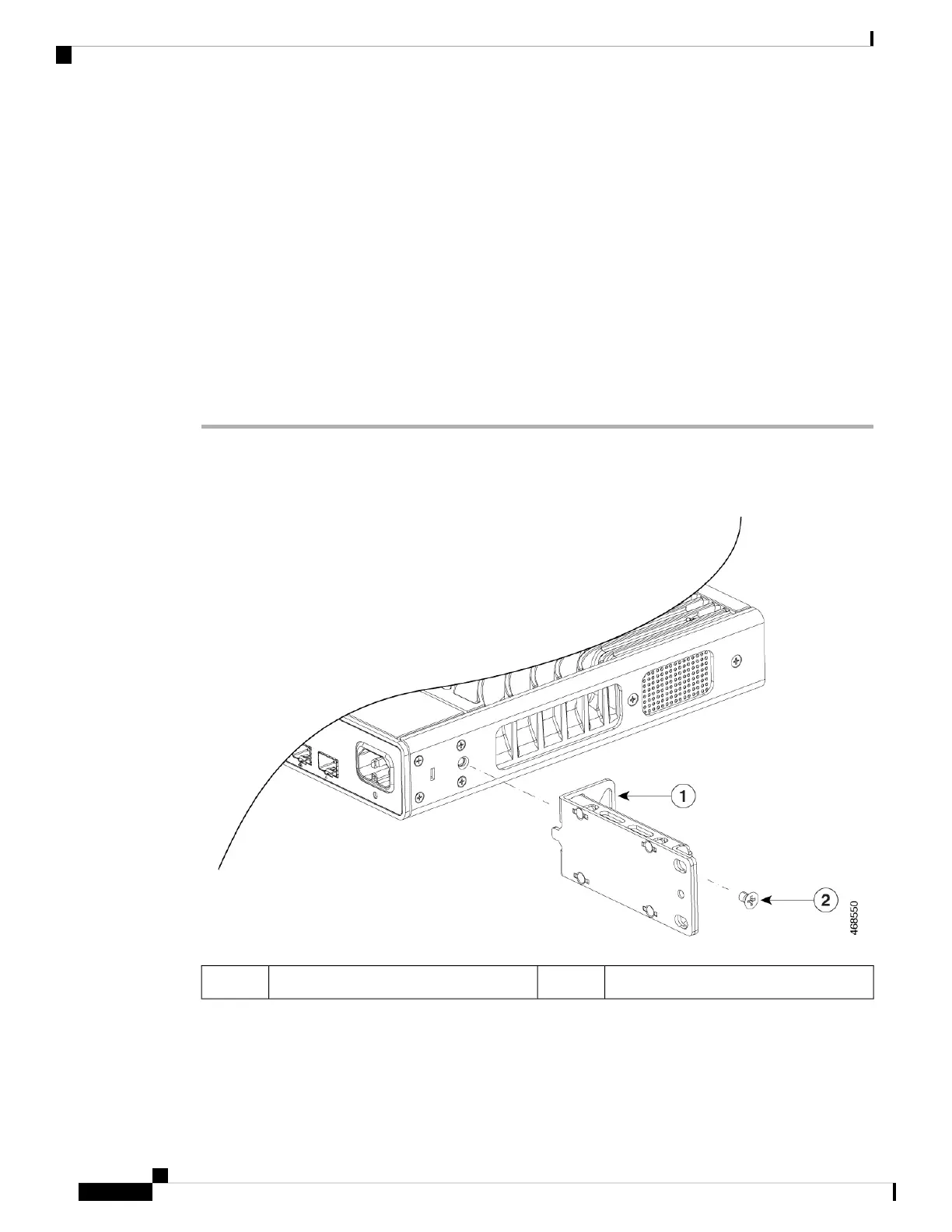

Figure 15: Attaching Brackets for 19-inch Racks
10-32 Phillips flat-head screws219-inch rack-mounting bracket1
Step 2 Secure the brackets to the rack by attaching the supplied Phillips machine screws, two screws on each sides.
Cisco Catalyst 9200CX Compact Series Switches Hardware Installation Guide
34
Installing a Compact Switch
Mounting the Switch Using Rack Mount Brackets
