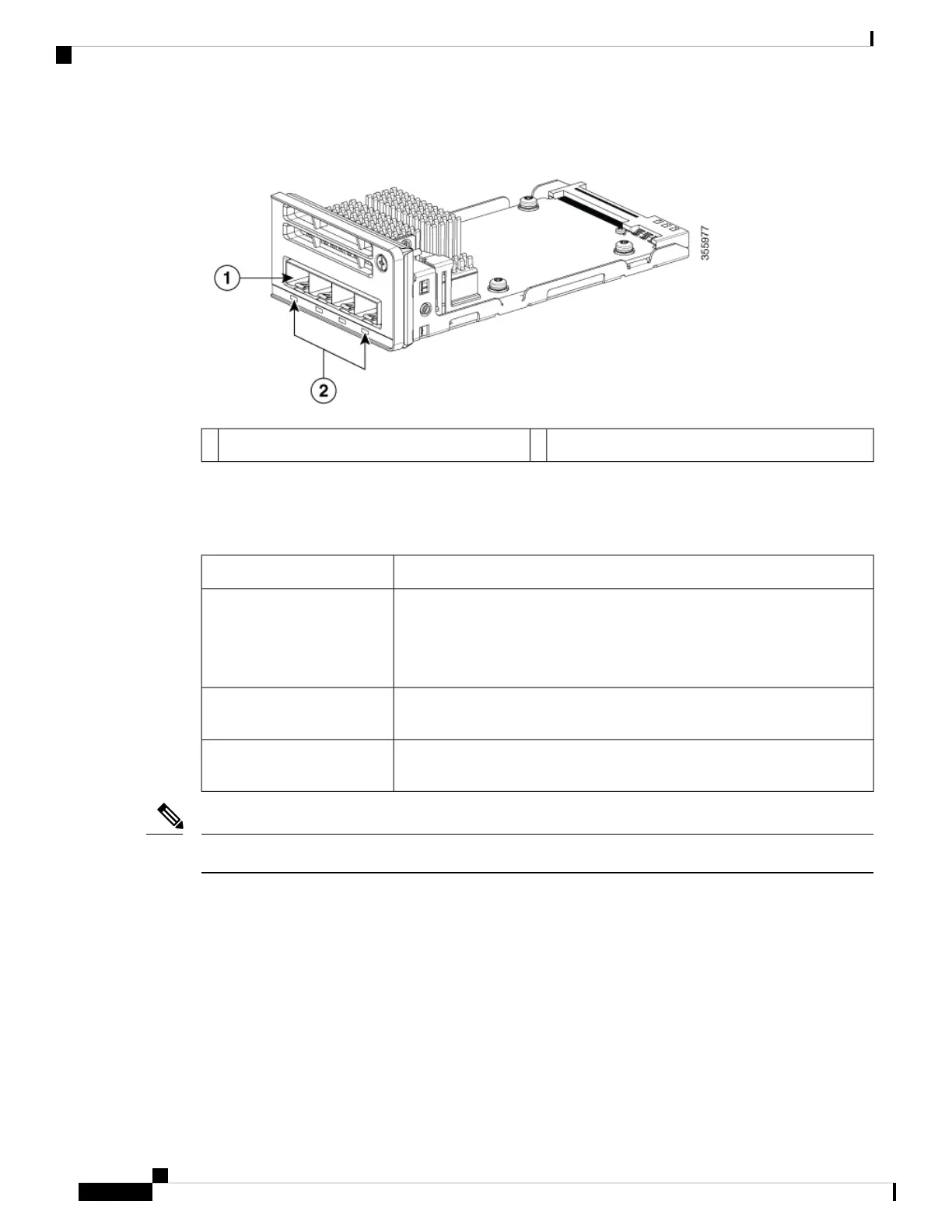

Figure 4: Network Module C9200-NM-4G
Module slots2LEDs1
The following table lists the optional Cisco Catalyst 9200 Series Switches uplink network modules with
1-Gigabit and 10-Gigabit slots.
Table 3: Supported Network Modules
DescriptionNetwork Module
This module has four 1G SFP module slots. Any combination of standard
SFP modules are supported. SFP+ modules are not supported.
If you insert an SFP+ module in the 1G network module, the SFP+ module
does not operate, and the switch logs an error message.
C9200-NM-4G
This module has four 10G SFP module slots. Each port supports a 1G or 10G
connection. Any combination of standard SFP modules are supported.
C9200-NM-4X
Insert this blank module when the switch has no uplink ports (this is required
for sufficient air flow).
C9300-NM-BLANK
For information about installing a network module, see Installing a Network Module, on page 32.
Note
Rear Panel
The switch rear panel includes StackWise connectors, fan modules, and power supply modules.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
6
Product Overview
Rear Panel

Cisco C9200L-24T-4X Specifications

General

Model	C9200L-24T-4X
Device Type	Switch
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Switching Capacity	128 Gbps
Forwarding Rate	95.23 Mpps
DRAM	4 GB
Flash Memory	4 GB
Power Device	Internal power supply
Ports	24 x 10/100/1000
Uplink Interfaces	4 x 10 Gigabit SFP+
MAC Address Table Size	16, 000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, BGP, EIGRP, RIP
Remote Management Protocol	SNMP 1, SNMP 2, SNMP 3, RMON, SSH, Telnet, HTTP, HTTPS
Features	VLAN support, Quality of Service (QoS), ACL support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae
Voltage Required	AC 120/230 V (50 - 60 Hz)
Stacking	Stackable
Operating Temperature	32 to 104°F (0 to 40°C)
