Step 6 In the Management Details section, type an IP address to identify the SNMP server. SNMPv1, SNMPv2,
and SNMPv3 are supported on your device.
Step 7 Specify the SNMP community string to permit access to the SNMP protocol.

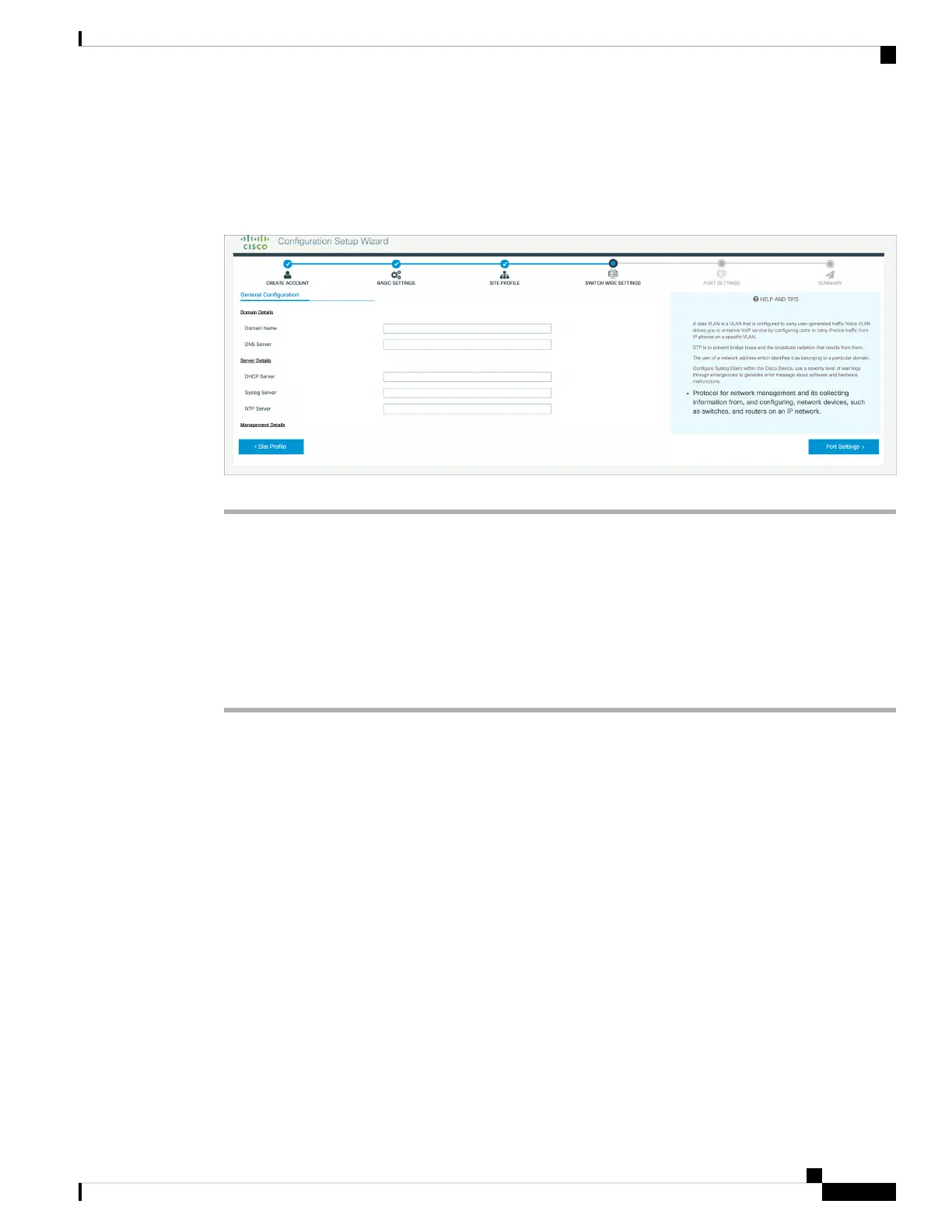

Figure 43: DHCP, NTP, DNS and SNMP Settings
What to do next
Configure port settings.
Configuring Port Settings
Procedure
Step 1 Based on the site profile chosen in the earlier step which is displayed in the left-pane, select the Port Role
from among the following options:
• Uplink – For connecting to devices towards the core of the network.
• Downlink – For connecting to devices further down in the network topology.
• Access – For connecting guest devices that are VLAN-unaware.
Step 2 Choose an option from the Select Switch drop-down list.
Step 3 Make selections from the Available list of interfaces based on how you want to enable them and move them
to the Enabled list.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
61
Configuring the Switch
Configuring Port Settings

Cisco C9200L-24T-4X Specifications

General

Model	C9200L-24T-4X
Device Type	Switch
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Switching Capacity	128 Gbps
Forwarding Rate	95.23 Mpps
DRAM	4 GB
Flash Memory	4 GB
Power Device	Internal power supply
Ports	24 x 10/100/1000
Uplink Interfaces	4 x 10 Gigabit SFP+
MAC Address Table Size	16, 000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, BGP, EIGRP, RIP
Remote Management Protocol	SNMP 1, SNMP 2, SNMP 3, RMON, SSH, Telnet, HTTP, HTTPS
Features	VLAN support, Quality of Service (QoS), ACL support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae
Voltage Required	AC 120/230 V (50 - 60 Hz)
Stacking	Stackable
Operating Temperature	32 to 104°F (0 to 40°C)
